Hafele System 10 MF FitSet 1Dr Out 50kg
Product Code: 401.19.003
Hafele System 10 MF FitSet 1Dr Out 50kg
Product Code: 401.19.003
4 In stock
£60.00
Ex. VAT: £50.00
This product is part of a range with 3 options. Select to view the matching variant.
- Products Description
- Technical Specifications
- Dimensions
For door thickness: 19 – 32 mm
Running gear guided by: Ball bearing
Area of application: Mixfront cabinet doors
Material/finish: Zinc alloy, Plastic
Running position: Top
Adjustment facility: Height adjustment ± 3 mm
Door processing: For screw fixing
Hafele Lifetime Guarantee: 10 years
Set: Set without tracks
Order reference: System 10 tracks and bottom guide profiles to be ordered separately

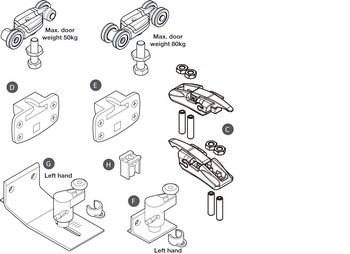

Supplied with: 2x Track stoppers, reversible buffer, adjustable retaining force, black plastic2x Trolley hangers for internal doors, screw fixing with ball bearing mounted nylon rollers, adjustable, nickel plated alloy2x Trolley hangers for external doors, screw fixing with ball bearing mounted nylon rollers, adjustable, nickel plated alloy1 pair Guide for outer door, screw fixing, left and right handed, zinc alloy base plate2x Guide stopper, for bottom guide channel, black plastic and fixings
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
Running gear guided by: Ball bearing
Area of application: Mixfront cabinet doors
Material/finish: Zinc alloy, Plastic
Running position: Top
Adjustment facility: Height adjustment ± 3 mm
Door processing: For screw fixing
Hafele Lifetime Guarantee: 10 years
Set: Set without tracks
Order reference: System 10 tracks and bottom guide profiles to be ordered separately
Supplied with: 2x Track stoppers, reversible buffer, adjustable retaining force, black plastic2x Trolley hangers for internal doors, screw fixing with ball bearing mounted nylon rollers, adjustable, nickel plated alloy2x Trolley hangers for external doors, screw fixing with ball bearing mounted nylon rollers, adjustable, nickel plated alloy1 pair Guide for outer door, screw fixing, left and right handed, zinc alloy base plate2x Guide stopper, for bottom guide channel, black plastic and fixings
Warranty/Guarantee information: This product is covered by the Häfele Lifetime Guarantee
| Adjustment facility | Height adjustment ± 3 mm |
| Area of application | Mixfront cabinet doors |
| Door processing | For screw fixing |
| Hafele Lifetime Guarantee | 10 years |
| Material/finish | Zinc alloy, Plastic |
| Order reference | System 10 tracks and bottom guide profiles to be ordered separately |
| Running gear guided by | Ball bearing |
| Running position | Top |
| Set | Set without tracks |
| Warranty/Guarantee information | This product is covered by the Häfele Lifetime Guarantee |
| Supplied with | 2x Track stoppers, reversible buffer, adjustable retaining force, black plastic2x Trolley hangers for internal doors, screw fixing with ball bearing mounted nylon rollers, adjustable, nickel plated alloy2x Trolley hangers for external doors, screw fixing with ball bearing mounted nylon rollers, adjustable, nickel plated alloy1 pair Guide for outer door, screw fixing, left and right handed, zinc alloy base plate2x Guide stopper, for bottom guide channel, black plastic and fixings |
| For door thickness | 19 – 32 mm |
