Planofit Fitting Set White - Zinc AlloyPlastic
Product Code: 407.90.709
Planofit Fitting Set White - Zinc AlloyPlastic
Product Code: 407.90.709
340 In stock
£9.34
Ex. VAT: £7.78
This product is part of a range with 2 options. Select to view the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 5 | £9.34 | — |
| 6+ | £8.30 | Save 11% |
- Products Description
- Technical Specifications
- Dimensions
Area of application: Ideal for large, heavy sliding doors
For door thickness: ≥16 mm
Material: Zinc alloyPlastic
Installation: 1. The threaded rod is inserted into the trim strip and 2 x U-washers and a hexagonal nut is attached to both sides of it2. The pre-mounted rod is then inserted into the groove3. The tensioners are inserted into the boss drilling job and fixed with screws4. Screw fix the retaining plates5. The door can now be aligned using the tensioners with an open ended SW10 wrench6. Position the cover caps on the tensioners
Order reference: Threaded rod and trim strip set to be ordered separately

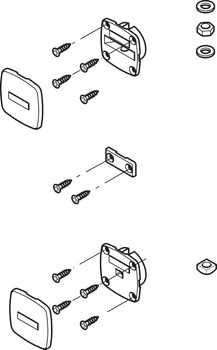

Supplied with: 2x Tensioners1x Hexagonal nut2x Securing washers1x Square nut2x Cover caps for tensioners4x Retaining plates
For door thickness: ≥16 mm
Material: Zinc alloyPlastic
Installation: 1. The threaded rod is inserted into the trim strip and 2 x U-washers and a hexagonal nut is attached to both sides of it2. The pre-mounted rod is then inserted into the groove3. The tensioners are inserted into the boss drilling job and fixed with screws4. Screw fix the retaining plates5. The door can now be aligned using the tensioners with an open ended SW10 wrench6. Position the cover caps on the tensioners
Order reference: Threaded rod and trim strip set to be ordered separately
Supplied with: 2x Tensioners1x Hexagonal nut2x Securing washers1x Square nut2x Cover caps for tensioners4x Retaining plates
Product Specifications
| Installation | 1. The threaded rod is inserted into the trim strip and 2 x U-washers and a hexagonal nut is attached to both sides of it2. The pre-mounted rod is then inserted into the groove3. The tensioners are inserted into the boss drilling job and fixed with screws4. Screw fix the retaining plates5. The door can now be aligned using the tensioners with an open ended SW10 wrench6. Position the cover caps on the tensioners |
| Material | Zinc alloyPlastic |
| Area of application | Ideal for large, heavy sliding doors |
| Order reference | Threaded rod and trim strip set to be ordered separately |
| Supplied with | 2x Tensioners1x Hexagonal nut2x Securing washers1x Square nut2x Cover caps for tensioners4x Retaining plates |
| For door thickness | ≥16 mm |
