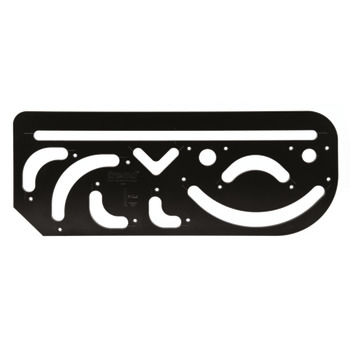

Trend Aperture Radius Jig
Product Code: 000.00.560
Trend Aperture Radius Jig
Product Code: 000.00.560
1 In stock
£189.98
Ex. VAT: £158.32
- Products Description
- Technical Specifications
Product Category: Radius Jig
Area of application: A jig to rout out apertures, recesses and radii in work tops to fit a range of sinks and hobs, and to suit curved cabinets
Version: Will cut both an internal and external radiius with the use of either pins or engraved sight linesWill cut a 90° angle, which when combined with the straight slot will allow a hob or sink aperture to be routed. Central slot allows cuts up to 820 mm longRadius curves at 40 mm, 60 mm, 80 mm, 100 mm, 150 mm and 250 mm, and has external radii of 50 mm, 100 mm and 200 mmJig has a 45° end cut , plus 26 mm and 35 mm cabinet door hinge recess facilityEngraved lines to position jig to marked position on the worktopEach of the six radius curves is paired with a set of peg holes that will set the jig to work top edgeCNC-machined compact grade HPL with ABS plastic pinsRequires: A portable plunge router with 12.7 mm (1/2 inch) shank capacity and minimum 1300 watts, template guide bush with 30 mm outside diameter, TCT router cutter with 12.7 mm (1/2 inch) diameter and 50 mm (2 inch) cut length, and 2x clamps
Area of application: A jig to rout out apertures, recesses and radii in work tops to fit a range of sinks and hobs, and to suit curved cabinets
Version: Will cut both an internal and external radiius with the use of either pins or engraved sight linesWill cut a 90° angle, which when combined with the straight slot will allow a hob or sink aperture to be routed. Central slot allows cuts up to 820 mm longRadius curves at 40 mm, 60 mm, 80 mm, 100 mm, 150 mm and 250 mm, and has external radii of 50 mm, 100 mm and 200 mmJig has a 45° end cut , plus 26 mm and 35 mm cabinet door hinge recess facilityEngraved lines to position jig to marked position on the worktopEach of the six radius curves is paired with a set of peg holes that will set the jig to work top edgeCNC-machined compact grade HPL with ABS plastic pinsRequires: A portable plunge router with 12.7 mm (1/2 inch) shank capacity and minimum 1300 watts, template guide bush with 30 mm outside diameter, TCT router cutter with 12.7 mm (1/2 inch) diameter and 50 mm (2 inch) cut length, and 2x clamps
| Area of application | A jig to rout out apertures, recesses and radii in work tops to fit a range of sinks and hobs, and to suit curved cabinets |
| Product Category | Radius Jig |
| Version | Will cut both an internal and external radiius with the use of either pins or engraved sight linesWill cut a 90° angle, which when combined with the straight slot will allow a hob or sink aperture to be routed. Central slot allows cuts up to 820 mm longRadius curves at 40 mm, 60 mm, 80 mm, 100 mm, 150 mm and 250 mm, and has external radii of 50 mm, 100 mm and 200 mmJig has a 45° end cut , plus 26 mm and 35 mm cabinet door hinge recess facilityEngraved lines to position jig to marked position on the worktopEach of the six radius curves is paired with a set of peg holes that will set the jig to work top edgeCNC-machined compact grade HPL with ABS plastic pinsRequires: A portable plunge router with 12.7 mm (1/2 inch) shank capacity and minimum 1300 watts, template guide bush with 30 mm outside diameter, TCT router cutter with 12.7 mm (1/2 inch) diameter and 50 mm (2 inch) cut length, and 2x clamps |
