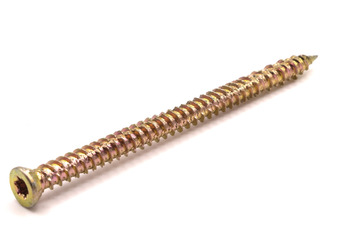

Masonary Frm Screw Countersunk T30 D7.5x132mm Glv
Product Code: 019.10.329
Masonary Frm Screw Countersunk T30 D7.5x132mm Glv
Product Code: 019.10.329
Out of Stock
Back in stock: 13/10/2026
£15.01
Ex. VAT: £12.51
This product is part of a range with 12 options. Select to view the matching variant.
- Products Description
- Technical Specifications
Thread Ø: 7.50 mm
Area of application: Suitable substrates: concrete, wood, and solid brickFor use with a T30 drive bit
Version: The screw will cut its own thread into the substrate once a pilot hole has been pre-drilled. There is no need for any additional plugs11 mm countersunk head60 mm spacing and edge distance recommendedRecommended minimum hole size: 6 mmRecommended loads vary with substrate type, quality, and consistency. We would always recommend your engineer to test the product locally if a structural fixings is necessaryAll steel: non-flammable fixing does not contribute to the risk of fire
Area of application: Suitable substrates: concrete, wood, and solid brickFor use with a T30 drive bit
Version: The screw will cut its own thread into the substrate once a pilot hole has been pre-drilled. There is no need for any additional plugs11 mm countersunk head60 mm spacing and edge distance recommendedRecommended minimum hole size: 6 mmRecommended loads vary with substrate type, quality, and consistency. We would always recommend your engineer to test the product locally if a structural fixings is necessaryAll steel: non-flammable fixing does not contribute to the risk of fire
| Area of application | Suitable substrates: concrete, wood, and solid brickFor use with a T30 drive bit |
| Thread Ø | 7.50 mm |
| Version | The screw will cut its own thread into the substrate once a pilot hole has been pre-drilled. There is no need for any additional plugs11 mm countersunk head60 mm spacing and edge distance recommendedRecommended minimum hole size: 6 mmRecommended loads vary with substrate type, quality, and consistency. We would always recommend your engineer to test the product locally if a structural fixings is necessaryAll steel: non-flammable fixing does not contribute to the risk of fire |
