Single Fire Pocket Door Kit - - 100mm Finished Wall Thickness - 914 x 1981mm Door Size - Galvanised Steel

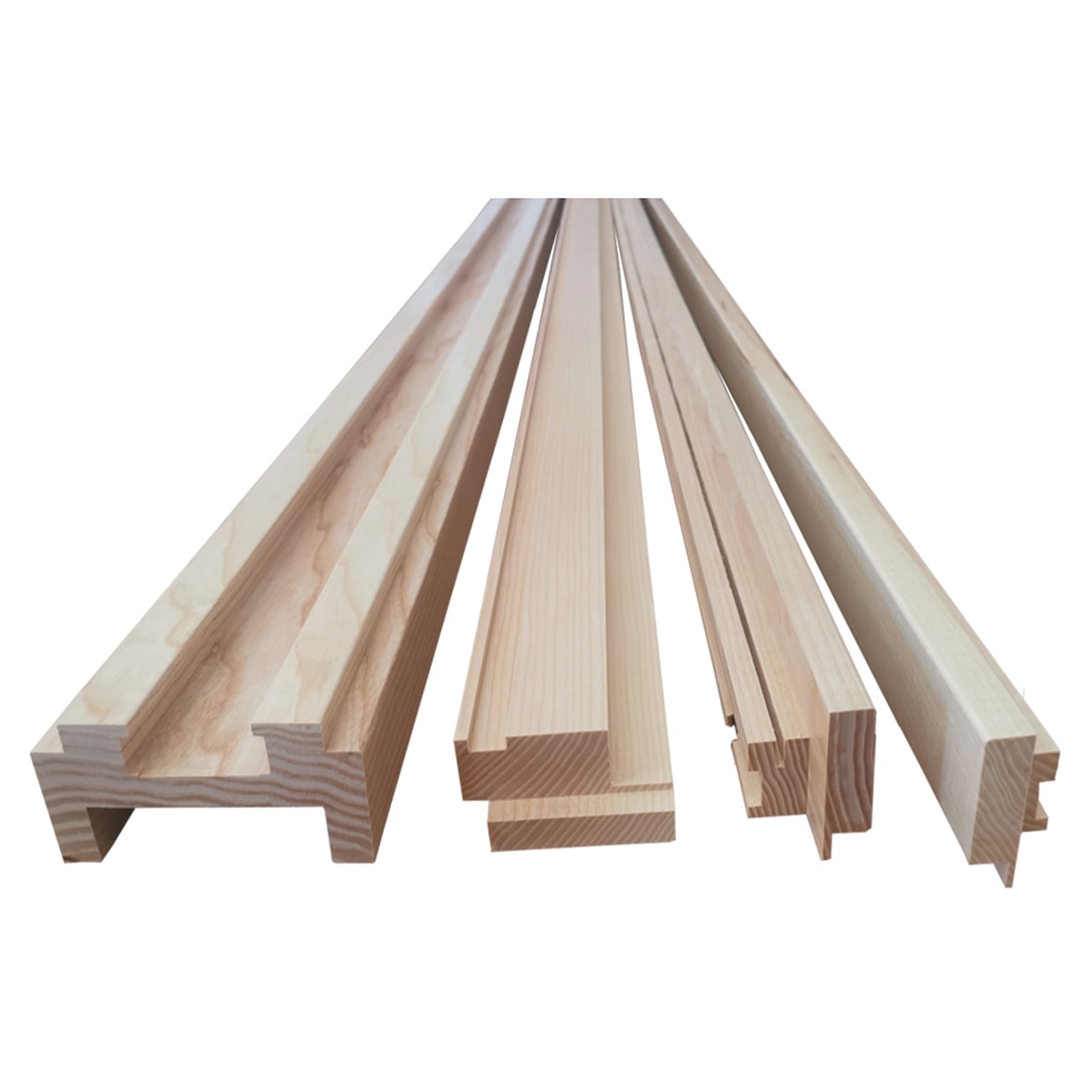

The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
Fully tested and approved by International Fire Consultants PAR/10057/01 Revision G
Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate.
Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
Requires 15 x 4mm Intumescent strips, supplied with jambs

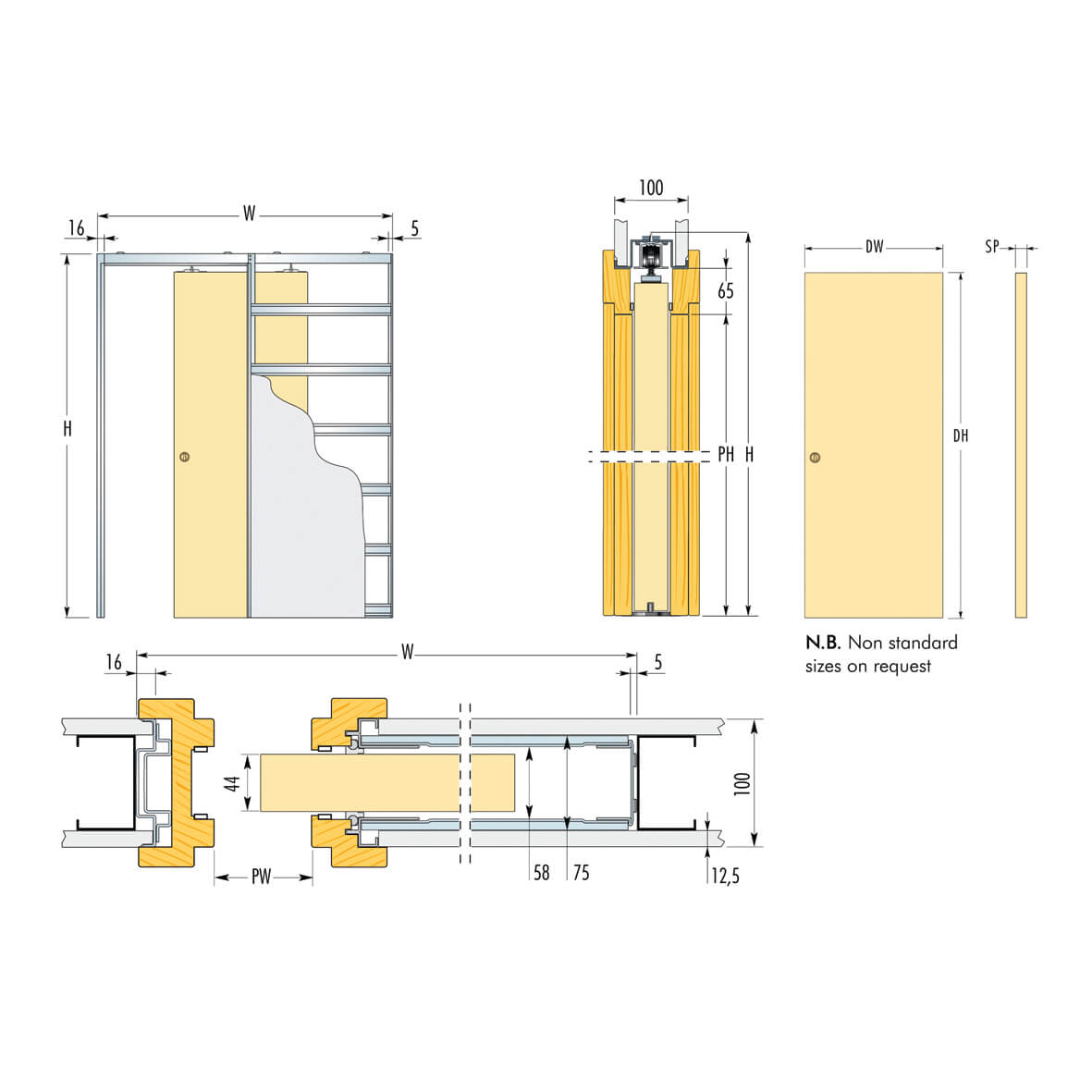

Frame is 75mm and requires one layer of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 100mm
Runners are tested to 100,000 cycles, approximately 25 years on average use

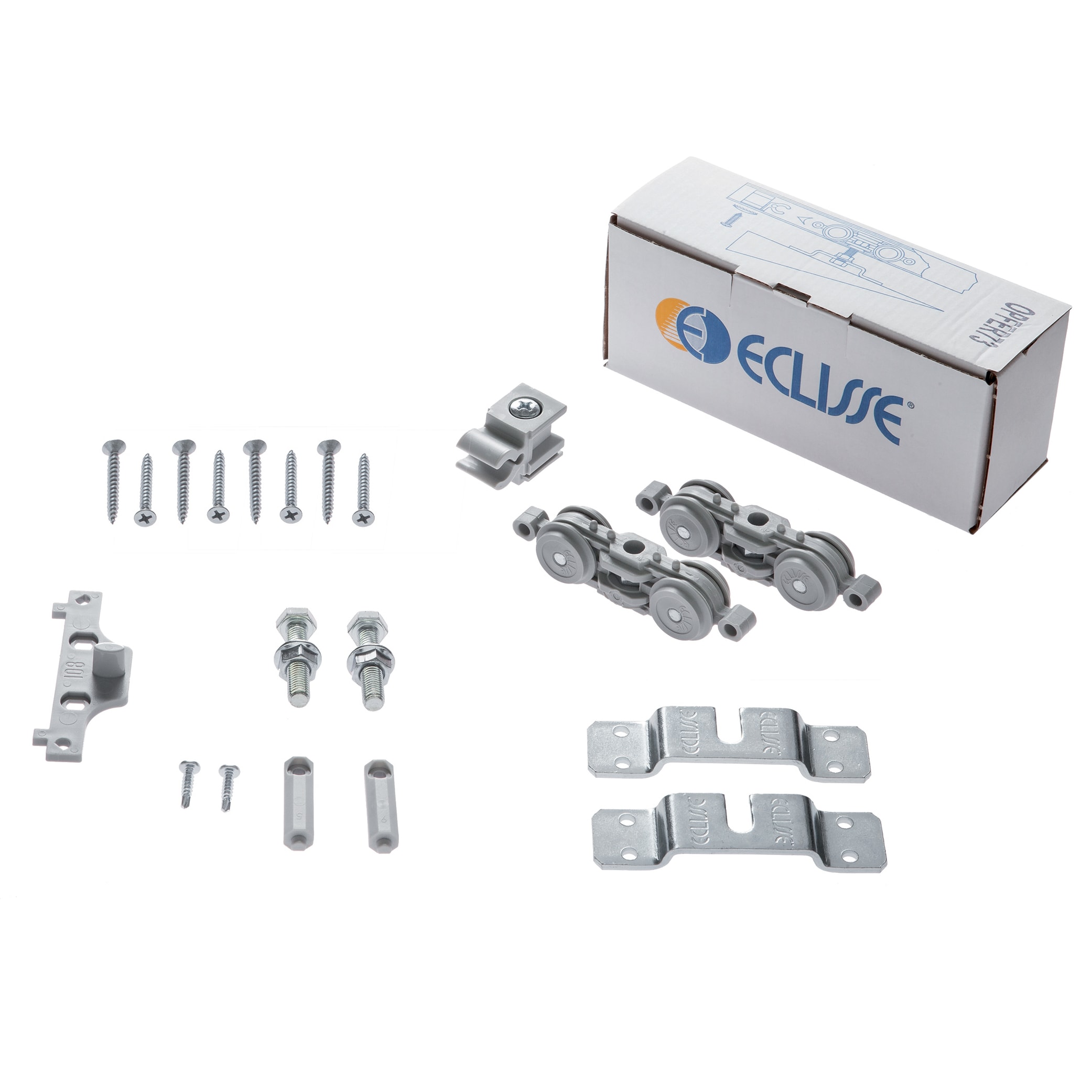

Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave with white intumescent strips
Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
To be installed at finished floor level
15 year guarantee
