DIN Mortice Nightlatch - 88mm Case - 60mm Backset - Square - Satin Stainless Steel - Mild Steel
Product Code: 603236P
DIN Mortice Nightlatch - 88mm Case - 60mm Backset - Square - Satin Stainless Steel - Mild Steel
Product Code: 603236P
1 In stock
£23.54
Ex. VAT: £19.62
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications

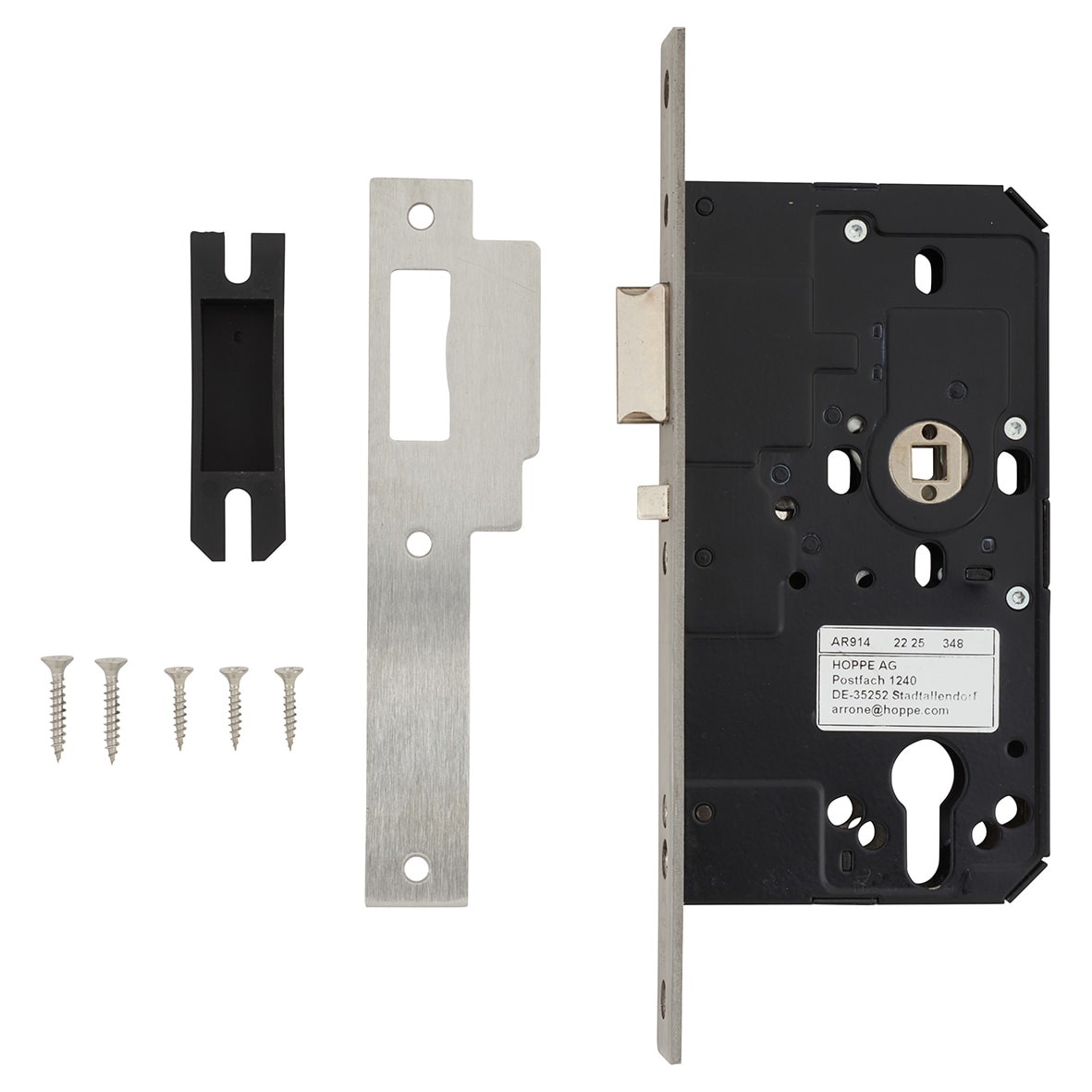

Arrone AR914 DIN nightlatch designed for commercial and public buildings; durability and fire safety
Square profile DIN nightlatch suitable for wooden doors
Suitable for use with half lever sets
60mm backset
78mm centres
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Reversible latch with anti thrust operation
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors
Note this lock is not supplied with the cylinder fixing screw pozidrive countersunk M5 x 90mm
Radius version available
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Square profile DIN nightlatch suitable for wooden doors
Suitable for use with half lever sets
60mm backset
78mm centres
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Reversible latch with anti thrust operation
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors
Note this lock is not supplied with the cylinder fixing screw pozidrive countersunk M5 x 90mm
Radius version available
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Product Specifications
| Backset (mm) | 60mm |
| Bolt Through Fixing | Bolt Through Fixing |
| British Standard | Yes |
| Case Size (mm) | 88mm |
| CE Rated | CE Rated |
| Centres (mm) | 78mm |
| Certifire | Yes |
| Depth (mm) | 88mm |
| Equality Act Compliant | Equality Act Compliant |
| Finish | Satin Stainless Steel |
| Fire Rating | 30/60/90/120 & 240 |
| Height (mm) | 165mm |
| Length (mm) | 235mm |
| Material | Mild Steel |
| Pack Quantity | 1 |
| Suit Door Thickness (mm) | 44mm |
| Type | DIN Mortice Nightlatch |
| Finish Group | Stainless Steel |
| Profile | Square |
| Thickness (mm) | 16mm |
| Keyed Alike | Not Keyed Alike |
| Standards | BS EN 12209, BS EN 1634-1, BS 8300 |
| Secured by Design | No |
| UKCA Approved | Yes |
| Brand | Arrone |
| Guarantee | 10 Years |
