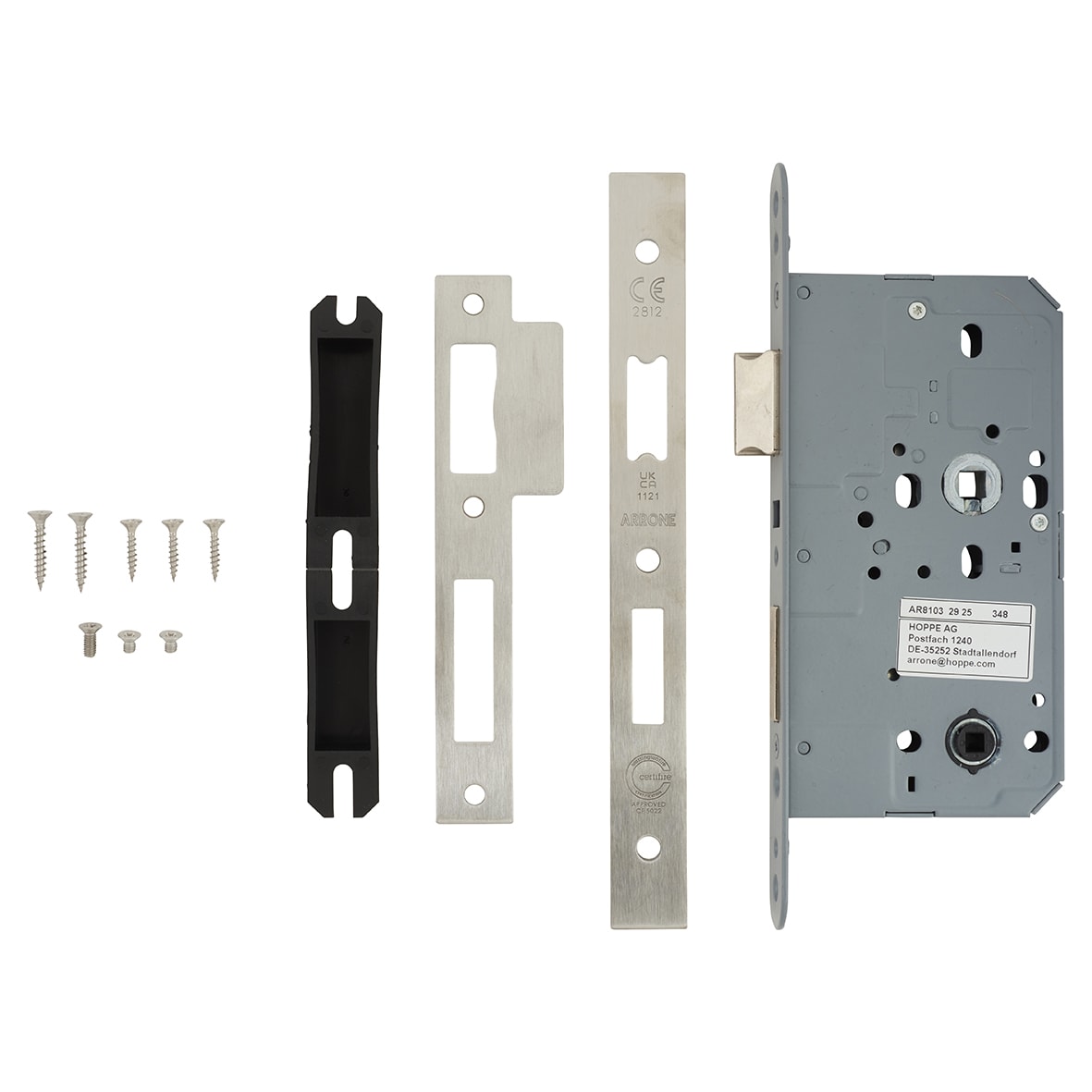

DIN Bathroom Lock - 88mm Case - 60mm Backset - Square - Satin Stainless Steel - Mild Steel
Product Code: 921156P
DIN Bathroom Lock - 88mm Case - 60mm Backset - Square - Satin Stainless Steel - Mild Steel
Product Code: 921156P
1 In stock
£18.72
Ex. VAT: £15.60
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Arrone AR8100 DIN bathroom lock designed for commercial and public buildings; durability and fire safety
Square profile DIN bathroom lock suitable for wooden doors
60mm backset
Double throw, 20mm projection deadbolt
72mm centres
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Reversible latch
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors
Radius version available
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Square profile DIN bathroom lock suitable for wooden doors
60mm backset
Double throw, 20mm projection deadbolt
72mm centres
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Reversible latch
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors
Radius version available
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Product Specifications
| Backset (mm) | 60mm |
| Bolt Through Fixing | Bolt Through Fixing |
| British Standard | Yes |
| Case Size (mm) | 88mm |
| CE Rated | CE Rated |
| Centres (mm) | 78mm |
| Certifire | Yes |
| Depth (mm) | 88mm |
| Equality Act Compliant | Equality Act Compliant |
| Finish | Satin Stainless Steel |
| Fire Rating | 30/60/90/120 & 240 |
| Height (mm) | 165mm |
| Length (mm) | 235mm |
| Material | Mild Steel |
| Pack Quantity | 1 |
| Suit Door Thickness (mm) | 44mm |
| Type | DIN Bathroom Lock |
| Finish Group | Stainless Steel |
| Profile | Square |
| Thickness (mm) | 16mm |
| Keyed Alike | Not Keyed Alike |
| Standards | BS EN 12209, BS EN 1634-1, BS 8300 |
| Secured by Design | No |
| UKCA Approved | Yes |
| Brand | Arrone |
| Guarantee | 10 Years |
