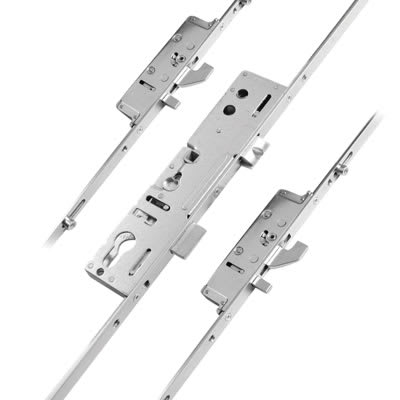

Lockmaster Multipoint Door Lock - 4 Roller 2 Hook & Anti-Lift Pin - 35mm Backset - 62/92mm c/c - Zinc
Product Code: 509576P
Lockmaster Multipoint Door Lock - 4 Roller 2 Hook & Anti-Lift Pin - 35mm Backset - 62/92mm c/c - Zinc
Product Code: 509576P
10 In stock
£97.27
Ex. VAT: £81.06
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £97.27 | — |
| 5+ | £100.11 | — |
- Products Description
- Technical Specifications
High security multipoint lock from the best selling Yale Lockmaster range
Suitable for uPVC and timber doors
2 hooks for anti-separation
4 rollers for effective weather sealing
Anti-lift pins prevent the door being lifted off its hinges to gain access
Dual spindle function - can be used with offset door handles, and means access from the outside can only be gained by key entry
16mm faceplate
7 locking points
Top Bolt 1: 550mm
Top Bolt 2: 720mm
Top Bolt 3: 851mm
Bottom Bolt 1: 625mm
Bottom Bolt 2: 770mm
Bottom Bolt 3: 884mm
Length: 2200mm
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
Suitable for uPVC and timber doors
2 hooks for anti-separation
4 rollers for effective weather sealing
Anti-lift pins prevent the door being lifted off its hinges to gain access
Dual spindle function - can be used with offset door handles, and means access from the outside can only be gained by key entry
16mm faceplate
7 locking points
Top Bolt 1: 550mm
Top Bolt 2: 720mm
Top Bolt 3: 851mm
Bottom Bolt 1: 625mm
Bottom Bolt 2: 770mm
Bottom Bolt 3: 884mm
Length: 2200mm
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
Product Specifications
| Application | uPVC/Timber |
| Backset (mm) | 35mm |
| British Standard | Yes |
| Centres (mm) | 62/92mm |
| Faceplate (mm) | 16mm |
| Length (mm) | 2200mm |
| Material | Zinc |
| Option | Euro Profile |
| Pack Quantity | 1 |
| Range | Lockmaster |
| Type | Lock |
| Bottom Bolt 1 (mm) | 625mm |
| Bottom Bolt 2 (mm) | 770mm |
| Standards | BS EN 1670 Grade 4 (240 hours) |
| Cut to Size | Can be Cut to Size |
| Deadbolt | 1 |
| Keeps Included | No |
| Locking Points | 7 |
| Secured by Design | Secured by Design |
| Spindle | Dual |
| Hook Bolt | 2 |
| Roller | 4 |
| Top Bolt 1 (mm) | 550mm |
| Shoot Bolt | 0 |
| Top Bolt 2 (mm) | 720mm |
| Mushroom Cam | 0 |
| Brand | Yale |
| Guarantee | 10 Years |
