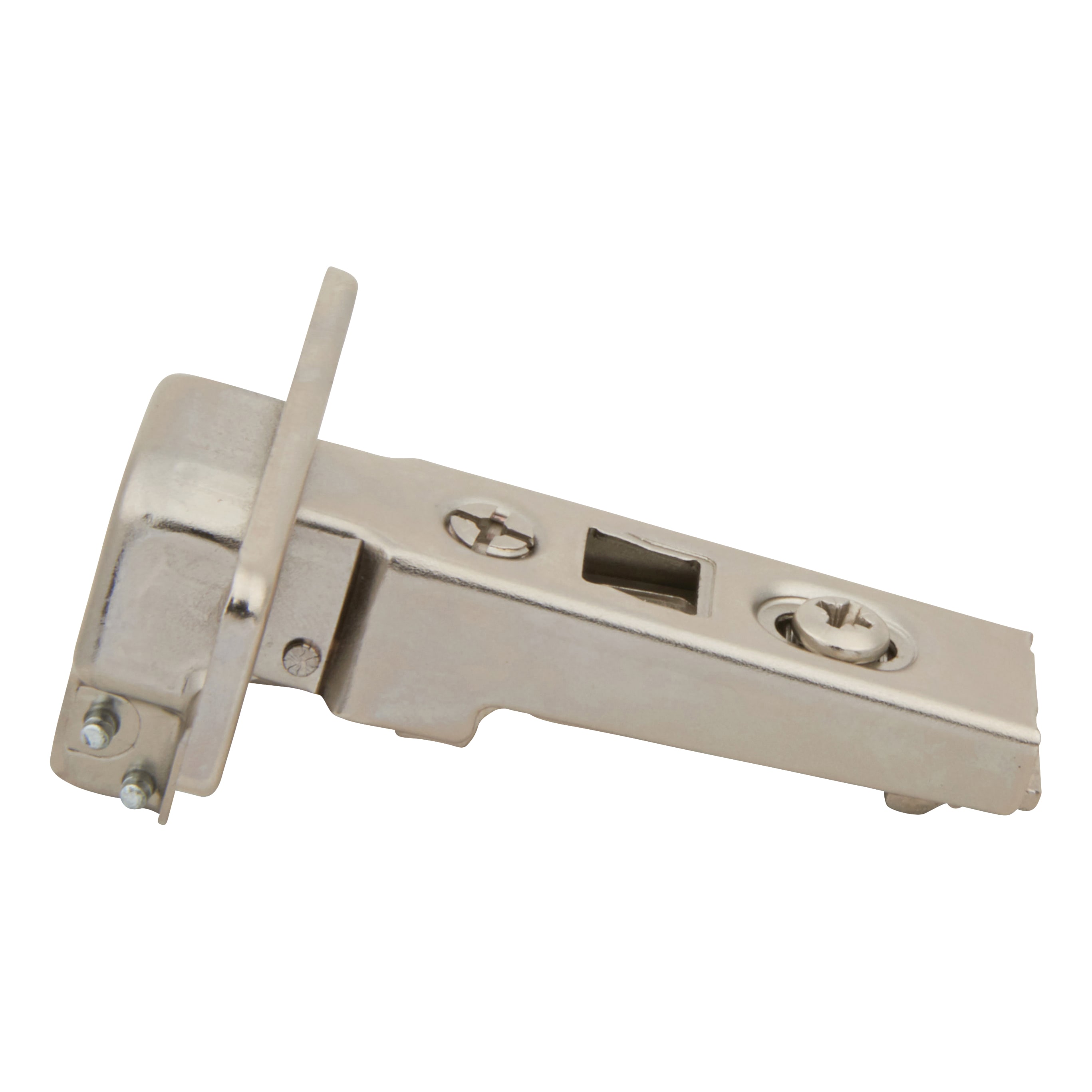

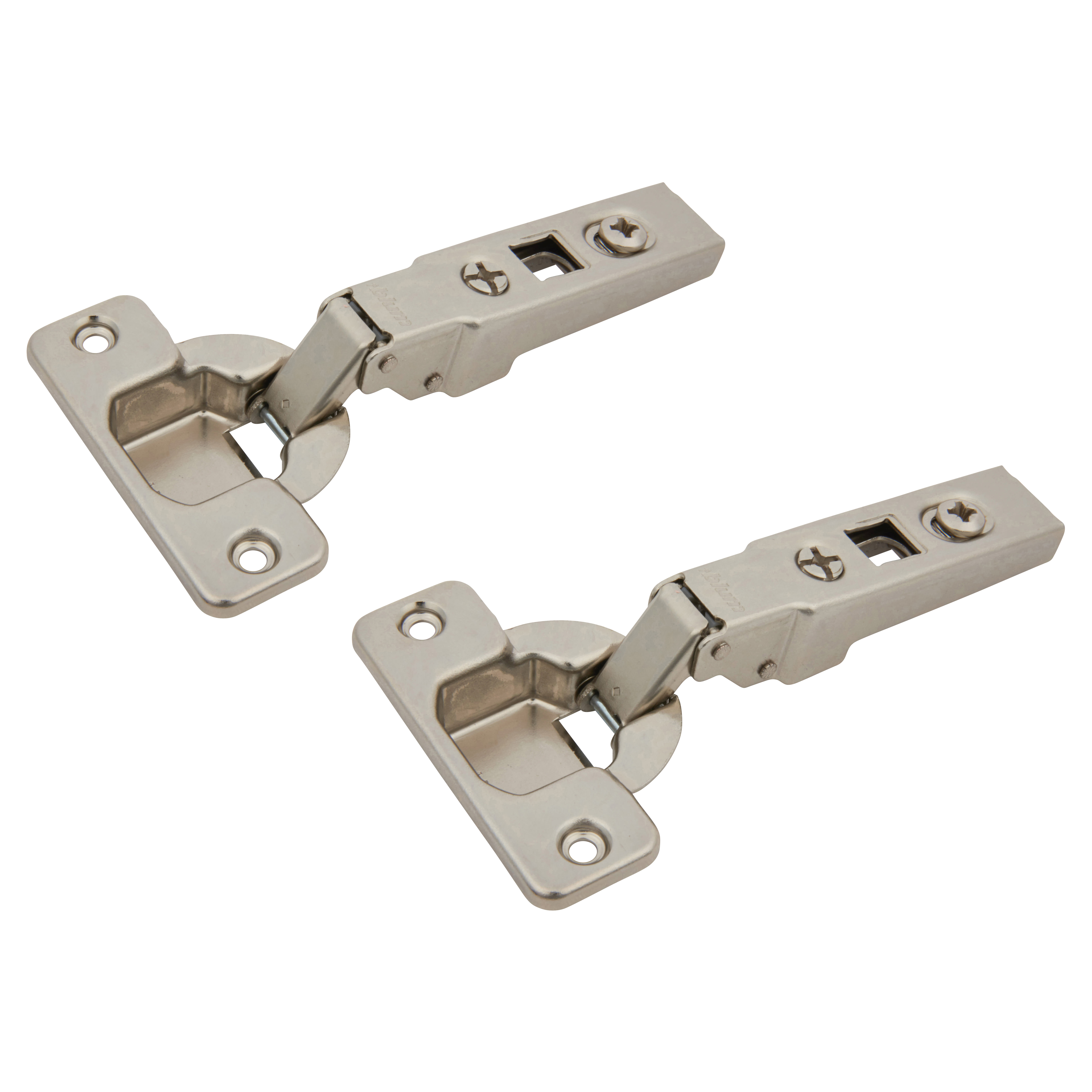

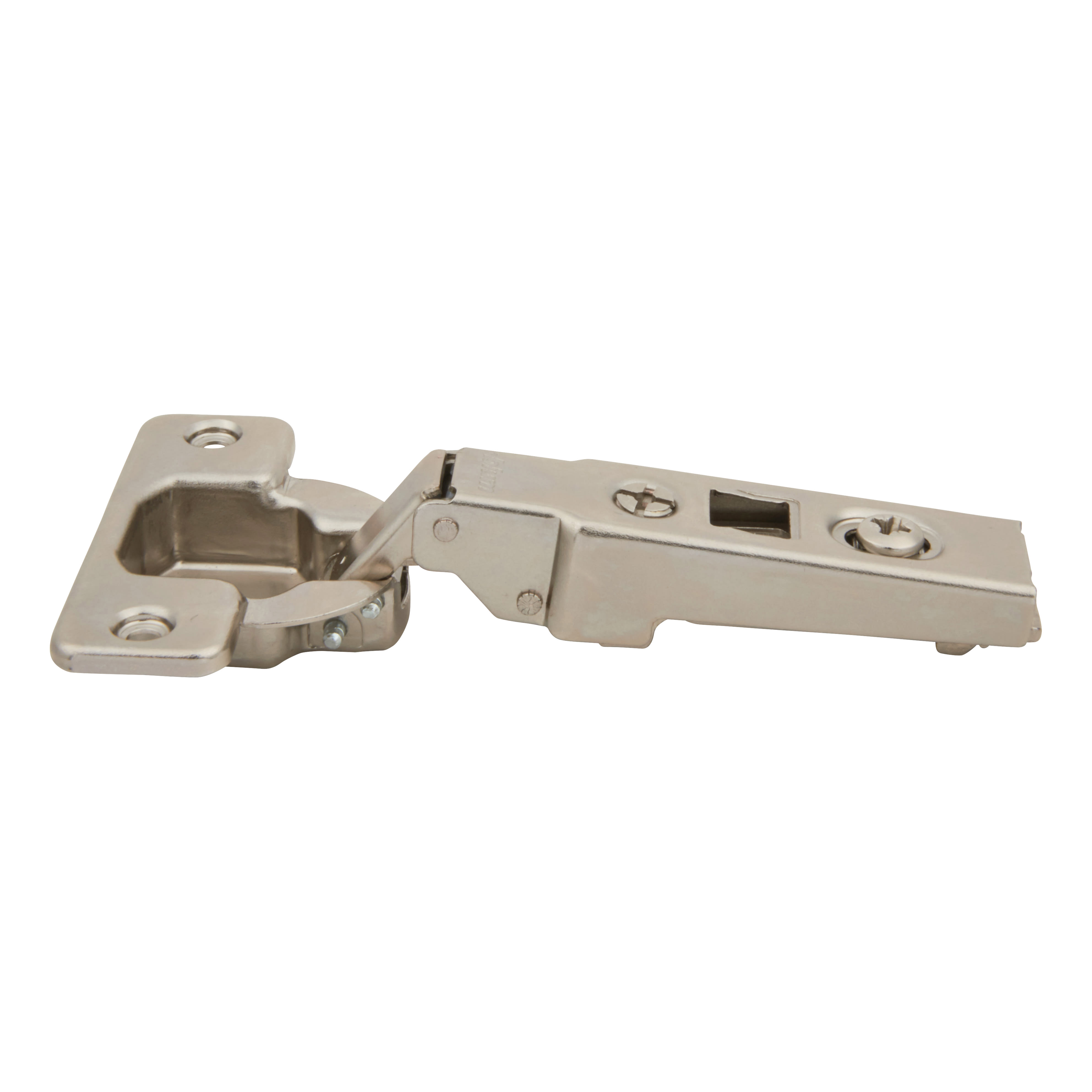

CLIP Cabinet Hinge - 100° - Sprung - Overlay - Zinc Plated - Pair - Mild Steel
Product Code: 268127P
CLIP Cabinet Hinge - 100° - Sprung - Overlay - Zinc Plated - Pair - Mild Steel
Product Code: 268127P
1 In stock
£3.53
Ex. VAT: £2.94
This product is part of a range with 6 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Blum Part Code: 71M2550
Ideal for use on kitchen, bathroom & household cabinets
Overlay - where the cabinet door fully overlays the carcass
Sprung - pulls the door fully closed without the need for a catch
CLIP - when attached the hinge will click in to place & has a three-way adjustment
Diameter: 35mm
Arm cover plates & soft close mechanism to be ordered separately
Mounting plates must be ordered separately to suit your application
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Ideal for use on kitchen, bathroom & household cabinets
Overlay - where the cabinet door fully overlays the carcass
Sprung - pulls the door fully closed without the need for a catch
CLIP - when attached the hinge will click in to place & has a three-way adjustment
Diameter: 35mm
Arm cover plates & soft close mechanism to be ordered separately
Mounting plates must be ordered separately to suit your application
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Product Specifications
| Application | Overlay |
| Depth Adjustment (mm) | -3mm |
| Finish | Zinc Plated |
| Fixing Method | Clip On |
| Material | Mild Steel |
| Option | Hinges Only |
| Pack Quantity | 2 |
| Range | CLIP |
| Suit Door Thickness (mm) | 16-24mm |
| Type | Concealed Kitchen Cabinet Hinge |
| Sprung | Sprung |
| Opening Angle | 100° |
| Brand | Blum |
| Guarantee | Lifetime Years |
