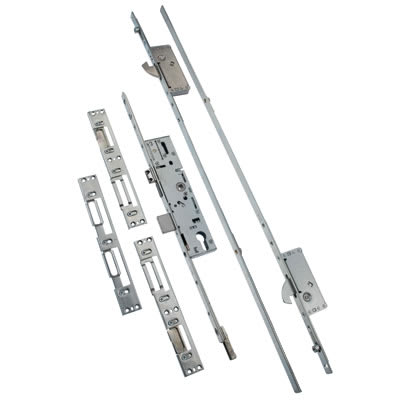

High Security uPVC Multipoint Door Lock - 2 Hook 2 Roller - 35mm Backset - 92mm c/c - Zinc
Product Code: 897237P
High Security uPVC Multipoint Door Lock - 2 Hook 2 Roller - 35mm Backset - 92mm c/c - Zinc
Product Code: 897237P
2 In stock
£123.62
Ex. VAT: £103.02
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £123.62 | — |
| 5+ | £123.44 | — |
- Products Description
- Technical Specifications
High security multipoint lock with euro cylinder operation that's suitable for uPVC doors
Split spindle function for nightlatch operation - means the door cannot be opened from outside without a key
Twin high security steel hooks for anti-separation resistance - 10mm engagement into keeps
Twin adjustable precision rollers for enhanced performance and weathersealing
Adjustable rollers to maximise weather sealing
Non handed lock with reversible latch bolt for left or right hand opening
3 locking points
16mm faceplate
Top Bolt 1: 283-565mm
Top Bolt 2: 360-816mm
Bottom Bolt 1: 415-871mm
Bottom Bolt 2: 520-976mm
Length: 1987mm
Kit contents: Central euro profile gearbox in 35mm backset, croppable top and bottom extension pieces and adjustable keeps with universal packers
Please note: cylinder must be ordered separately. We recommend the ERA Kitemarked, Yale Kitemarked or Mila ranges in our cylinder section
Split spindle function for nightlatch operation - means the door cannot be opened from outside without a key
Twin high security steel hooks for anti-separation resistance - 10mm engagement into keeps
Twin adjustable precision rollers for enhanced performance and weathersealing
Adjustable rollers to maximise weather sealing
Non handed lock with reversible latch bolt for left or right hand opening
3 locking points
16mm faceplate
Top Bolt 1: 283-565mm
Top Bolt 2: 360-816mm
Bottom Bolt 1: 415-871mm
Bottom Bolt 2: 520-976mm
Length: 1987mm
Kit contents: Central euro profile gearbox in 35mm backset, croppable top and bottom extension pieces and adjustable keeps with universal packers
Please note: cylinder must be ordered separately. We recommend the ERA Kitemarked, Yale Kitemarked or Mila ranges in our cylinder section
Product Specifications
| Application | uPVC |
| Backset (mm) | 35mm |
| British Standard | No |
| CE Rated | No |
| Centres (mm) | 92mm |
| Certifire | No |
| Faceplate (mm) | 16mm |
| Fire Rating | No |
| Length (mm) | 1987mm |
| Material | Zinc |
| Option | Euro Profile |
| Pack Quantity | 1 |
| Type | Lock |
| Bottom Bolt 1 (mm) | 415-871mm |
| Bottom Bolt 2 (mm) | 520-976mm |
| Cam (mm) | 8mm |
| Deadbolt | 1 |
| Keeps Included | Yes |
| Locking Points | 3 |
| Secured by Design | No |
| Spindle | Split |
| UKCA Approved | No |
| Hook Bolt | 2 |
| Roller | 2 |
| PAS 24 | PAS 24 Compliant |
| Top Bolt 1 (mm) | 283-565mm |
| Shoot Bolt | 0 |
| Top Bolt 2 (mm) | 360-816mm |
| Mushroom Cam | 0 |
| Brand | ERA |
| Guarantee | 10 Years |
