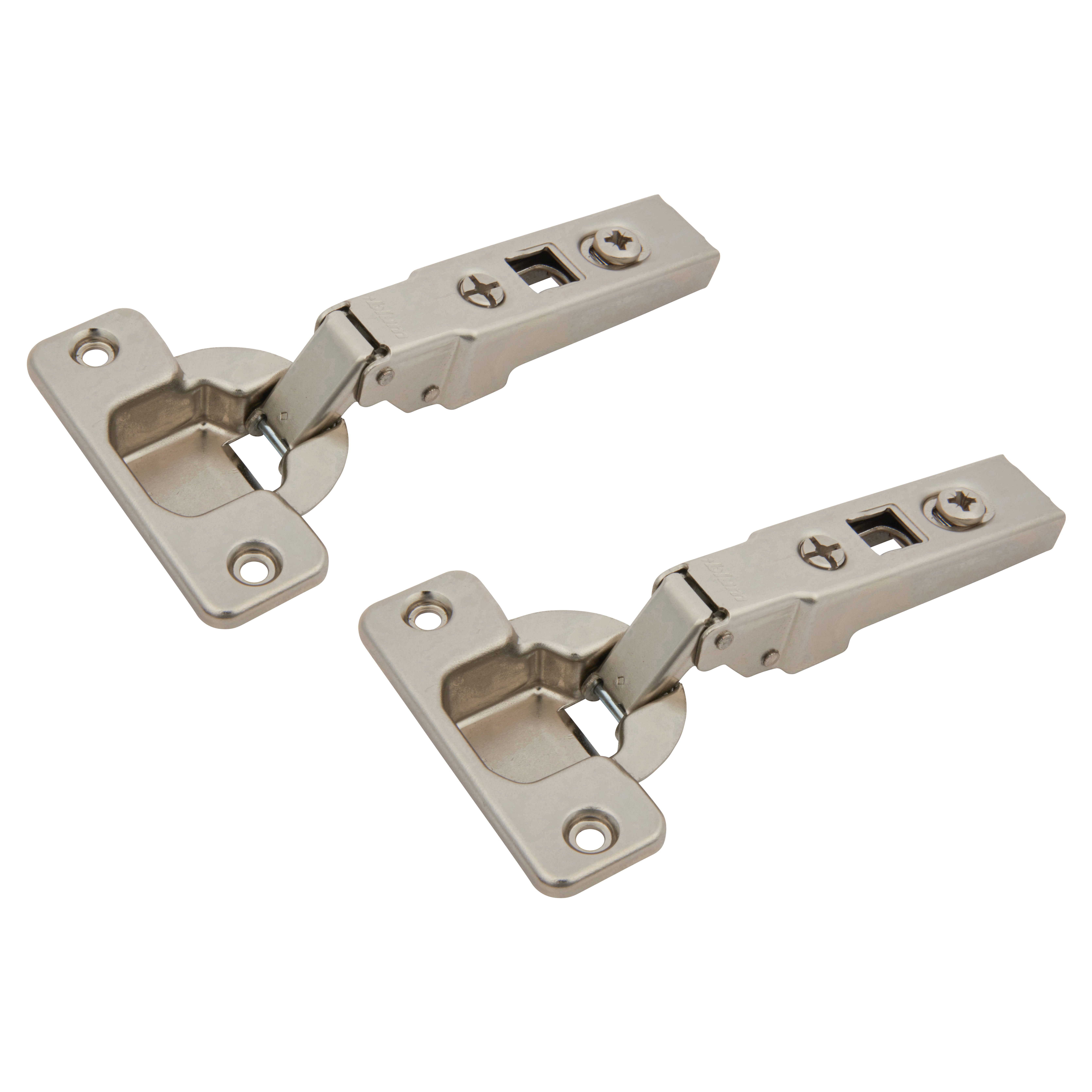

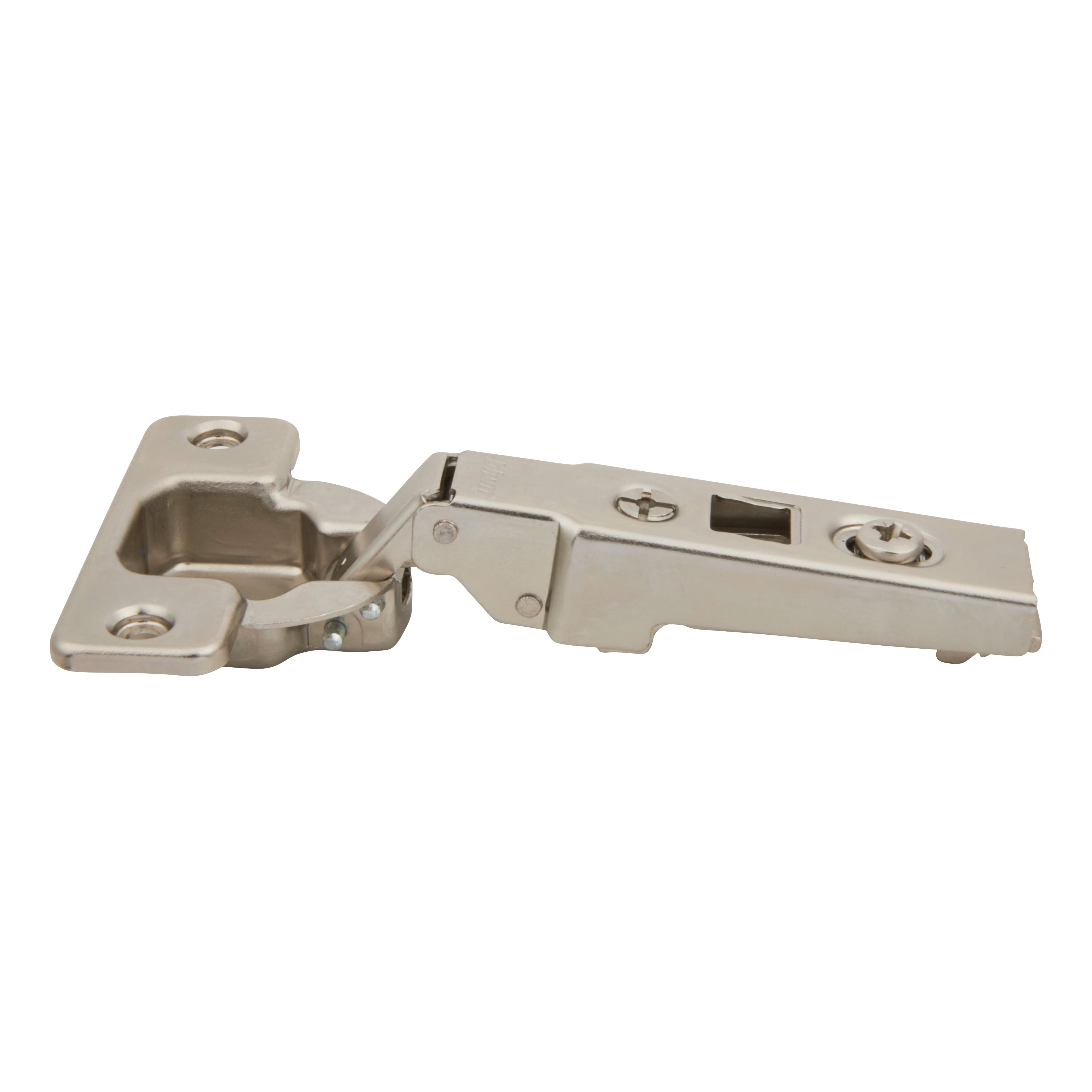

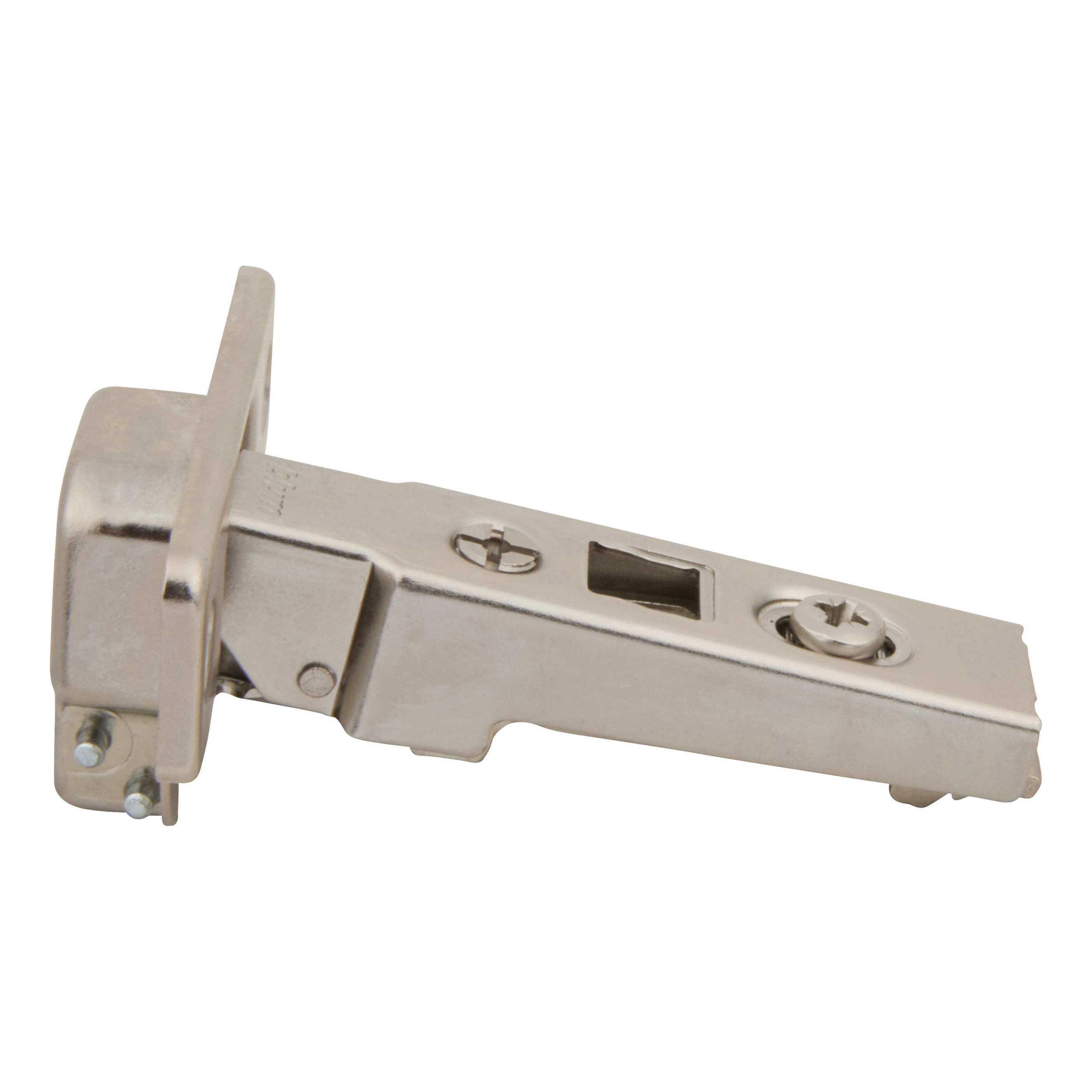

CLIP Cabinet Hinge - 100° - Un-Sprung - Overlay - Zinc Plated - Pair - Mild Steel
Product Code: 011547P
CLIP Cabinet Hinge - 100° - Un-Sprung - Overlay - Zinc Plated - Pair - Mild Steel
Product Code: 011547P
15 In stock
£7.34
Ex. VAT: £6.12
This product is part of a range with 6 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £7.34 | — |
| 10 – 19 | £7.55 | — |
| 20+ | £7.16 | Save 3% |
- Products Description
- Technical Specifications
Blum Part Code: 70M2550
Ideal for use on kitchen, bathroom & household cabinets
Overlay - where the cabinet door fully overlays the carcass
CLIP - when attached the hinge will click in to place & has a three-way adjustment
Diameter: 35mm
Arm cover plates & soft close mechanism to be ordered separately
Mounting plates must be ordered separately to suit your application
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Ideal for use on kitchen, bathroom & household cabinets
Overlay - where the cabinet door fully overlays the carcass
CLIP - when attached the hinge will click in to place & has a three-way adjustment
Diameter: 35mm
Arm cover plates & soft close mechanism to be ordered separately
Mounting plates must be ordered separately to suit your application
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Product Specifications
| Application | Overlay |
| Depth Adjustment (mm) | -3mm |
| Finish | Zinc Plated |
| Fixing Method | Clip On |
| Material | Mild Steel |
| Option | Hinges Only |
| Pack Quantity | 2 |
| Range | CLIP |
| Type | Concealed Kitchen Cabinet Hinge |
| Sprung | Unsprung |
| Opening Angle | 100° |
| Brand | Blum |
| Guarantee | Lifetime Years |
