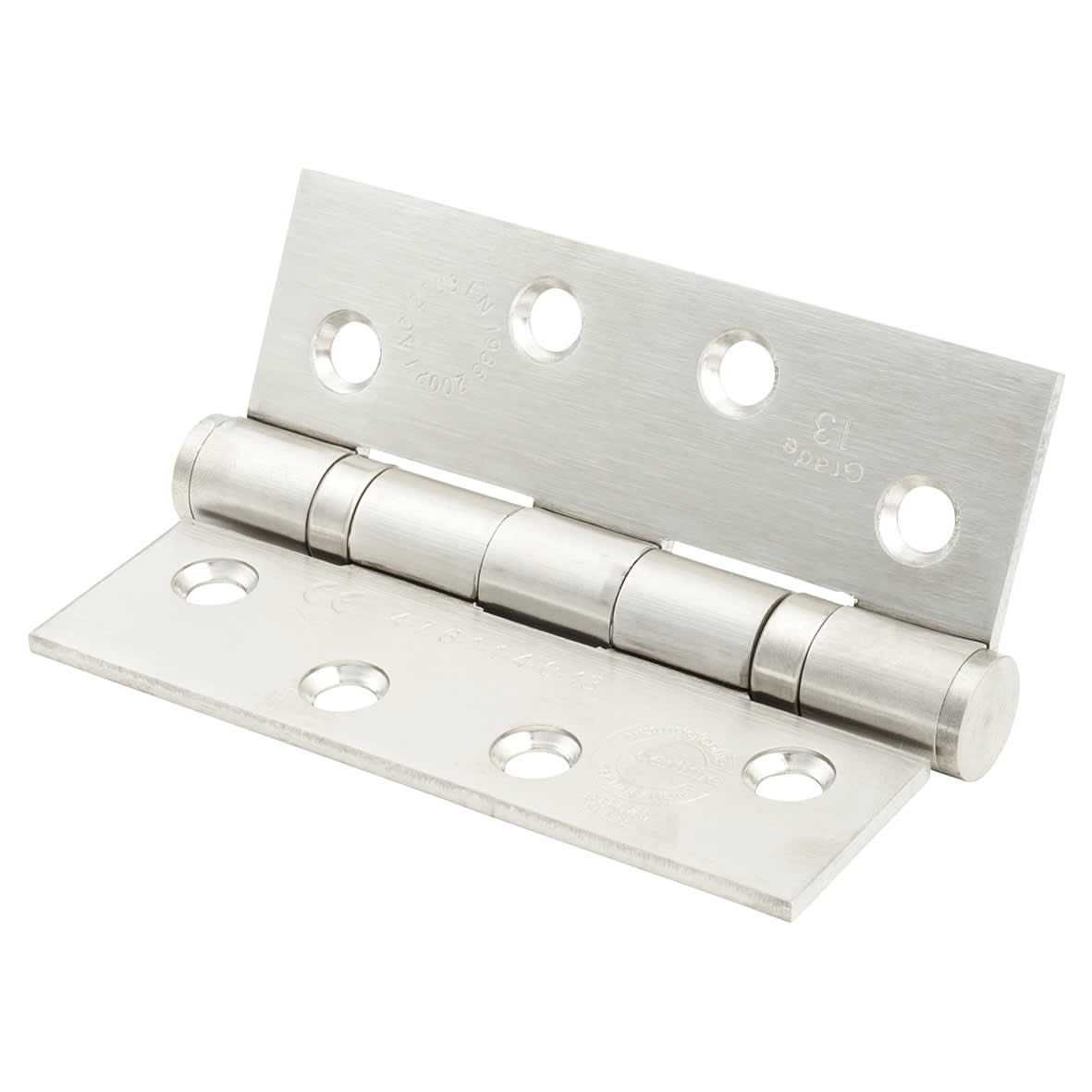

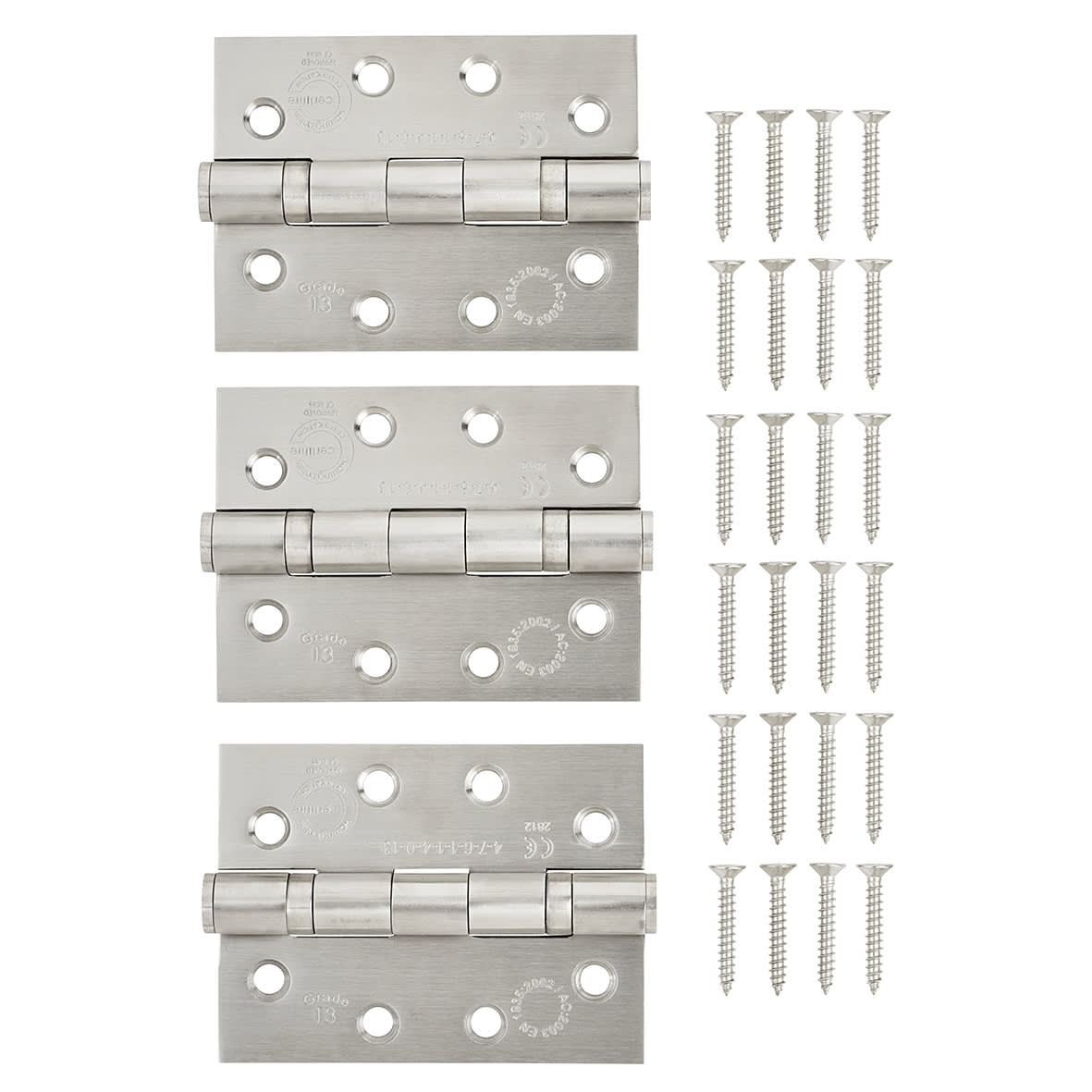

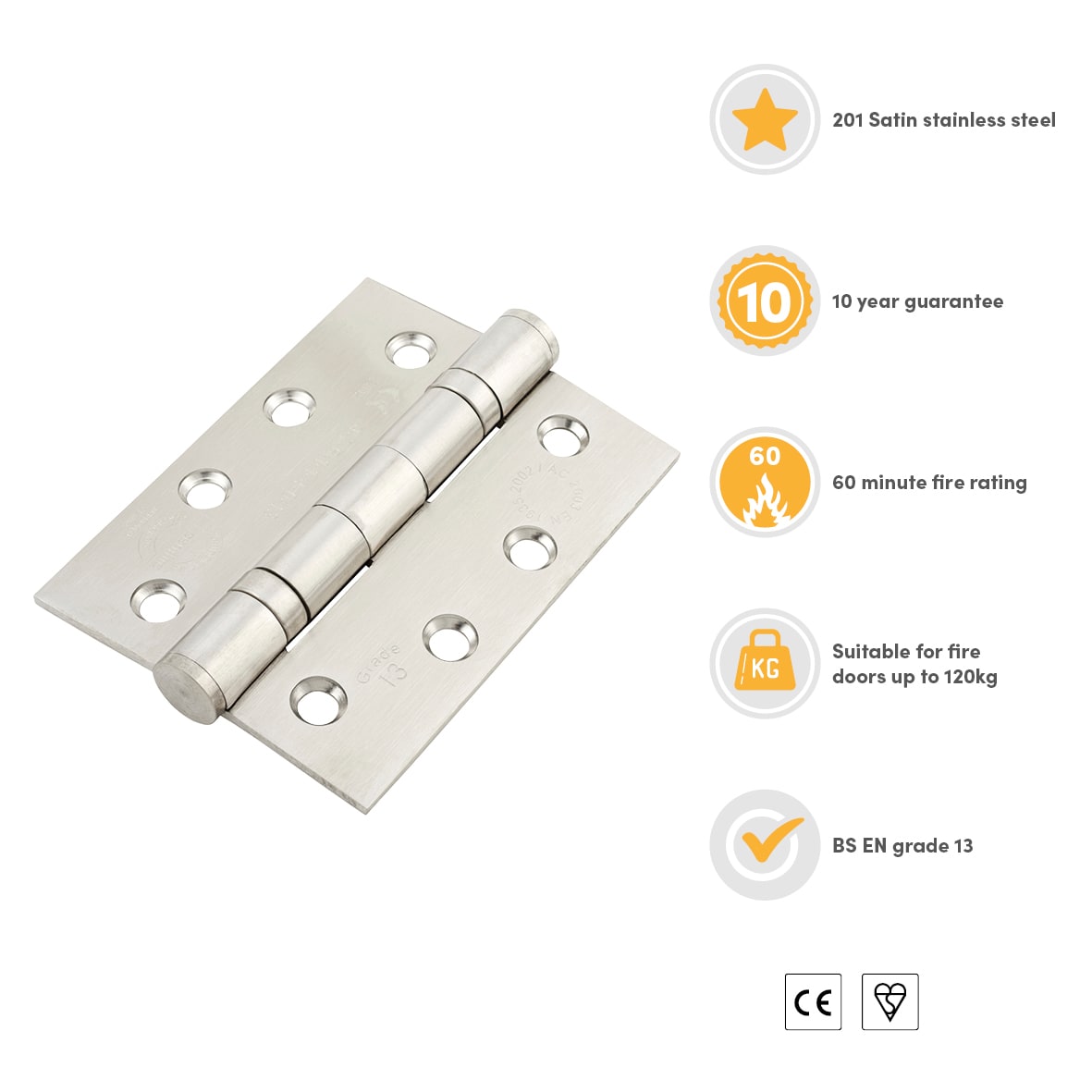

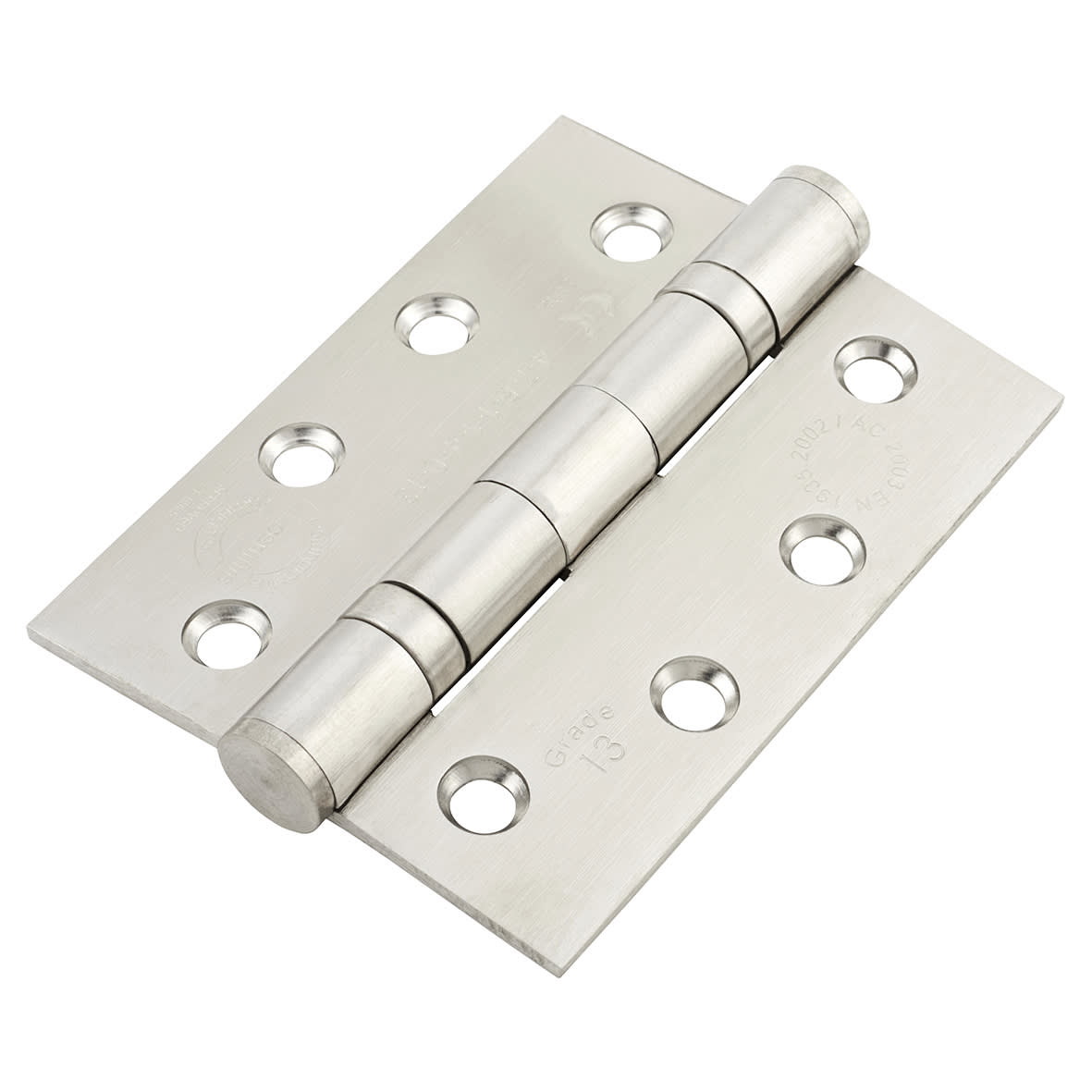

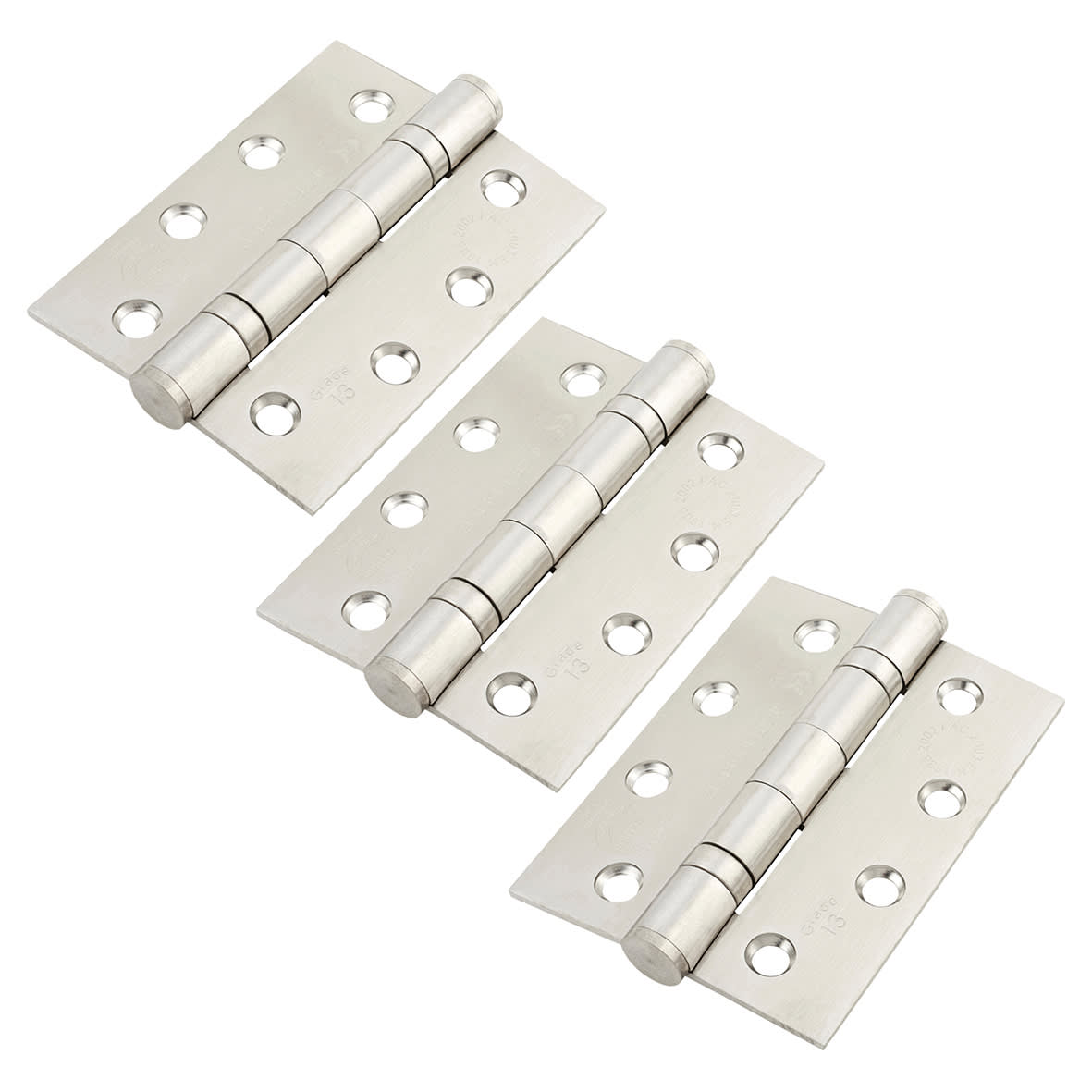

Twin Ball Bearing Grade 13 Butt Fire Door Hinge - 100 x 75 x 3mm - 201 Stainless - Pack of 3 - 201 Stainless Steel
Product Code: 031397P
Twin Ball Bearing Grade 13 Butt Fire Door Hinge - 100 x 75 x 3mm - 201 Stainless - Pack of 3 - 201 Stainless Steel
Product Code: 031397P
34,552 In stock
£4.90
Ex. VAT: £4.08
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Fire door hinge suitable for fire doors up to 120kg
Sold in packs of 3
BS EN Grade 13
Grade 201 Stainless Steel
For interior use
CE Marked
Note: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
Sold in packs of 3
BS EN Grade 13
Grade 201 Stainless Steel
For interior use
CE Marked
Note: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
Product Specifications
| British Standard | Yes |
| BSEN Grade | 13 |
| CE Rated | CE Rated |
| Corners | Square |
| Duty | Heavy Duty |
| Finish | Satin Stainless Steel |
| Fire Rating | 60 |
| Length (mm) | 100mm |
| Material | 201 Stainless Steel |
| Max Door Weight (kg) | 120kg |
| Option | Ball Bearing |
| Pack Quantity | 3 |
| Size (mm) | 100 x 75 x 3mm |
| Type | Butt Hinge |
| Finish Group | Stainless Steel |
| Use | Interior |
| Size Range (mm) | 4 Inch/100mm |
| Steel Rating | 201 |
| Brand | Perceptive Select |
| Guarantee | 10 Years |
