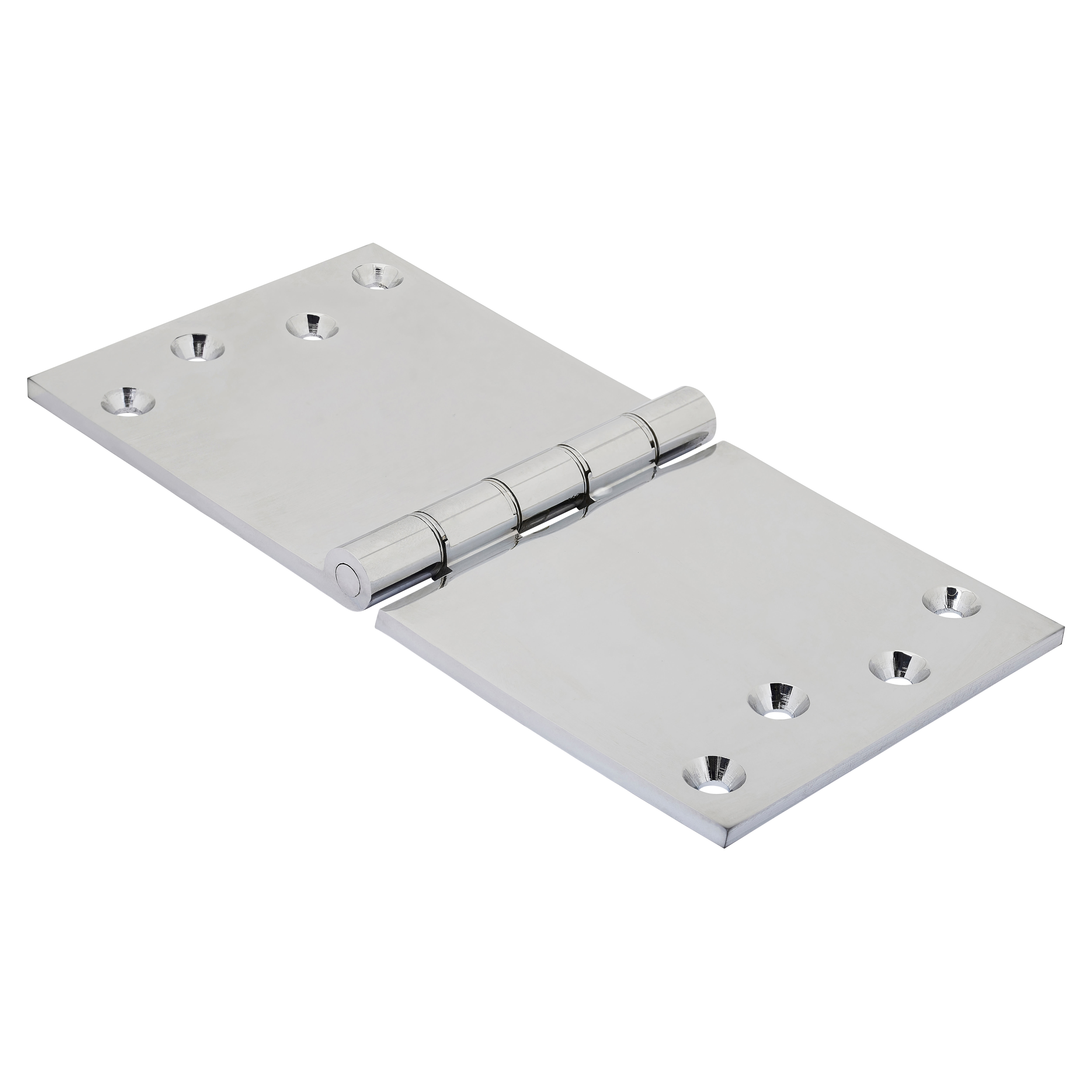

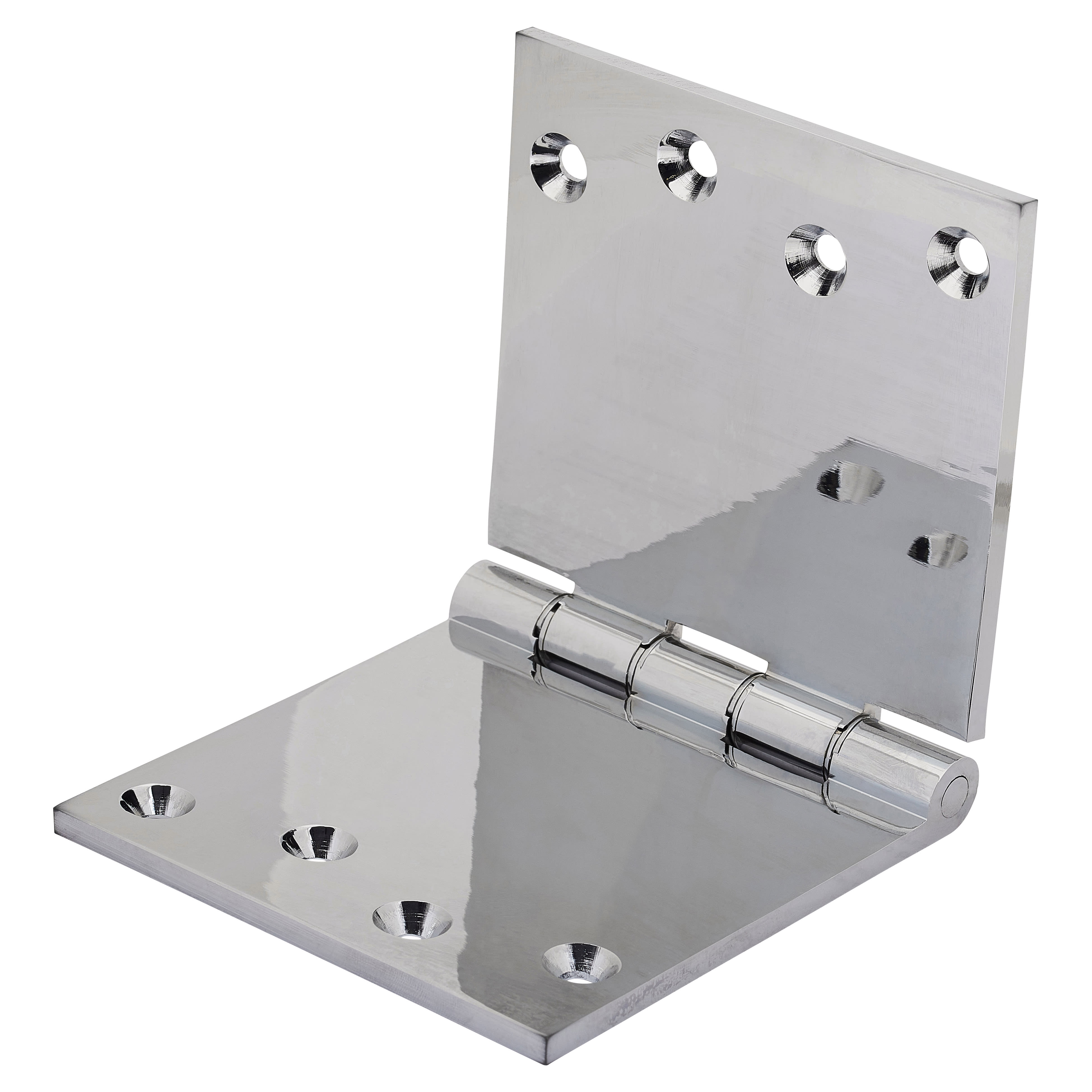

Projection Hinge - 102 x 200 x 5mm - Polished Chrome - Pair - Solid Brass
Product Code: 089497P
Projection Hinge - 102 x 200 x 5mm - Polished Chrome - Pair - Solid Brass
Product Code: 089497P
290 In stock
£100.66
Ex. VAT: £83.88
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Projects doors clear of architraves, window boards or down pipes
Double phosphor bronze washered to withstand high loads and reduce wear
Heavy duty for solid and glazed exterior doors
Solid brass chrome plated
Suitable for doors up to 60kg
Use projection hinges to position heavy doors beyond projecting architraves, window boards and down pipes
Typically used on heavy glazed conservatory and glass house doors
All fixing screws are set in the same positions as standard butt hinges to allow maximum projection
Never use a door closer with projection hinges as the geometry of the pivot point will foul the closer operation
Double phosphor bronze washered to withstand high loads and reduce wear
Heavy duty for solid and glazed exterior doors
Solid brass chrome plated
Suitable for doors up to 60kg
Use projection hinges to position heavy doors beyond projecting architraves, window boards and down pipes
Typically used on heavy glazed conservatory and glass house doors
All fixing screws are set in the same positions as standard butt hinges to allow maximum projection
Never use a door closer with projection hinges as the geometry of the pivot point will foul the closer operation
Product Specifications
| Duty | Heavy Duty |
| Finish | Polished Chrome |
| Material | Solid Brass |
| Max Weight (kg) | 60kg |
| Pack Quantity | 2 |
| Size (mm) | 102 x 200 x 4mm |
| Type | Projection Hinge |
| Finish Group | Chrome |
| Use | Exterior |
| Max Projection (mm) | 115mm |
| Size Range (mm) | 4 Inch/100mm |
| Brand | Jedo |
