TS4000EFS Electromagnetic Fire Door Closer - Power Size EN 1-6 - Silver - Aluminium
Product Code: 008208P
TS4000EFS Electromagnetic Fire Door Closer - Power Size EN 1-6 - Silver - Aluminium
Product Code: 008208P
26 In stock
£309.60
Ex. VAT: £258.00
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £309.60 | — |
| 5+ | £318.63 | — |
- Products Description
- Technical Specifications

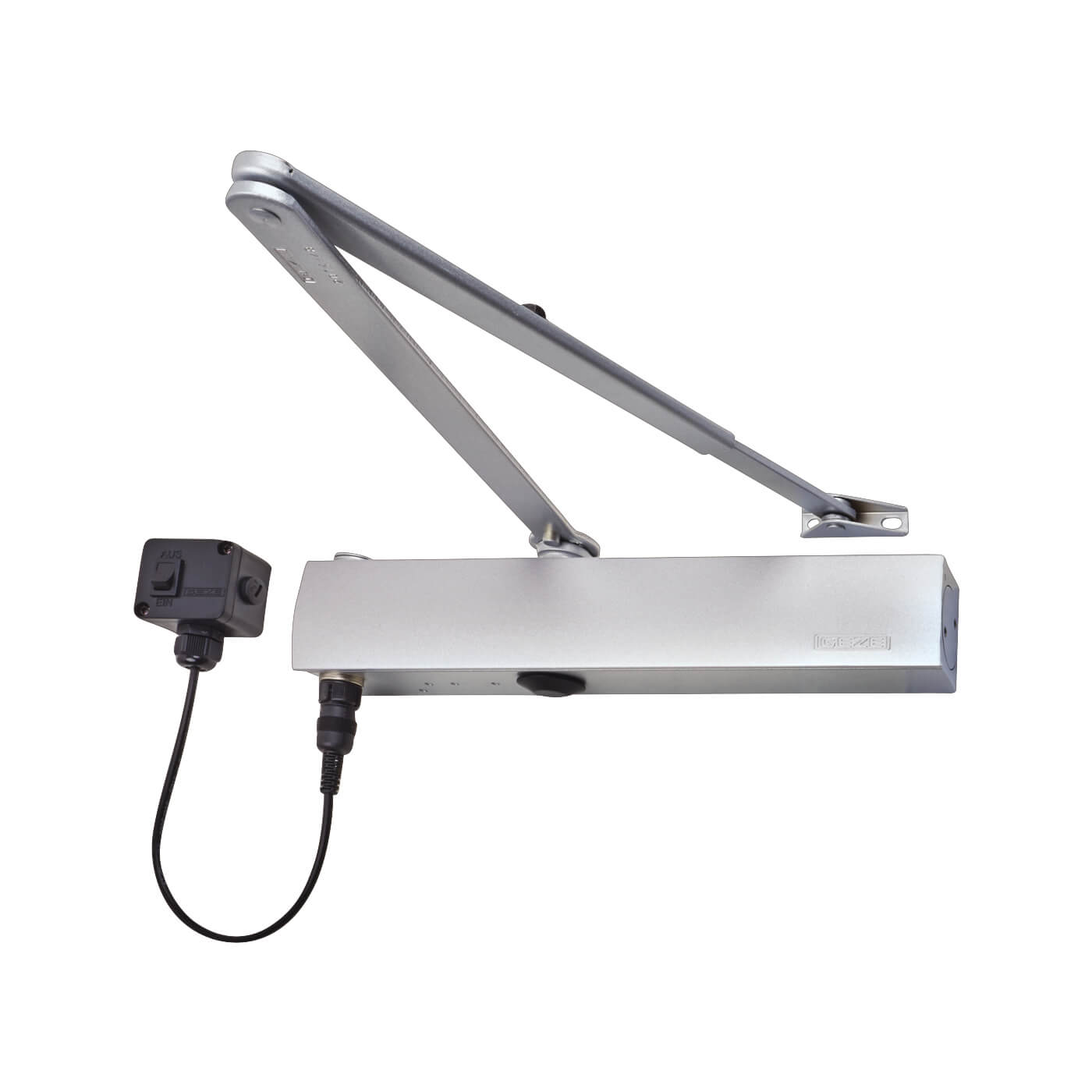

The GEZE TS 4000 EFS electromagnetic free swing overhead door closer is a surface mounted, advanced closer designed for single leaf doors up to 1400mm wide and 120kg in weight
Ideal for use in healthcare facilities, care homes, schools, and public buildings where accessibility and fire safety must work hand in hand
Combining the reliability of a mechanical door closer with an integrated free-swing function, it provides effortless door operation for users while maintaining full fire safety compliance
Fully tested to EN 1154 and EN 1155, suitable for FD120 rated fire and smoke protection doors, and compliant with BS 8300 and the Equality Act, it delivers outstanding performance in accessibility and safety-critical environments
Adjustable closing force (EN 1–6) offers stepless, variable control to suit a wide range of door sizes and weights
Integrated free swing function allows the door to move freely within approximately 80° to 175°, enabling effortless manual operation when activated
Free swing mode automatically disables during a fire alarm or power failure, ensuring the door closes securely for fire and smoke containment
Mechanical latching action accelerates the final stage of closing to ensure a secure latch and maintain fire door integrity
Maximum opening angle of up to 180° provides full accessibility and ease of use across diverse applications
Visual “optical size display” allows quick verification of the selected closing force and settings during installation or inspection
Front access adjustment valves make setup and maintenance straightforward, with independent adjustment of closing speed
Non handed design allows installation on either left or right hand doors without conversion, simplifying fitting and reducing inventory needs
Built-in safety and overload protection valves ensure stable, consistent performance and protect the mechanism from excessive force
Thermo controlled hydraulic system maintains reliable operation across temperature variations
Operates on 24 V DC with low energy consumption, offering efficient integration with fire alarm and smoke control systems
Rated IP43 for durability and protection against dust and moisture in demanding environments
Tested to EN 1154 and EN 1155, approved for up to 120 minutes (FD120) fire resistance, and compliant with BS 8300 for accessibility standards
Ideal for use in healthcare facilities, care homes, schools, and public buildings where accessibility and fire safety must work hand in hand
Combining the reliability of a mechanical door closer with an integrated free-swing function, it provides effortless door operation for users while maintaining full fire safety compliance
Fully tested to EN 1154 and EN 1155, suitable for FD120 rated fire and smoke protection doors, and compliant with BS 8300 and the Equality Act, it delivers outstanding performance in accessibility and safety-critical environments
Adjustable closing force (EN 1–6) offers stepless, variable control to suit a wide range of door sizes and weights
Integrated free swing function allows the door to move freely within approximately 80° to 175°, enabling effortless manual operation when activated
Free swing mode automatically disables during a fire alarm or power failure, ensuring the door closes securely for fire and smoke containment
Mechanical latching action accelerates the final stage of closing to ensure a secure latch and maintain fire door integrity
Maximum opening angle of up to 180° provides full accessibility and ease of use across diverse applications
Visual “optical size display” allows quick verification of the selected closing force and settings during installation or inspection
Front access adjustment valves make setup and maintenance straightforward, with independent adjustment of closing speed
Non handed design allows installation on either left or right hand doors without conversion, simplifying fitting and reducing inventory needs
Built-in safety and overload protection valves ensure stable, consistent performance and protect the mechanism from excessive force
Thermo controlled hydraulic system maintains reliable operation across temperature variations
Operates on 24 V DC with low energy consumption, offering efficient integration with fire alarm and smoke control systems
Rated IP43 for durability and protection against dust and moisture in demanding environments
Tested to EN 1154 and EN 1155, approved for up to 120 minutes (FD120) fire resistance, and compliant with BS 8300 for accessibility standards
Product Specifications
| Arm Finish | Silver |
| Backcheck | Without Backcheck |
| CE Rated | CE Rated |
| Certifire | Yes |
| Equality Act Compliant | Equality Act Compliant |
| Finish | Silver |
| Fire Rating | 120 |
| Material | Aluminium |
| Max Door Weight (kg) | 180kg |
| Option | Universal Fixing Pack Included |
| Pack Quantity | 1 |
| Range | TS4000E / TS4000EFS |
| Hold Open Function | With Hold Open Function |
| Max Door Width (mm) | 1400mm |
| Power Size | EN 1-6 |
| Free Swing | With Free Swing |
| Brand | GEZE |
| Guarantee | 1 Year |
