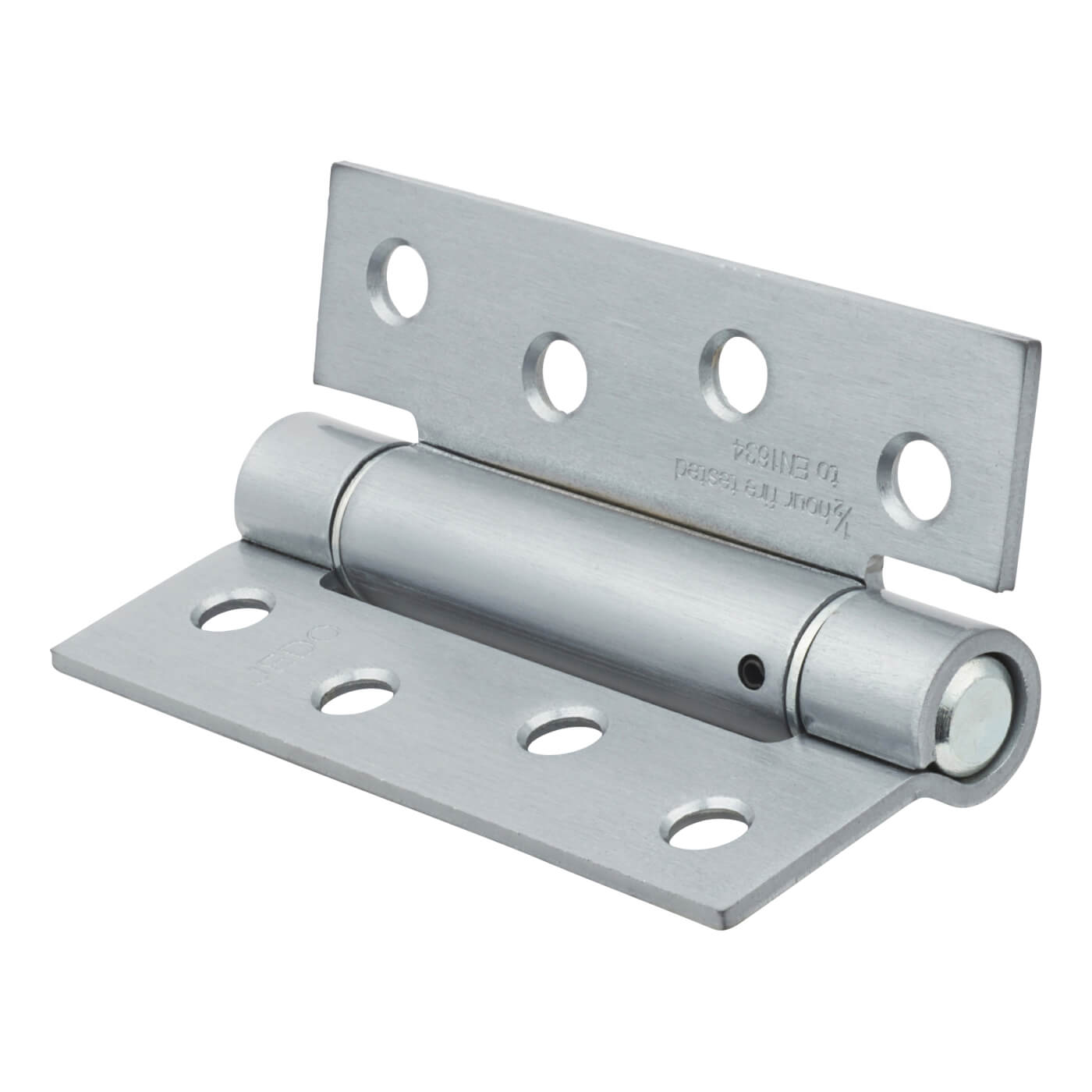

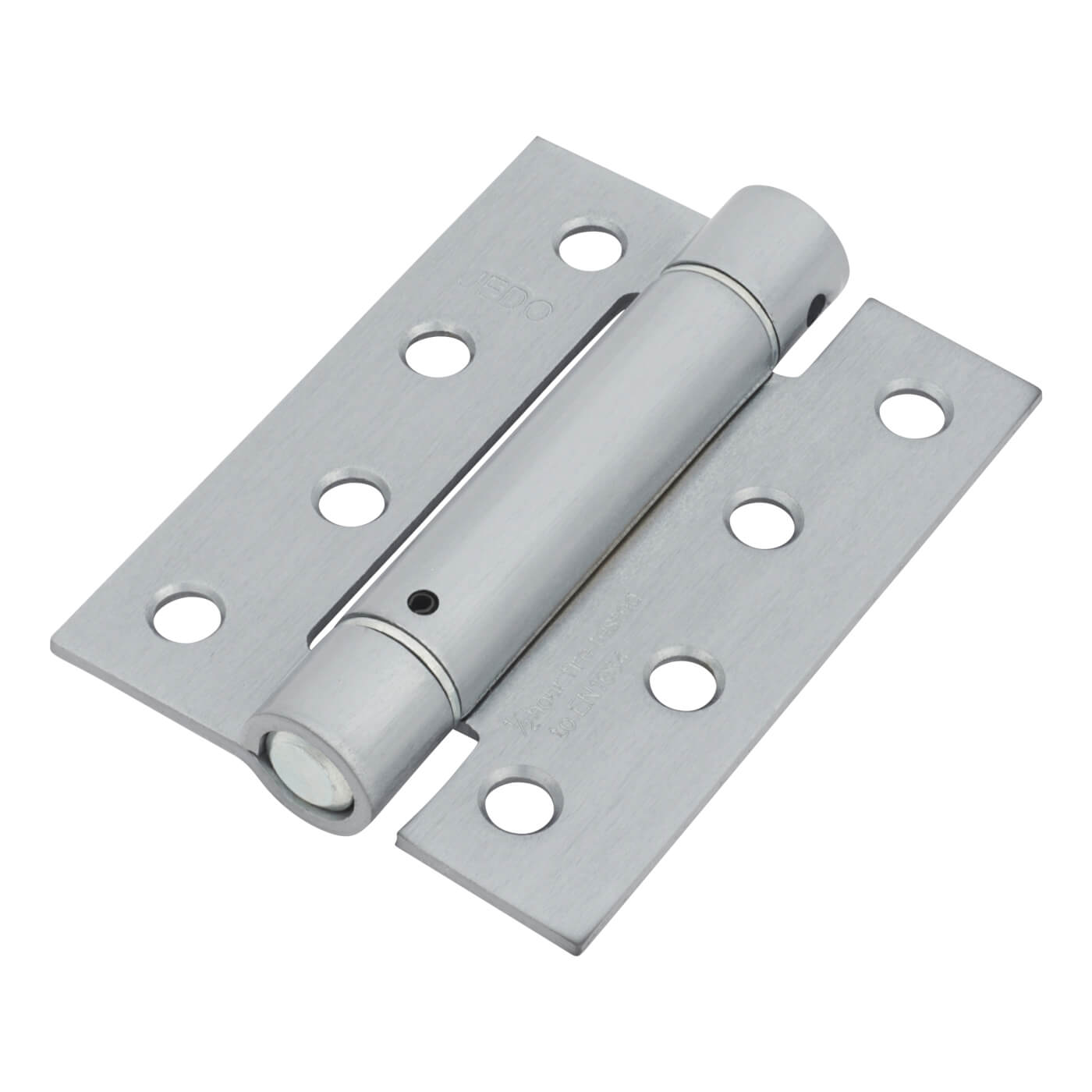

Adjustable Self Closing Fire Door Spring Hinge - 102 x 76 x 3mm - Satin Chrome - Pack of 3 - Mild Steel
Product Code: 261218P
Adjustable Self Closing Fire Door Spring Hinge - 102 x 76 x 3mm - Satin Chrome - Pack of 3 - Mild Steel
Product Code: 261218P
568 In stock
£20.09
Ex. VAT: £16.74
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £20.09 | — |
| 5 – 9 | £20.67 | — |
- Products Description
- Technical Specifications
Supplied as 3 hinges in a set
It's now possible to achieve a considerable fitting time saving when fitting self closing doors where you would traditionally fit hinges and a chain closer
The adjustable spring hinges featured here will close a door in a similar fashion to a chain type closer; sprung closing action without checking action
If a controlled closing action is required then you should fit standard hinges and an overhead closer as featured elsewhere on our website
The self closing spring tension can be disengaged by the removal of a small grub screw, allowing the door to swing freely, if it is no longer required to be a fire resisting door
30 minute fire rated
Internal use
Note: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
It's now possible to achieve a considerable fitting time saving when fitting self closing doors where you would traditionally fit hinges and a chain closer
The adjustable spring hinges featured here will close a door in a similar fashion to a chain type closer; sprung closing action without checking action
If a controlled closing action is required then you should fit standard hinges and an overhead closer as featured elsewhere on our website
The self closing spring tension can be disengaged by the removal of a small grub screw, allowing the door to swing freely, if it is no longer required to be a fire resisting door
30 minute fire rated
Internal use
Note: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
Product Specifications
| Finish | Satin Chrome |
| Fire Rating | 30 |
| Material | Mild Steel |
| Max Door Weight (kg) | 40kg |
| Pack Quantity | 3 |
| Size (mm) | 102 x 76 x 3mm |
| Type | Double Action Spring Hinge |
| Finish Group | Chrome |
| Max Door Width (mm) | 914mm |
| Max Door Thickness (mm) | 45mm |
| Brand | Unbranded |
