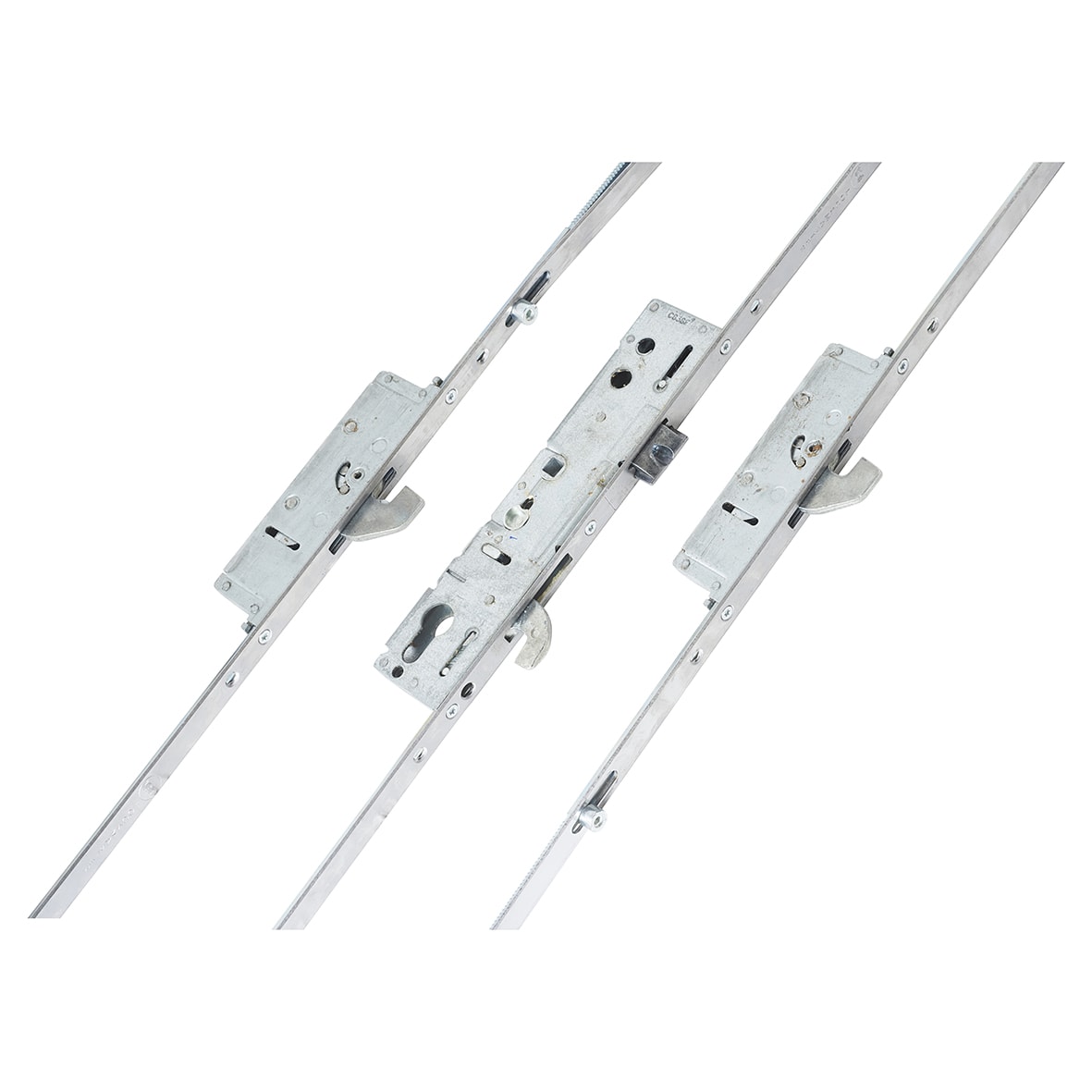

Lockmaster Extendable uPVC Multipoint Door Lock - 2 Roller 2 Hook - 35mm Backset - 92mm c/c - Zinc
Product Code: 413638P
Lockmaster Extendable uPVC Multipoint Door Lock - 2 Roller 2 Hook - 35mm Backset - 92mm c/c - Zinc
Product Code: 413638P
5 In stock
£80.14
Ex. VAT: £66.78
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £80.14 | — |
| 5+ | £82.45 | — |
- Products Description
- Technical Specifications
High security multipoint lock from the best selling Yale Lockmaster range
Suitable for uPVC doors
2 hooks for anti-separation
2 rollers for effective weather sealing
Single spindle operation - allows entry from both sides of the door unless it is manually locked. To lock the door, lift the handle upwards to engage the locking bolts and use a key to deadlock the door
5 locking points
16mm faceplate
Top Bolt 1: 365mm
Top Bolt 2: 488mm
Bottom Bolt 1: 415mm
Bottom Bolt 2: 606mm
Length: 2200mm
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
Suitable for uPVC doors
2 hooks for anti-separation
2 rollers for effective weather sealing
Single spindle operation - allows entry from both sides of the door unless it is manually locked. To lock the door, lift the handle upwards to engage the locking bolts and use a key to deadlock the door
5 locking points
16mm faceplate
Top Bolt 1: 365mm
Top Bolt 2: 488mm
Bottom Bolt 1: 415mm
Bottom Bolt 2: 606mm
Length: 2200mm
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
Product Specifications
| Application | uPVC |
| Backset (mm) | 35mm |
| British Standard | Yes |
| Centres (mm) | 92mm |
| Faceplate (mm) | 16mm |
| Length (mm) | 2200mm |
| Material | Zinc |
| Option | Euro Profile |
| Pack Quantity | 1 |
| Range | Lockmaster |
| Type | Lock |
| Bottom Bolt 1 (mm) | 415mm |
| Bottom Bolt 2 (mm) | 606mm |
| Standards | BS EN 1670 Grade 4 (240 hours) |
| Cut to Size | Can be Cut to Size |
| Deadbolt | 0 |
| Keeps Included | No |
| Locking Points | 5 |
| Secured by Design | Secured by Design |
| Spindle | Fixed/Single |
| Hook Bolt | 2 |
| Roller | 2 |
| Top Bolt 1 (mm) | 365mm |
| Shoot Bolt | 0 |
| Top Bolt 2 (mm) | 488mm |
| Mushroom Cam | 0 |
| Brand | Yale |
| Guarantee | 10 Years |
