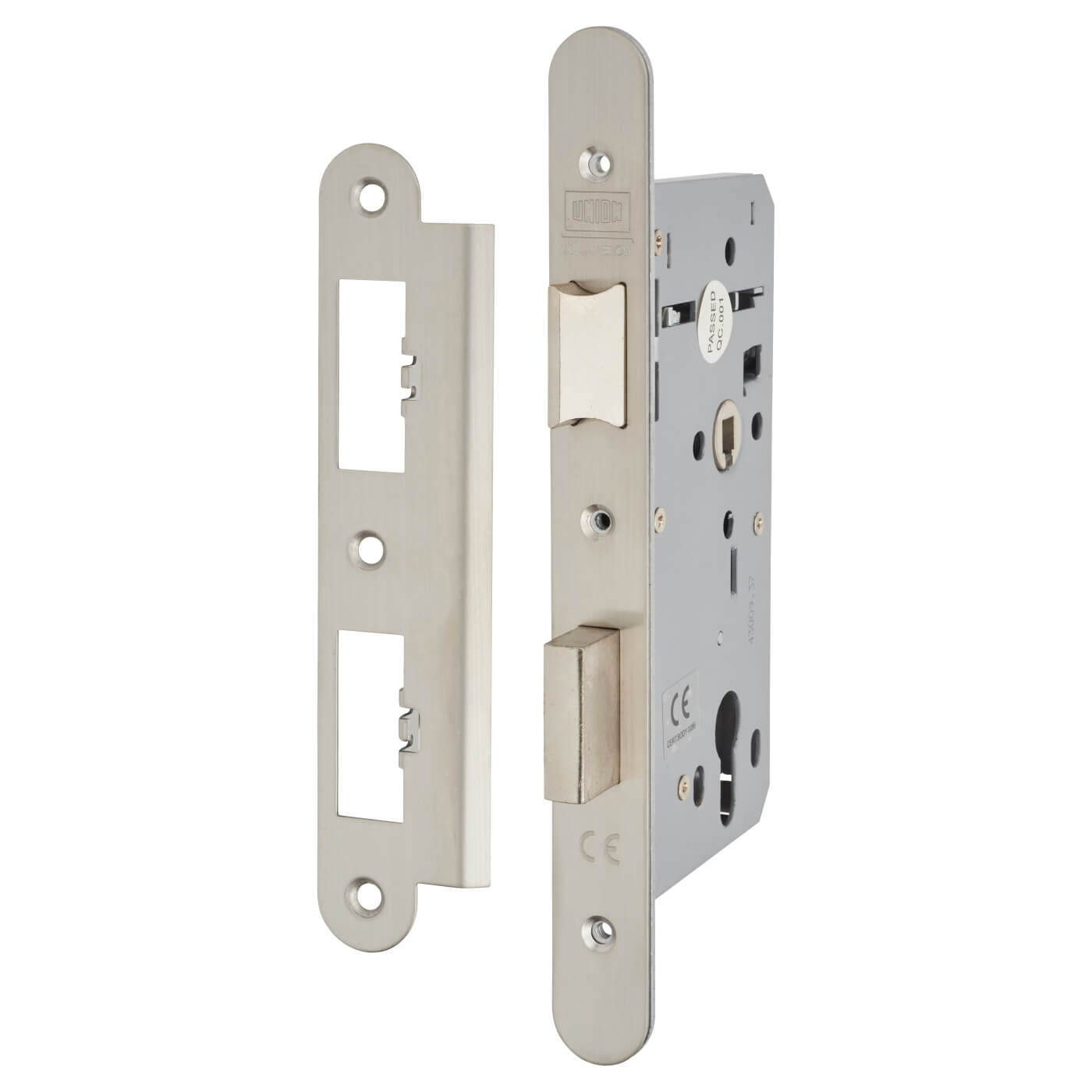

Heavy Duty DIN Euro Escape Sashlock - 90mm Case - 60mm Backset - Radius - Stainless - Mild Steel
Product Code: 190348P
Heavy Duty DIN Euro Escape Sashlock - 90mm Case - 60mm Backset - Radius - Stainless - Mild Steel
Product Code: 190348P
155 In stock
£37.08
Ex. VAT: £30.90
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Heavy duty DIN escape sashlock is designed to deliver high performance locking for years, ideal for use in high frequency areas used by the public or where there is a chance of misuse
Latch follower has been successfully cycle tested to 3.5 million operations
Allows use of heavy unsprung architectural door furniture
Quick reversible latch making it easy to hand on-site
2-way adjustable strike plates with splinter guard ensure seamless fitting
Bolt through fixing
2-piece forend provides simple & clean aesthetics and covers the cylinder retaining screw
Allows just the outer forend to be removed when the doors are being re-painted or stained
30 & 60 minute fire rating for timber doors
240 minute fire rating for metal doors
When the snib is depressed by the strike the latch is deadlocked
Fully tested to BS EN12209
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Latch follower has been successfully cycle tested to 3.5 million operations
Allows use of heavy unsprung architectural door furniture
Quick reversible latch making it easy to hand on-site
2-way adjustable strike plates with splinter guard ensure seamless fitting
Bolt through fixing
2-piece forend provides simple & clean aesthetics and covers the cylinder retaining screw
Allows just the outer forend to be removed when the doors are being re-painted or stained
30 & 60 minute fire rating for timber doors
240 minute fire rating for metal doors
When the snib is depressed by the strike the latch is deadlocked
Fully tested to BS EN12209
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Product Specifications
| Backset (mm) | 60mm |
| Bolt Through Fixing | Bolt Through Fixing |
| British Standard | Yes |
| Case Size (mm) | 90mm |
| CE Rated | CE Rated |
| Centres (mm) | 72mm |
| Certifire | Yes |
| Equality Act Compliant | Equality Act Compliant |
| Finish | Satin Stainless Steel |
| Fire Rating | 30/60 & 240 |
| Material | Mild Steel |
| Option | Euro |
| Pack Quantity | 1 |
| Range | HD72 |
| Size (mm) | 235 x 165 x 24mm |
| Type | DIN Euro Sashlock |
| Profile | Radius |
| Keyed Alike | Not Keyed Alike |
| UKCA Approved | Yes |
| Brand | Union |
| Guarantee | 15 Years |
