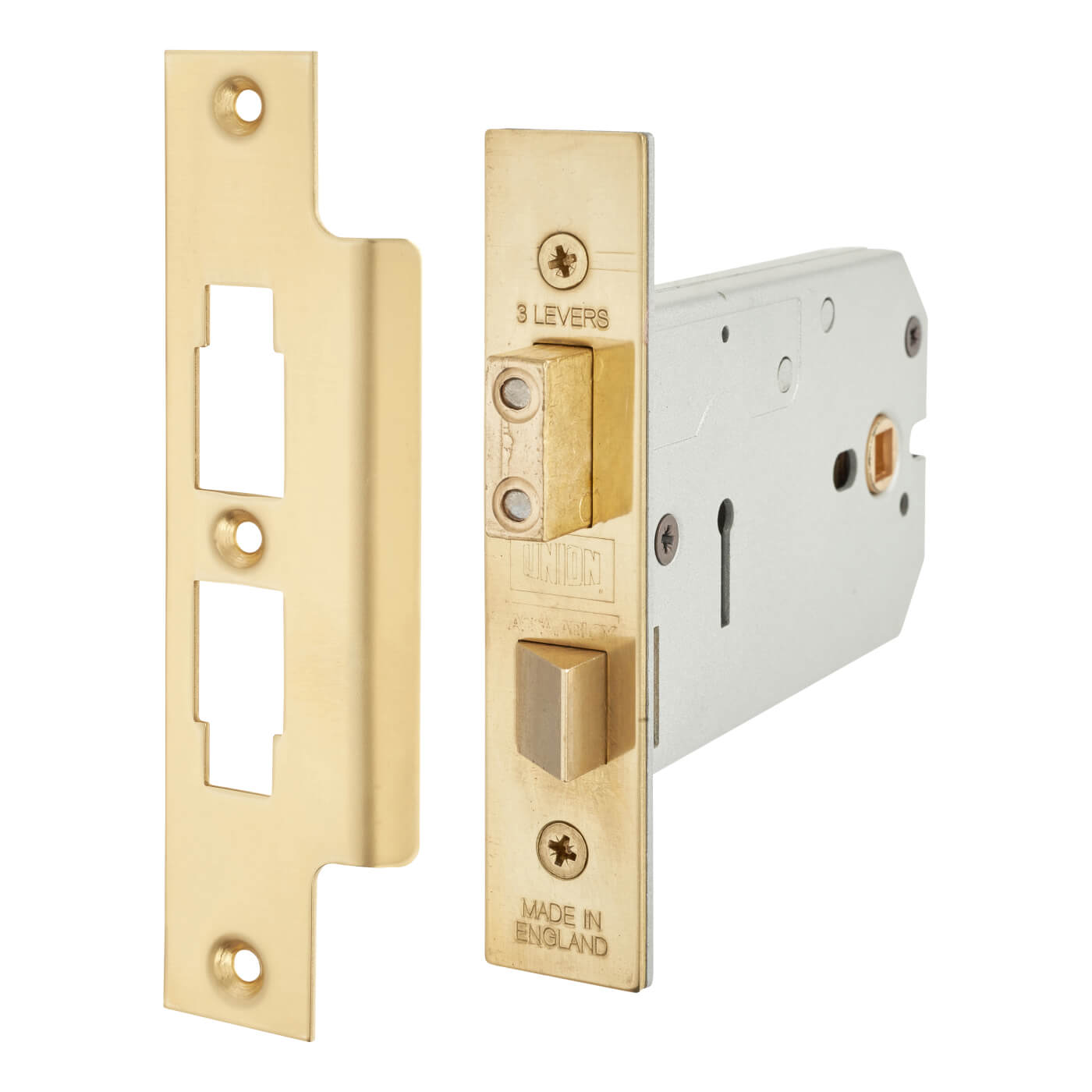

2077 Bolt Through Horizontal Sashlock - 124mm Case - 38-101.5mm Backset - Polished Brass - Solid Brass
Product Code: 547058P
2077 Bolt Through Horizontal Sashlock - 124mm Case - 38-101.5mm Backset - Polished Brass - Solid Brass
Product Code: 547058P
5 In stock
£62.64
Ex. VAT: £52.20
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £62.64 | — |
| 10+ | £64.46 | — |
- Products Description
- Technical Specifications
UNION 2077 sashlock can be deadbolt locked or unlocked by key from either side
Features a cleverly designed double spring mechanism - the first spring powers the spring bolt when the door is closed and the second spring only applies its force to the spindle
The second spring action makes the latch well-suited to modern round bar furniture, avoiding the droop you see when an economy has been made in the specification of the latch
Bolt through fixing
Backset to keyway 38mm
Backset to follower 101.5mm
Features a cleverly designed double spring mechanism - the first spring powers the spring bolt when the door is closed and the second spring only applies its force to the spindle
The second spring action makes the latch well-suited to modern round bar furniture, avoiding the droop you see when an economy has been made in the specification of the latch
Bolt through fixing
Backset to keyway 38mm
Backset to follower 101.5mm
Product Specifications
| Anti Bump | Not Anti Bump |
| Anti Pick | No |
| Backset (mm) | 38mm |
| Bolt Through Fixing | Bolt Through Fixing |
| British Standard | No |
| Case Size (mm) | 124mm |
| CE Rated | No |
| Centres (mm) | 63.5mm |
| Certifire | No |
| Finish | Polished Brass |
| Fire Rating | No |
| Material | Solid Brass |
| Option | 3 Lever |
| Pack Quantity | 1 |
| Size (mm) | 124 x 70mm |
| Suit Door Thickness (mm) | 54mm |
| Type | 3 Lever Sashlock |
| Anti Drill | No |
| Finish Group | Brass |
| Profile | Square |
| Keyed Alike | Not Keyed Alike |
| Anti Pull | No |
| Secured by Design | No |
| UKCA Approved | No |
| Brand | Union |
| Guarantee | 10 Years |
