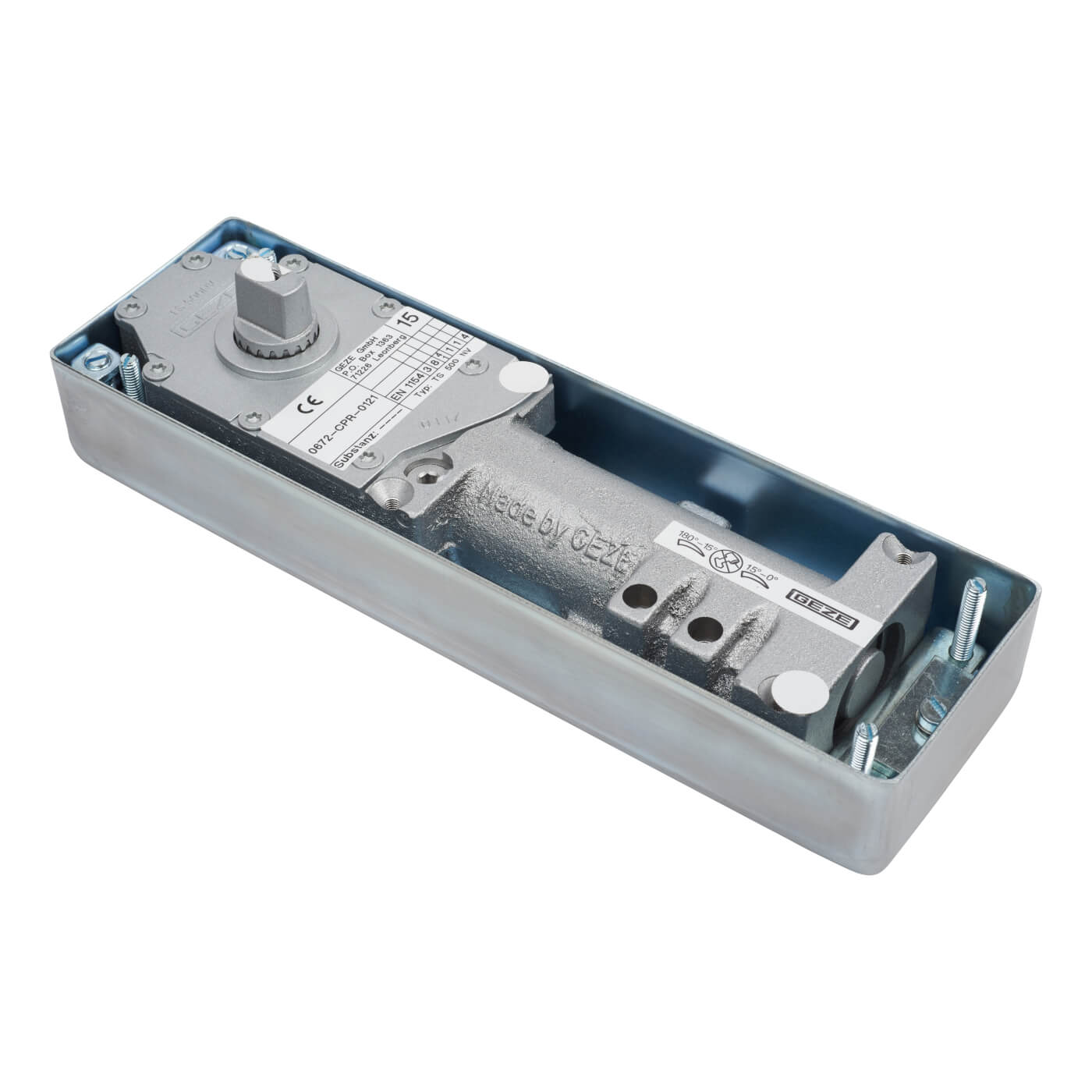

TS500NV Floor Spring Size 1-4 - Non Hold Open - Aluminium

The GEZE TS 500 NV floor spring is a high performance, concealed floor mounted door closer designed for commercial and public buildings in the UK
Combining robust functionality with a low-profile design, it ensures smooth, controlled door operation while enhancing safety, durability and compliance with UK building regulations
Its reliability and versatility make it suitable for a wide range of doors in offices, hospitals, schools, retail environments, and other high traffic public spaces
Adjustable closing force (EN 1–4), allowing precise tuning to suit varying door weights and usage
Fully adjustable closing speed ensures optimal door performance, while the hydraulic latching action accelerates the door just before it closes, guaranteeing a secure latch without slamming
Integrated back check protects doors and surrounding structures from uncontrolled opening or forceful operation
Designed for versatility, the TS 500 NV accommodates both single and double action doors, supporting a maximum door width of 1100mm and a maximum weight of 150kg.
Concealed, low-profile design (42mm height) offers aesthetic flexibility, making it ideal for both new builds and renovation projects
Adjustments can be made from above after installation, simplifying maintenance and ensuring consistent performance
Fully CE marked and approved for fire and smoke protection doors, the TS 500 NV meets EN 1154 and Certifire CF259 standards
Complies with BS 8300 and the Equality Act, providing low opening resistance and accessibility in line with inclusive design requirements
Engineered for enhanced safety and durability, the TS 500 NV reduces the risk of injury with its back check and hydraulic latching functions, while protecting door hardware from wear and impact
