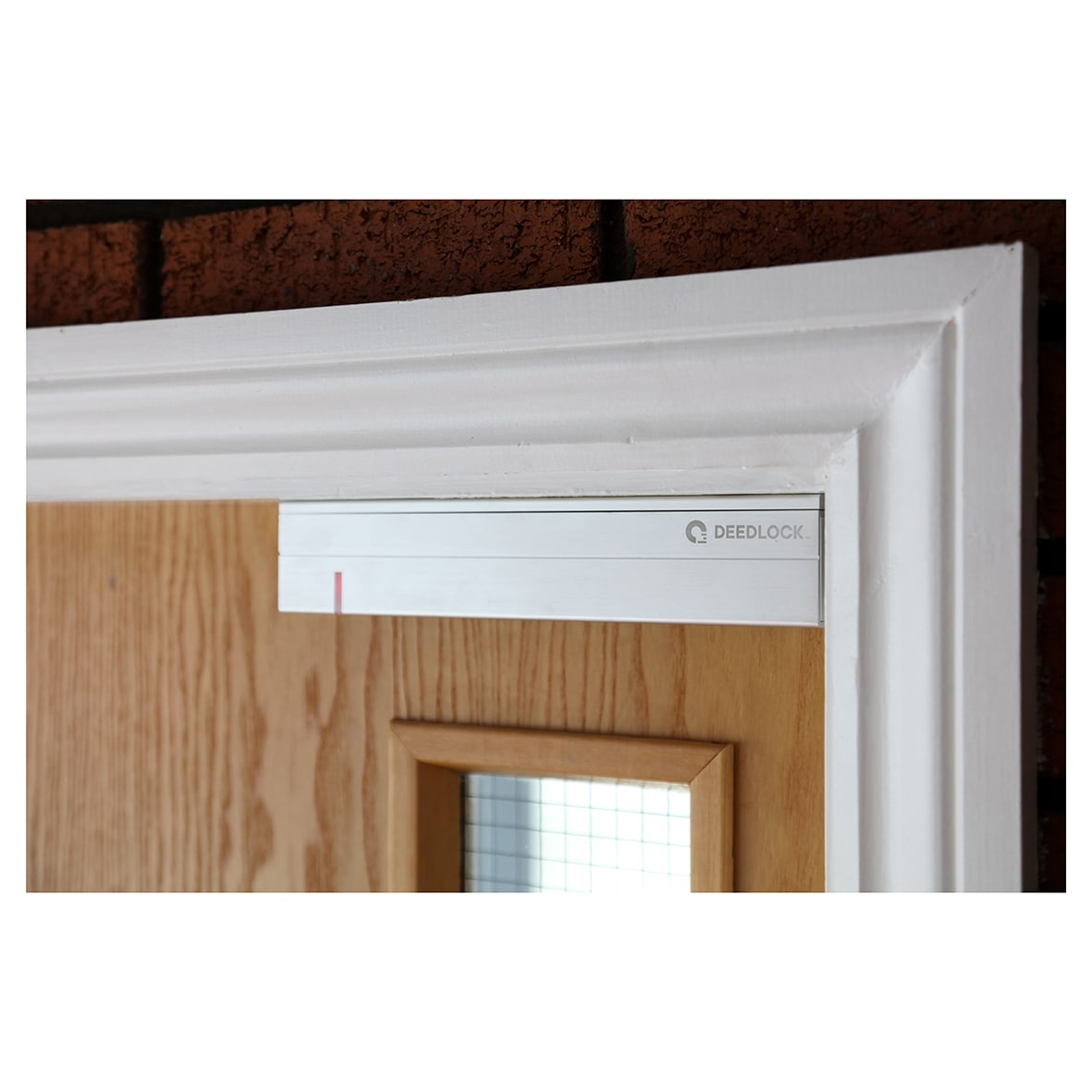

Slimline Electromagnetic Single Door Lock - 280kg Holding Force - 12/24v DC - Monitored - Aluminium
Product Code: 281289P
Slimline Electromagnetic Single Door Lock - 280kg Holding Force - 12/24v DC - Monitored - Aluminium
Product Code: 281289P
Out of Stock
£56.30
Ex. VAT: £46.92
This product is part of a range with 5 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Slimline maglock that's suitable for internal single doors, inward or outward opening
Lower profile design makes this ideal for doors with narrow frames
Monitored - can be connected to a light or sounder to let you know when the door is open or closed
For medium usage traffic applications such as small offices or shops
Pull weight up to 250kg
CE Marked
Low maintenance with no moving parts
Supplied with a kick off pin in the armature plate to overcome any residual magnetism when the power to the magnet is turned off
Safety bolts prevent the magnet from detaching from the bracket itself
Suitable for inward or outward opening doors - choose L bracket for outward opening, and Z and L bracket for inward opening
Certified to TS010 - Grade 2 - Minimum Holding Force 2000 N (450 lbf) (204 kgf)
Size: 250 x 50 x 27mm
Lower profile design makes this ideal for doors with narrow frames
Monitored - can be connected to a light or sounder to let you know when the door is open or closed
For medium usage traffic applications such as small offices or shops
Pull weight up to 250kg
CE Marked
Low maintenance with no moving parts
Supplied with a kick off pin in the armature plate to overcome any residual magnetism when the power to the magnet is turned off
Safety bolts prevent the magnet from detaching from the bracket itself
Suitable for inward or outward opening doors - choose L bracket for outward opening, and Z and L bracket for inward opening
Certified to TS010 - Grade 2 - Minimum Holding Force 2000 N (450 lbf) (204 kgf)
Size: 250 x 50 x 27mm
Product Specifications
| Depth (mm) | 27mm |
| Holding Force (kg) | 280kg |
| Length (mm) | 250mm |
| Material | Aluminium |
| Option | Lock - Single Doors Monitored |
| Pack Quantity | 1 |
| Size (mm) | 250 x 50 x 27mm |
| Type | Electromagnetic Lock |
| Width (mm) | 50mm |
| Supply Voltage (VDC) | 12-24VDC |
| Brand | Deedlock |
| Guarantee | 5 Years |
