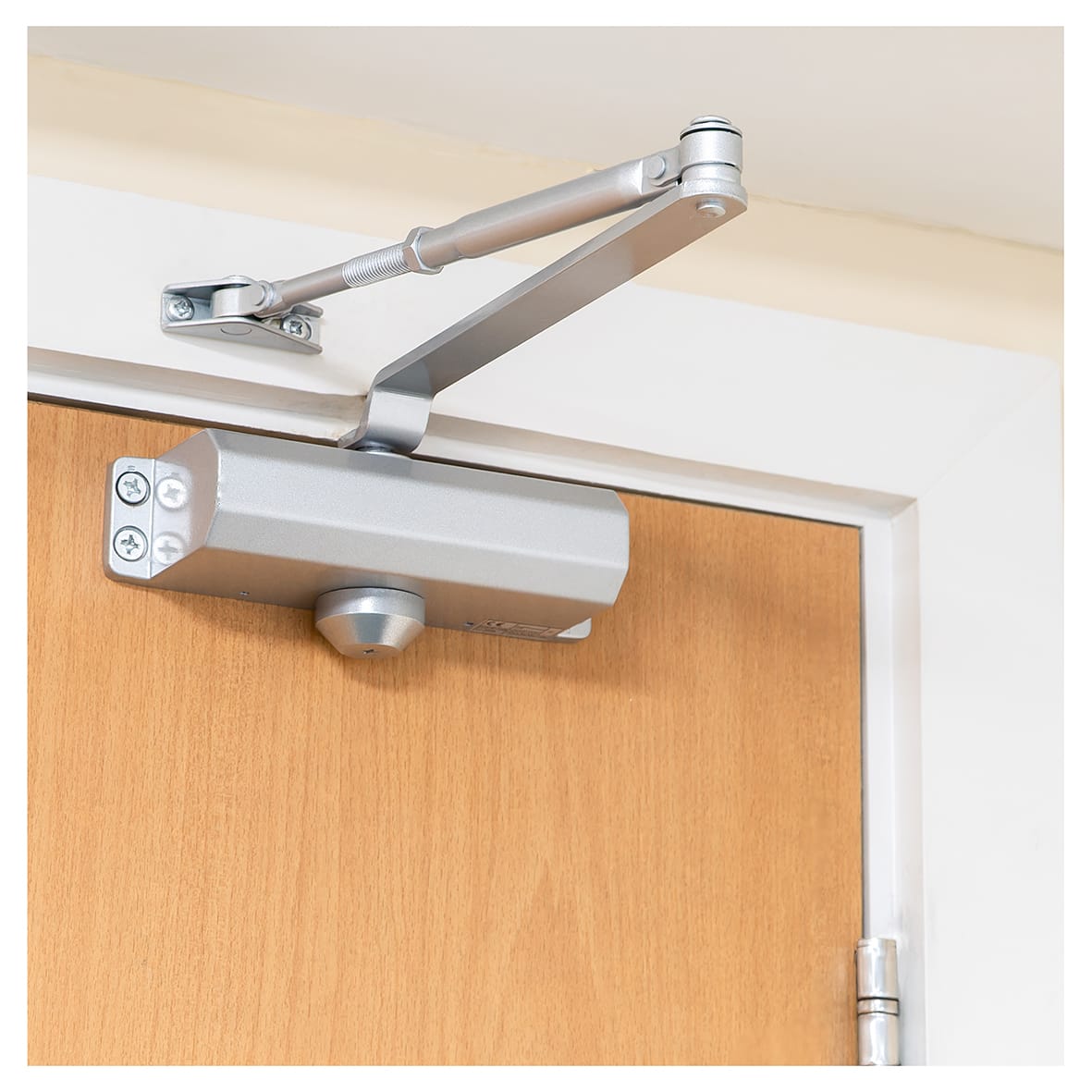

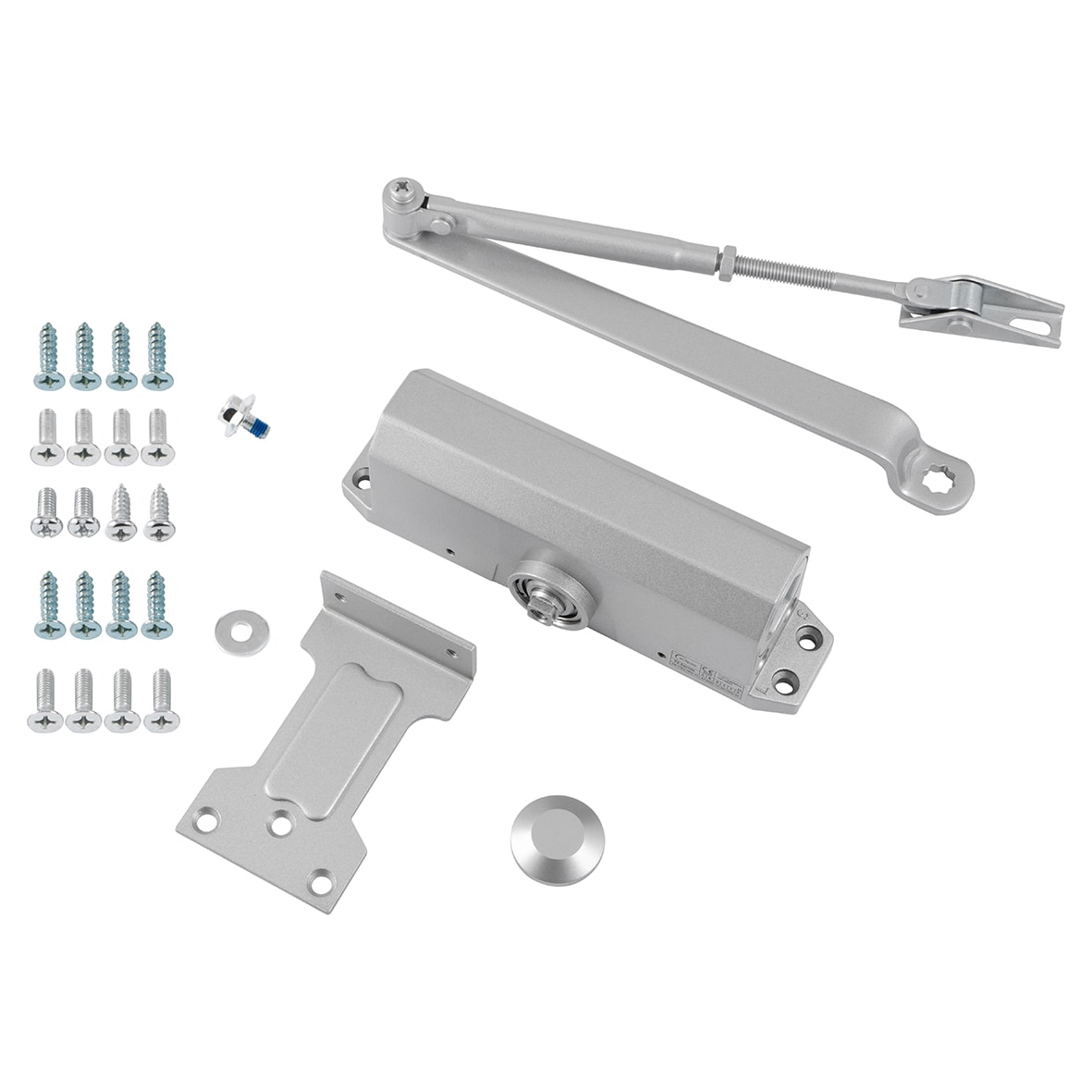

73 Series Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - Silver - Aluminium
Product Code: 185011P
73 Series Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - Silver - Aluminium
Product Code: 185011P
649 In stock
£19.44
Ex. VAT: £16.20
This product is part of a range with 8 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Fixed power, fire-tested door closer designed for dependable control across commercial and residential installations
Suitable for up to 180° figure 1 opening – ideal where maximum door opening is required
Fixed power size for consistent and reliable door control
Adjustable closing and latching speeds to ensure smooth, controlled door operation
Suitable for doors up to 60kg maximum door weight
EN1154 performance tested and EN1634 fire tested – certified for reliable operation and approved for use on fire door installations
Fire rated for 30, 60, 90 and 120 minutes, offering flexibility across a range of fire door specifications
Suitable for up to 180° figure 1 opening – ideal where maximum door opening is required
Fixed power size for consistent and reliable door control
Adjustable closing and latching speeds to ensure smooth, controlled door operation
Suitable for doors up to 60kg maximum door weight
EN1154 performance tested and EN1634 fire tested – certified for reliable operation and approved for use on fire door installations
Fire rated for 30, 60, 90 and 120 minutes, offering flexibility across a range of fire door specifications
Product Specifications
| Arm Finish | Silver |
| Backcheck | Without Backcheck |
| Cam Action | No |
| CE Rated | CE Rated |
| Certifire | Yes |
| Duty | Medium Duty |
| Finish | Silver |
| Fire Rating | 30/60/90 & 120 |
| Material | Aluminium |
| Max Door Weight (kg) | 60kg |
| Option | Fig 66 - Push/Pull Side Mounting |
| Range | 73 Series |
| Type | Closer - Overhead |
| Max Door Width (mm) | 950mm |
| Delayed Action | Without Delayed Action |
| Power Size | EN 3 |
| UKCA Approved | Yes |
| Track Arm | No |
| Brand | Eclipse |
| Cover | Without Cover |
| Guarantee | 10 Years |
