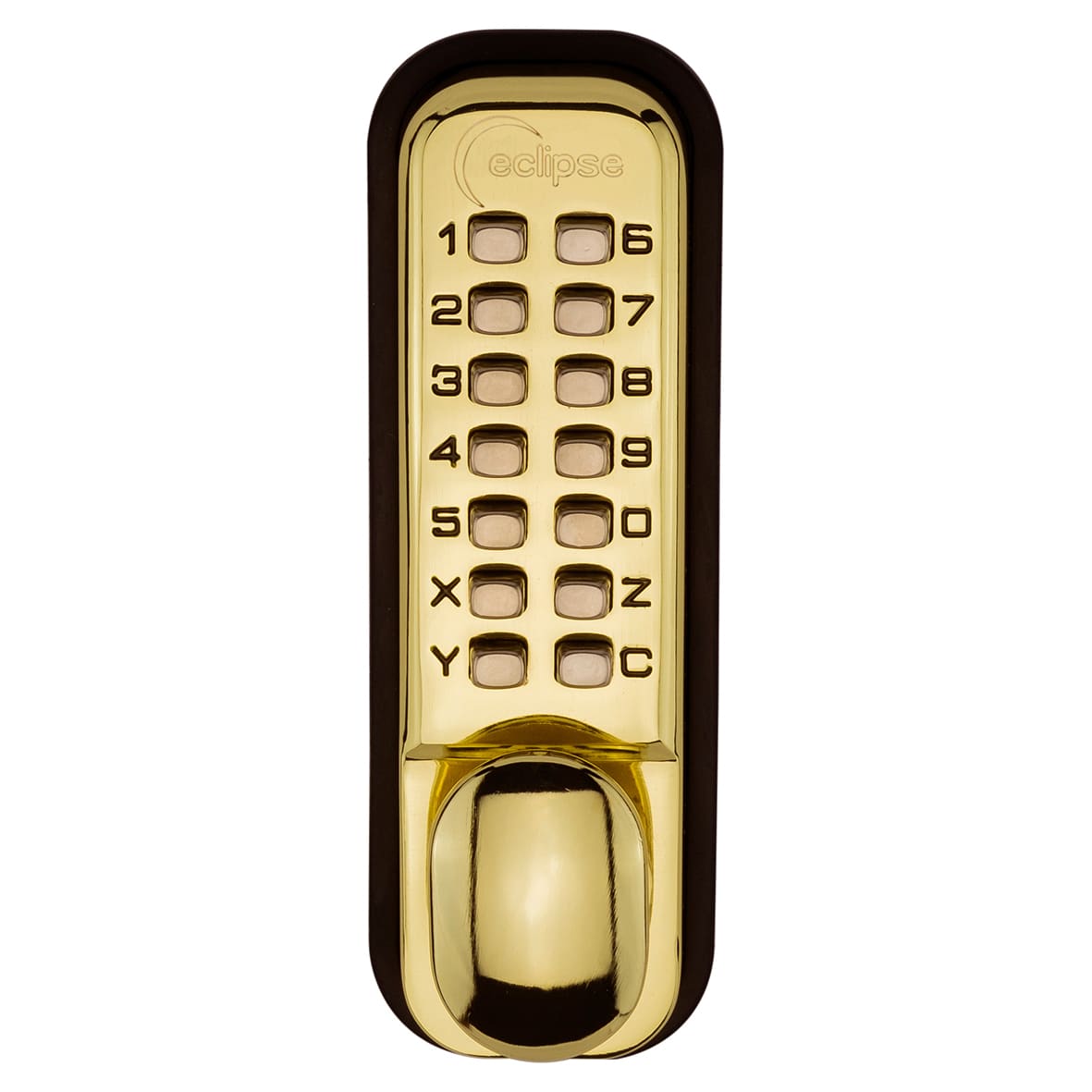

Easy Code Push Button Digital Code Lock - Holdback Option - Polished Brass - Zinc Alloy
Product Code: 297472P
Easy Code Push Button Digital Code Lock - Holdback Option - Polished Brass - Zinc Alloy
Product Code: 297472P
84 In stock
£47.74
Ex. VAT: £39.78
This product is part of a range with 8 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
A mechanical digital push button code lock for medium and light duty entry doors

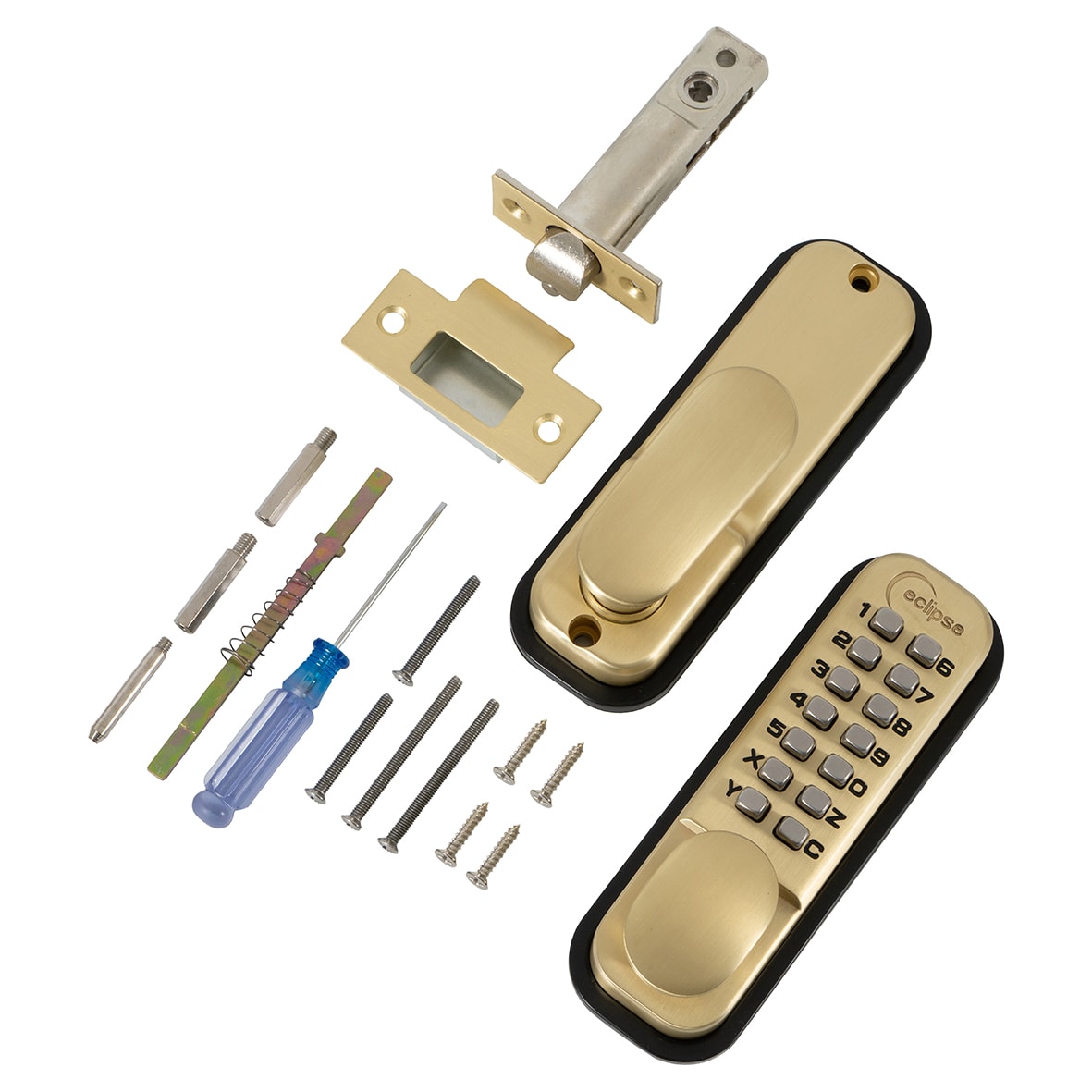

Supplied with a 60mm backset latch bolt
Testing: BS EN 1634-1. For use on 60 minute timber fire doors (Only if installed with intumescent pack. Sold separately)
Suits 33-55mm thick doors
800+ individual codes
Code length: 5 Digits (4 numbers + 1 letter)
Reversible handing
Holdback function for temporary free movement
No code-free function or key override
All mechanical code locks use non-sequential codes, which means the 5-digit code can be entered in any order - e.g. 1234Y can be 4321Y or 1342Y. This is a lower security option than electronic locks but makes them ideal for smaller businesses or premises looking for the convenience and security of access control on a smaller budget
For intumescent to suit, search for 'Vanquish flexifire intumescent'
Supplied with a 60mm backset latch bolt
Testing: BS EN 1634-1. For use on 60 minute timber fire doors (Only if installed with intumescent pack. Sold separately)
Suits 33-55mm thick doors
800+ individual codes
Code length: 5 Digits (4 numbers + 1 letter)
Reversible handing
Holdback function for temporary free movement
No code-free function or key override
All mechanical code locks use non-sequential codes, which means the 5-digit code can be entered in any order - e.g. 1234Y can be 4321Y or 1342Y. This is a lower security option than electronic locks but makes them ideal for smaller businesses or premises looking for the convenience and security of access control on a smaller budget
For intumescent to suit, search for 'Vanquish flexifire intumescent'
Product Specifications
| Backset (mm) | 60-70mm |
| Code Change | Off Door - Easy |
| Code Free Function | Without Code Free Function |
| Finish | Polished Brass |
| Fire Rating | No |
| Material | Zinc Alloy |
| Model | ED20 |
| Option | Knob/Lever |
| Pack Quantity | 1 |
| Suit Door Thickness (mm) | 35-55mm |
| Type | Mechanical Code Lock |
| Hand | Reversible |
| Use | Interior & Exterior |
| Code Length | 5 |
| Key Override | Without Key Override |
| Hold Back Function | With Hold Back Function |
| Individual Codes | 800+ |
| Brand | Eclipse |
| Guarantee | 5 Years |
