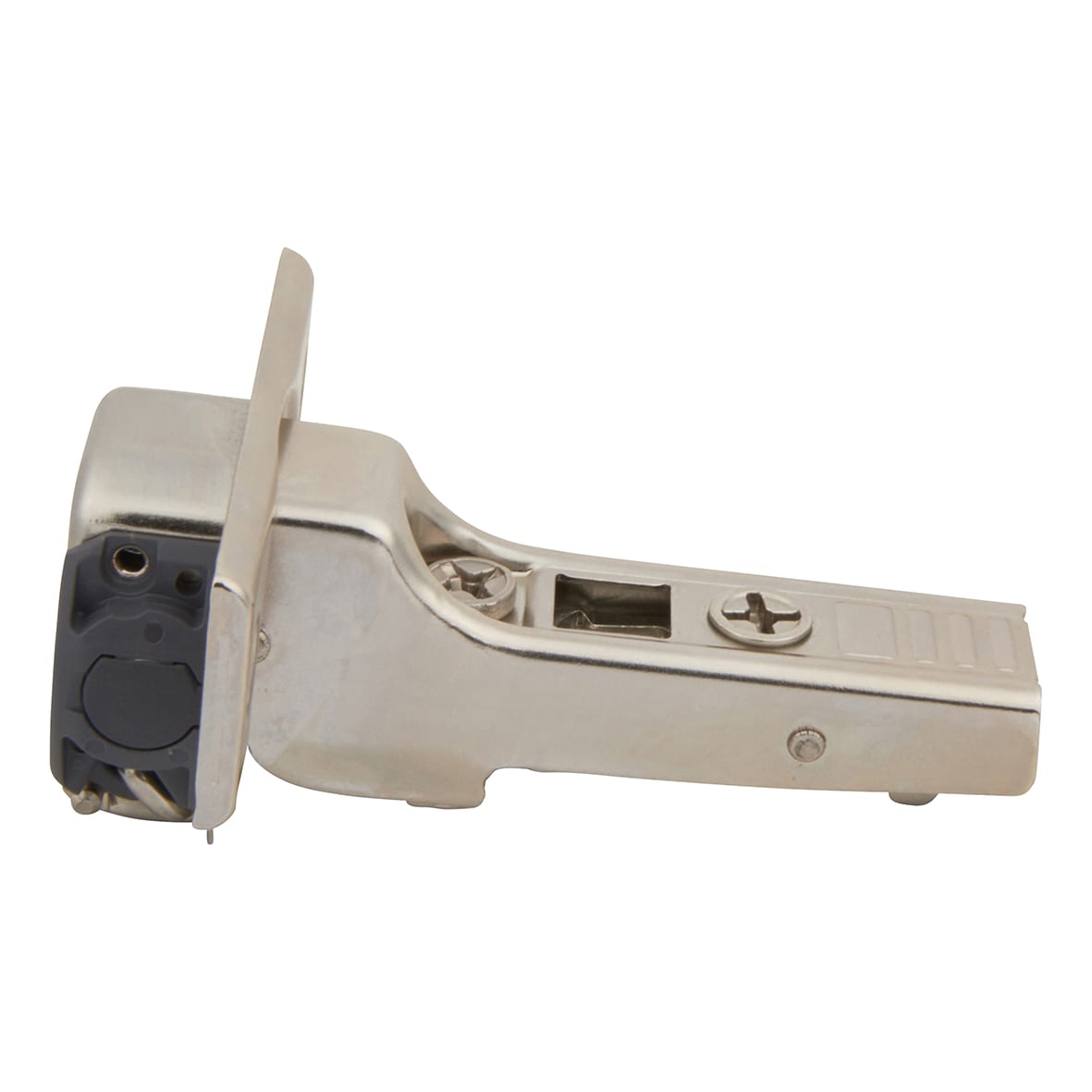

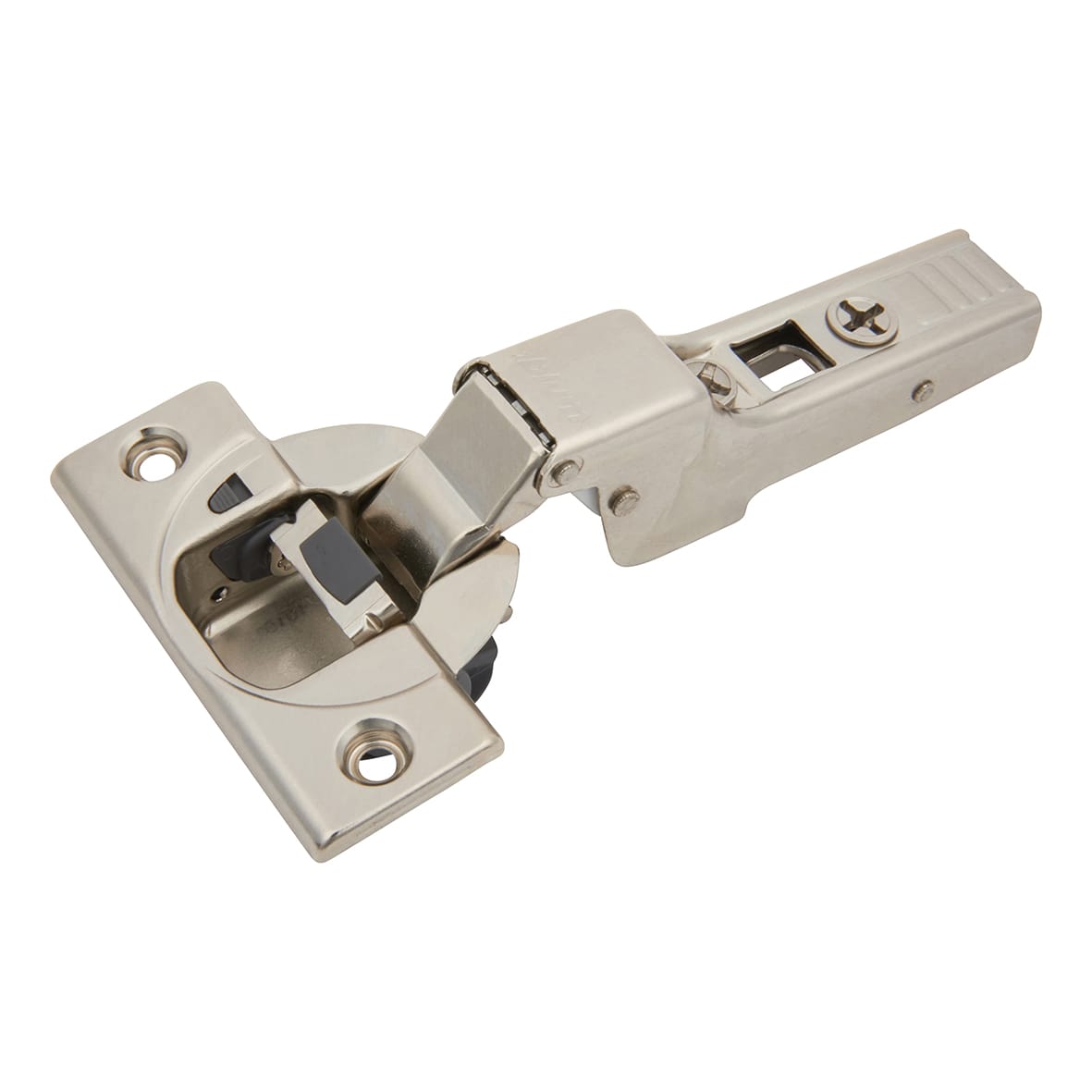

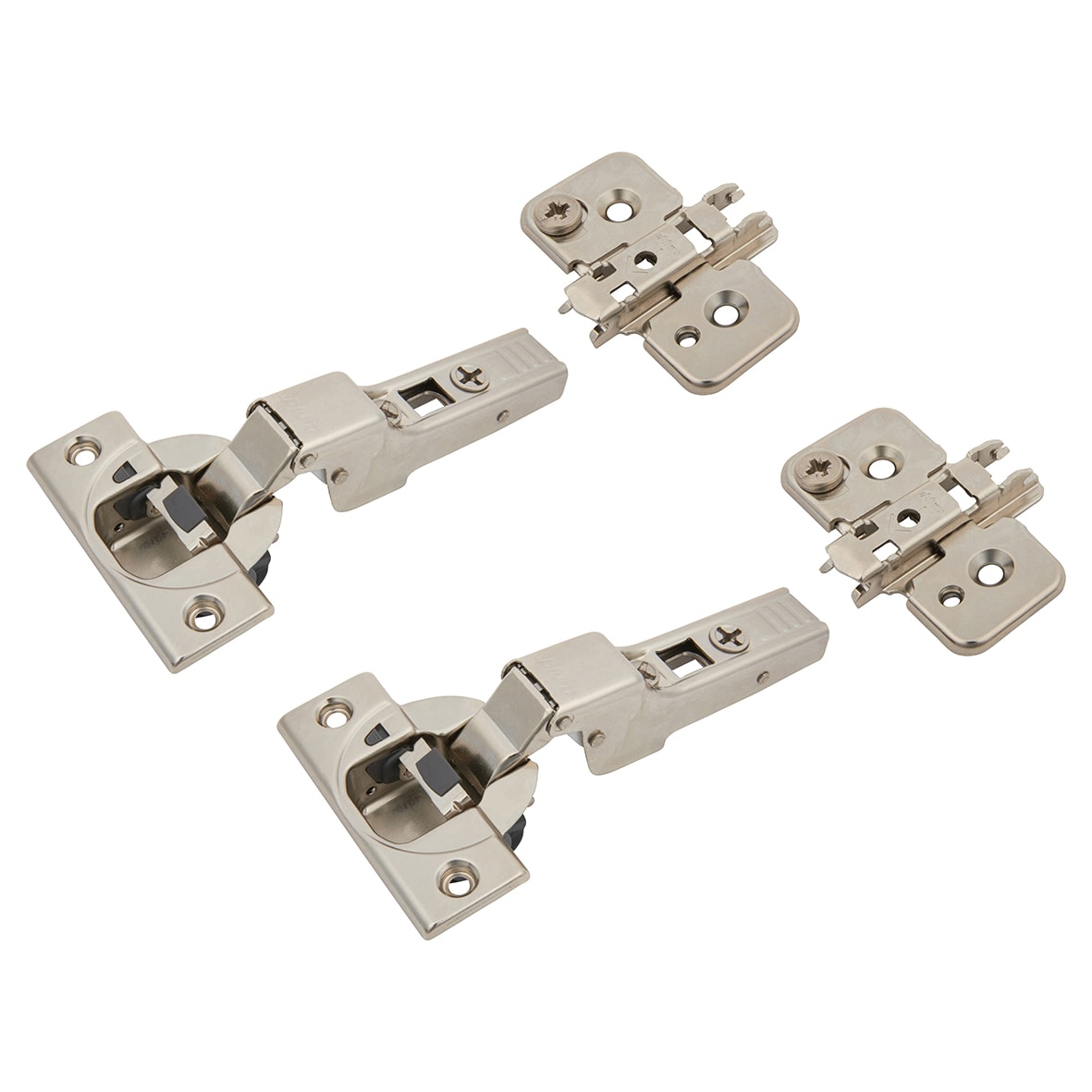

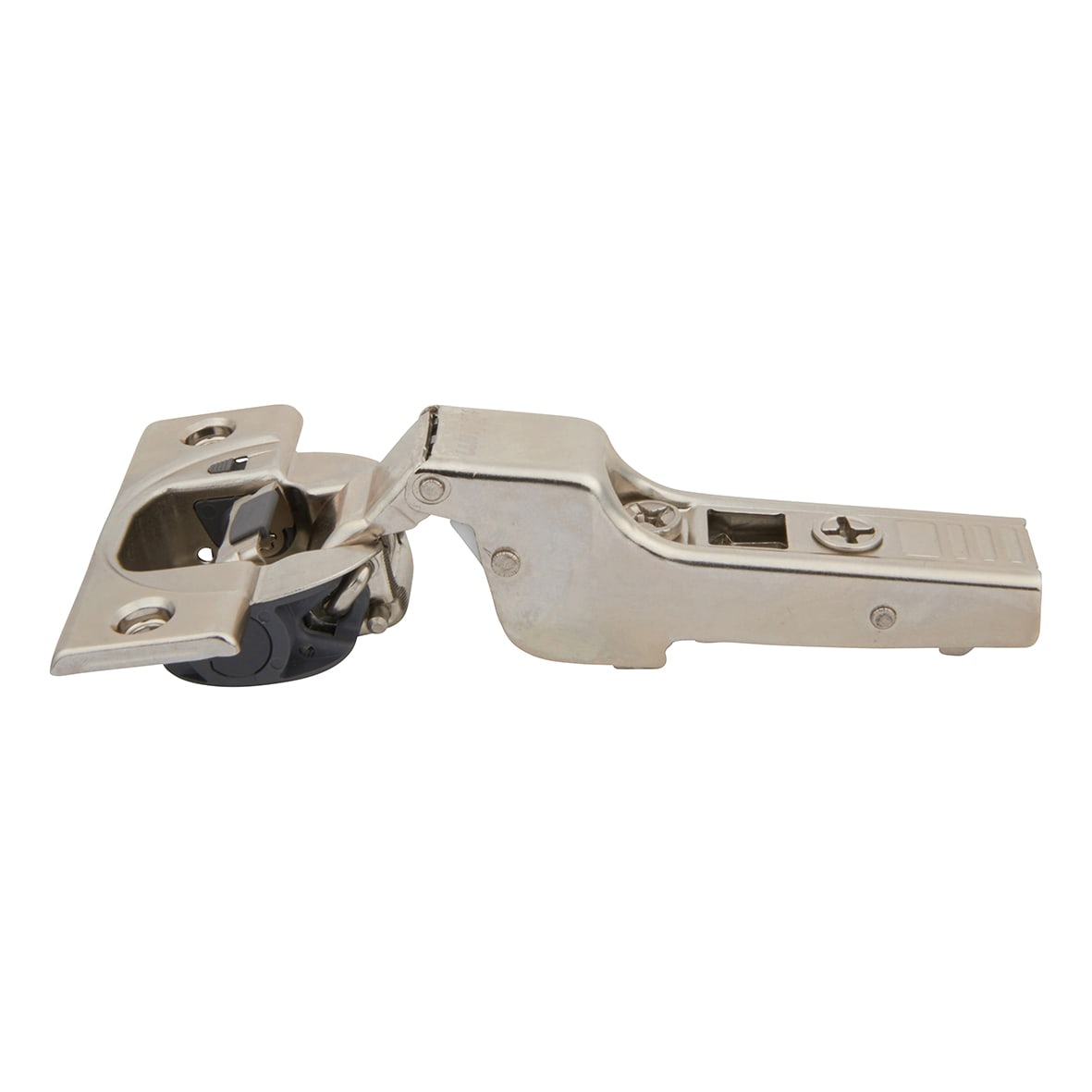

CLIP Top Soft Close Cabinet Hinge Pack with 0mm Mounting Plates - 110° - Half Overlay - Pair - Mild Steel
Product Code: 583791P
CLIP Top Soft Close Cabinet Hinge Pack with 0mm Mounting Plates - 110° - Half Overlay - Pair - Mild Steel
Product Code: 583791P
4 In stock
£14.40
Ex. VAT: £12.00
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Blum Part Code: 71B3650
Ideal for use on kitchen cabinets, bathroom cabinets & furniture cabinets
Half overlay - where two cabinet doors meet in the middle of a carcass
Blumotion: Includes integrated soft close
Diameter: 35mm
Arm cover plates to be ordered separately

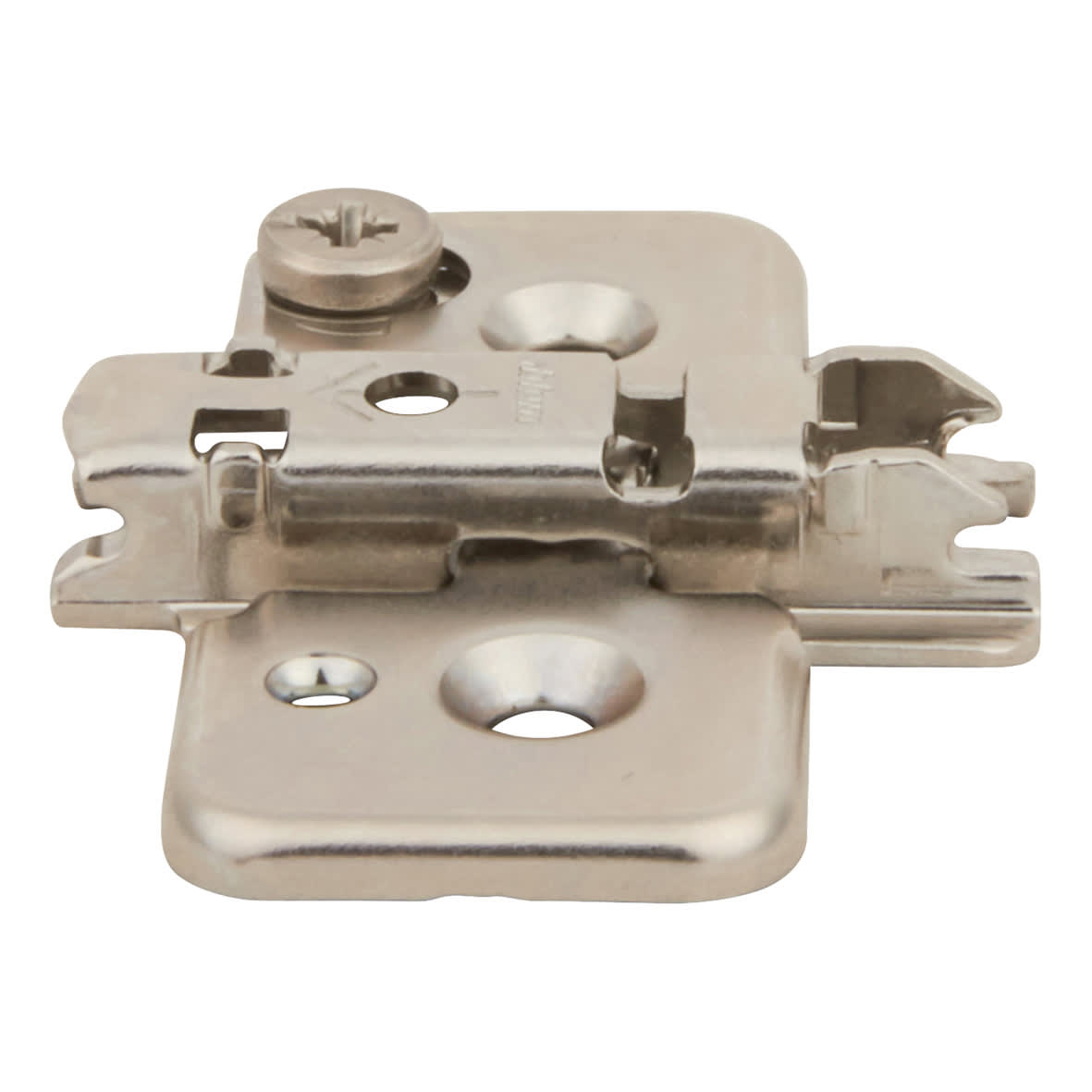

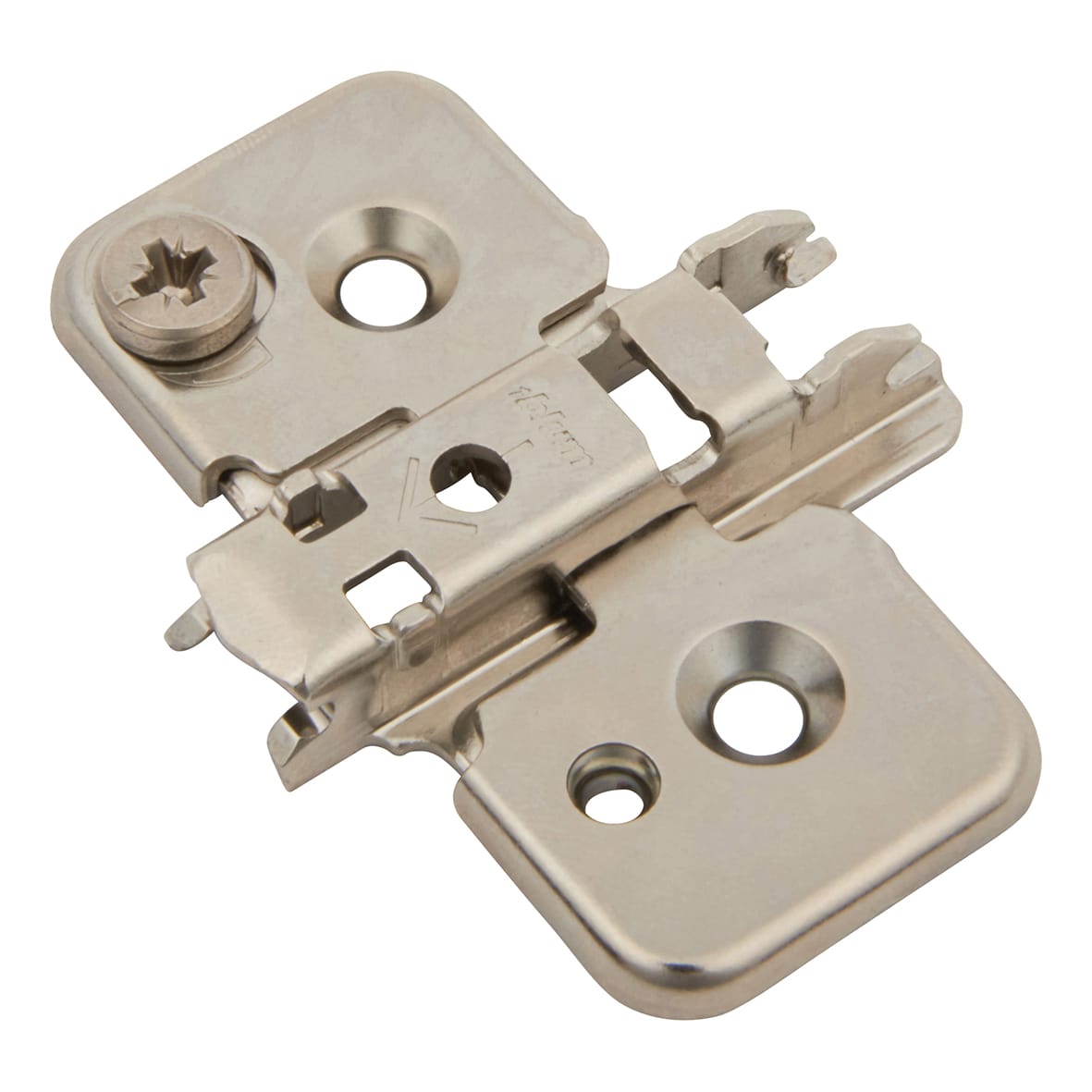

Supplied with a 0mm spacing mounting plate to suit a 18mm carcass
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Ideal for use on kitchen cabinets, bathroom cabinets & furniture cabinets
Half overlay - where two cabinet doors meet in the middle of a carcass
Blumotion: Includes integrated soft close
Diameter: 35mm
Arm cover plates to be ordered separately
Supplied with a 0mm spacing mounting plate to suit a 18mm carcass
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Product Specifications
| Application | Half Overlay |
| Depth Adjustment (mm) | -1.5mm |
| Finish | Zinc Plated |
| Fixing Method | Clip On |
| Material | Mild Steel |
| Option | Hinge and Mounting Plate Set |
| Pack Quantity | 2 |
| Range | CLIP top BLUMOTION |
| Suit Door Thickness (mm) | 16-26mm |
| Type | Concealed Kitchen Cabinet Hinge |
| Soft Close | Yes |
| Opening Angle | 110° |
| Brand | Blum |
| Guarantee | Lifetime Years |
