RADAR Lockset - 52mm Backset - 78mm Case - Reversible - Brushed Stainless Steel - 304 Stainless Steel

Disability Right UK, formally RADAR, promotes a UK national scheme, whereby specially manufactured locks are fitted to toilets and can only be operated using a RADAR key
The National Key Scheme (NKS) offers disabled people independent access to locked public toilets around the country

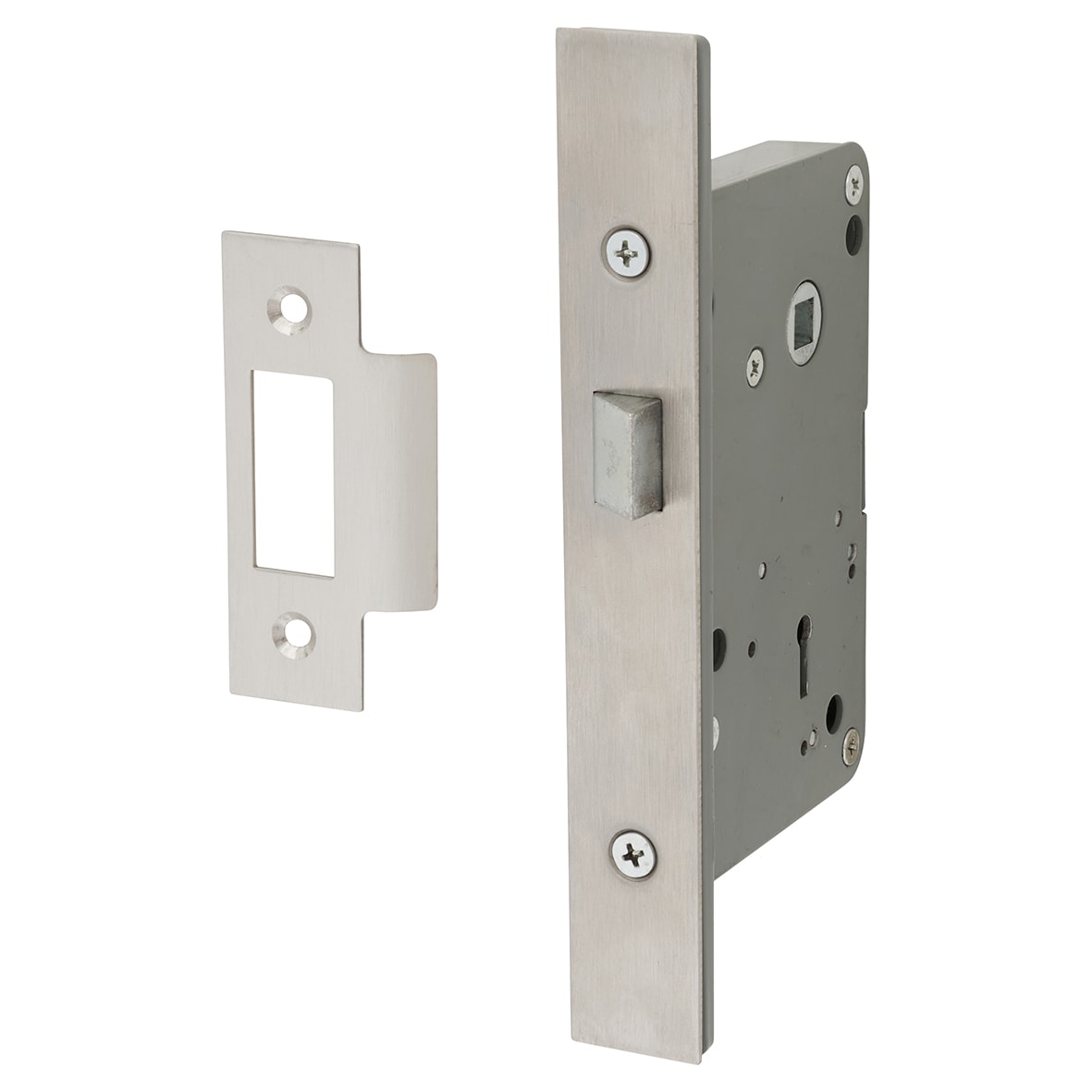

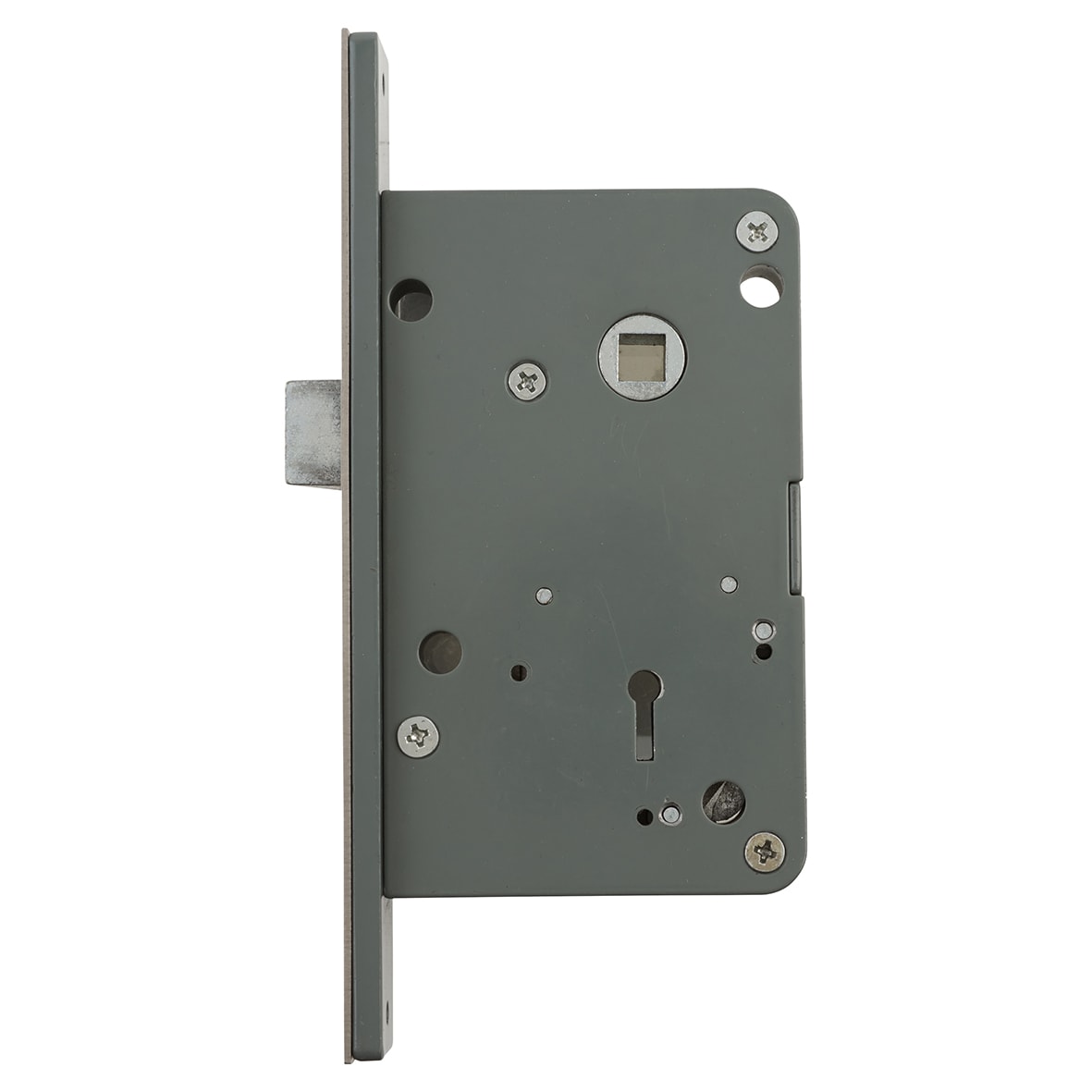

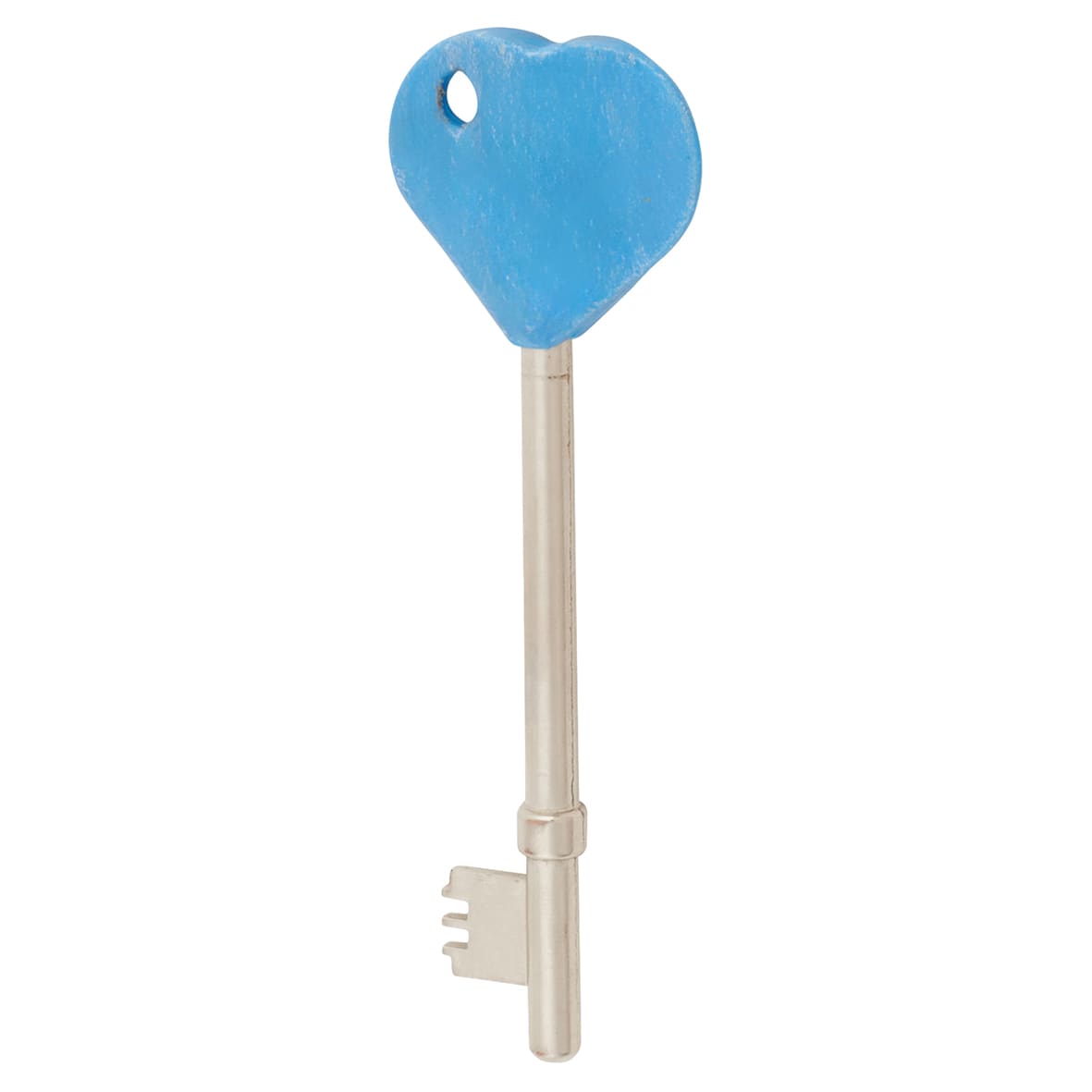

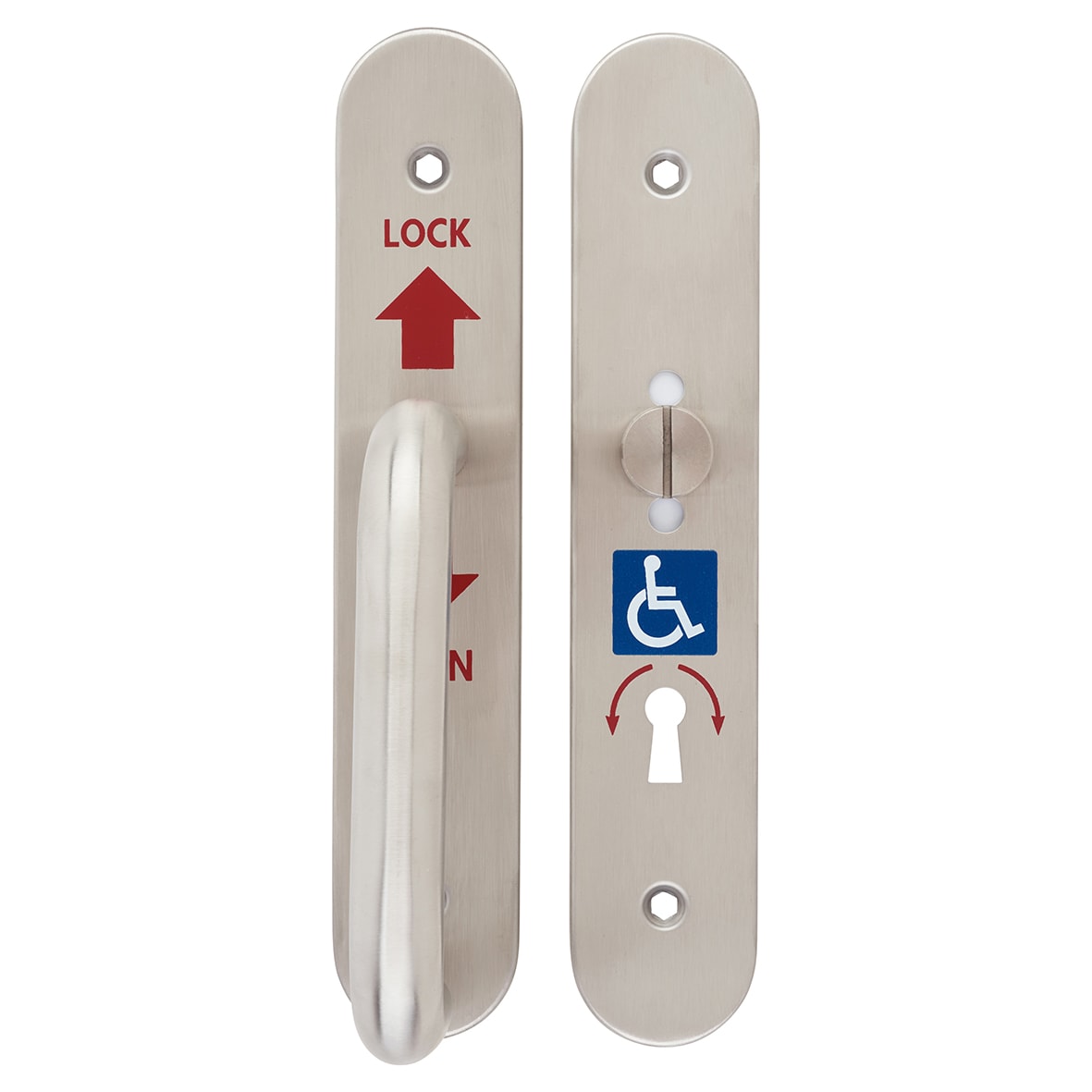

This is a 5th generation lockset and is supplied with a 6 lever mortice lock with engraved door furniture incorporating an external indicator and emergency coin release and one blue heart comfort key
The 5th generation lock is a retrofit for existing RADAR locks so no alterations are required when replacing
It should be remembered that the RADAR lock is a basic system and is not designed as or intended for use as a high security lock
Latch bolt can be easily reversed for inward or outward opening doors by removing the front plate and turning the latch
In order to comply with BS8300 the lever handle should be fitted between 800mm and 1050mm above the floor (1000mm preferred)

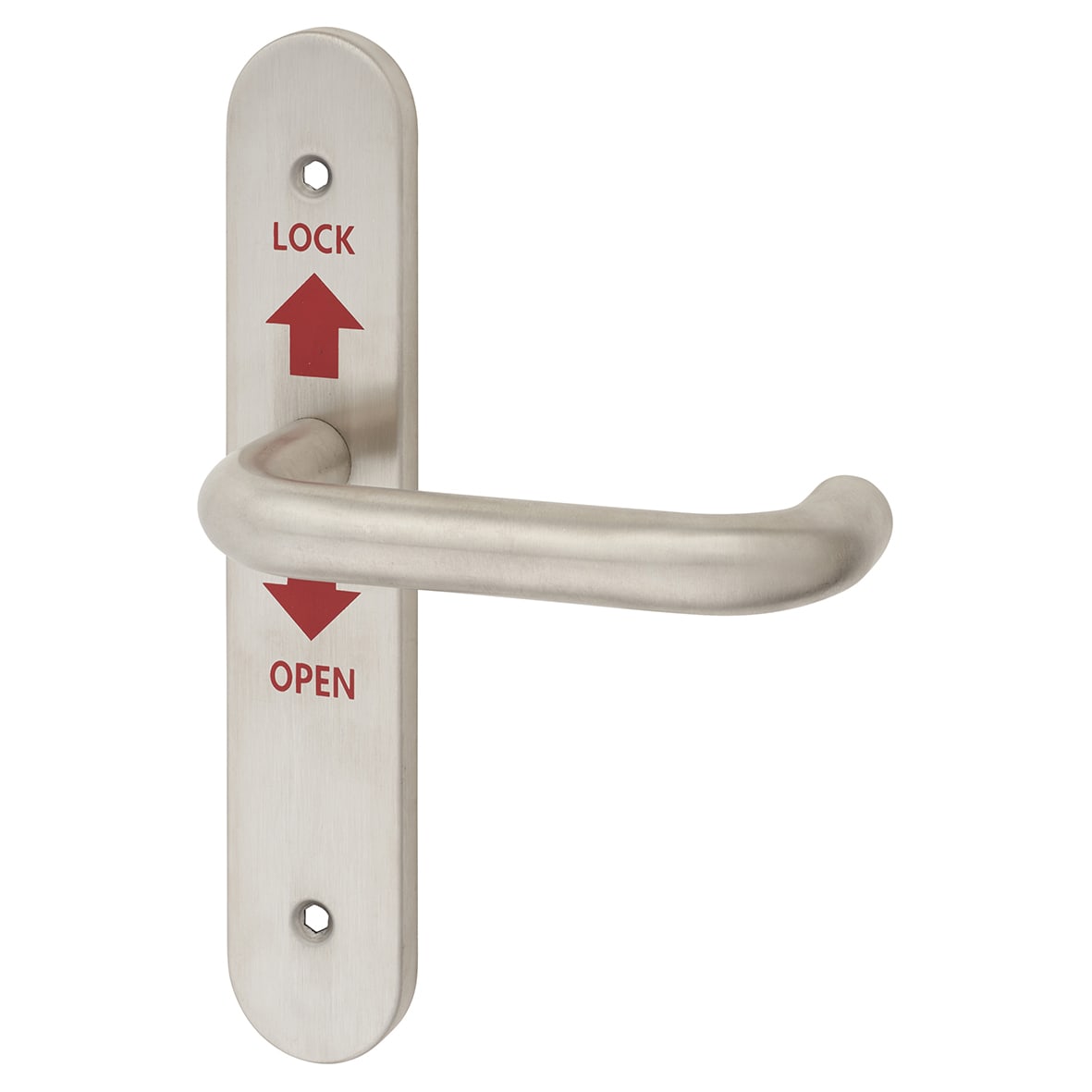

The door is opened from the outside, by use of the RADAR key, when the external indicator is white. Once inside, the door is locked by lifting the lever upwards, which changes the external indicator to red. (N.B. keys will not unlock door when the indicator shows red). On exiting, the door is opened by pushing the lever down, which also returns the external indicator to white
These keys are available to disabled or registered blind people to enable them to access the facilities. This gives protection against vandalism or misuse, so that a clean functional toilet is available

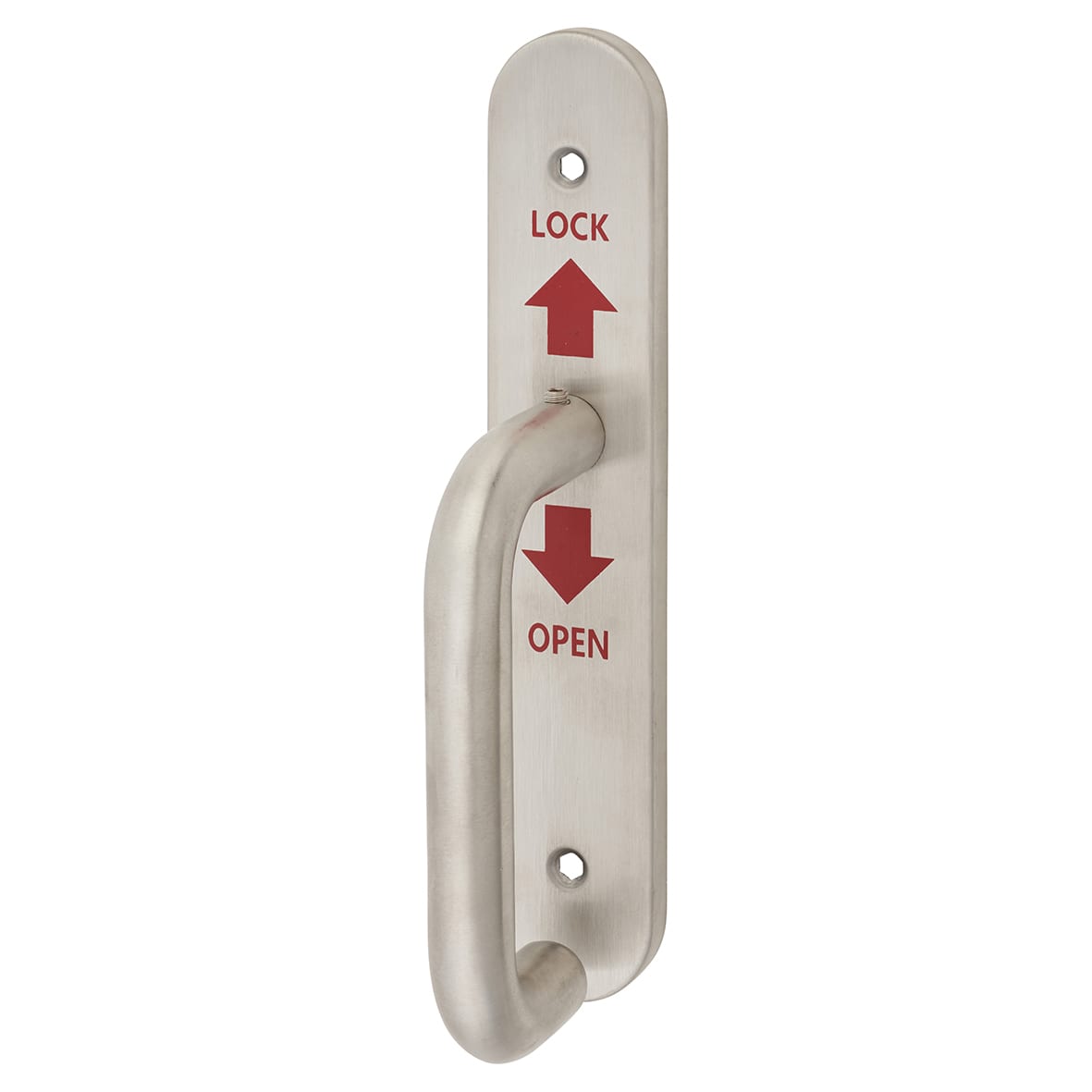

Return to door safety lever handle to comply with BS8300

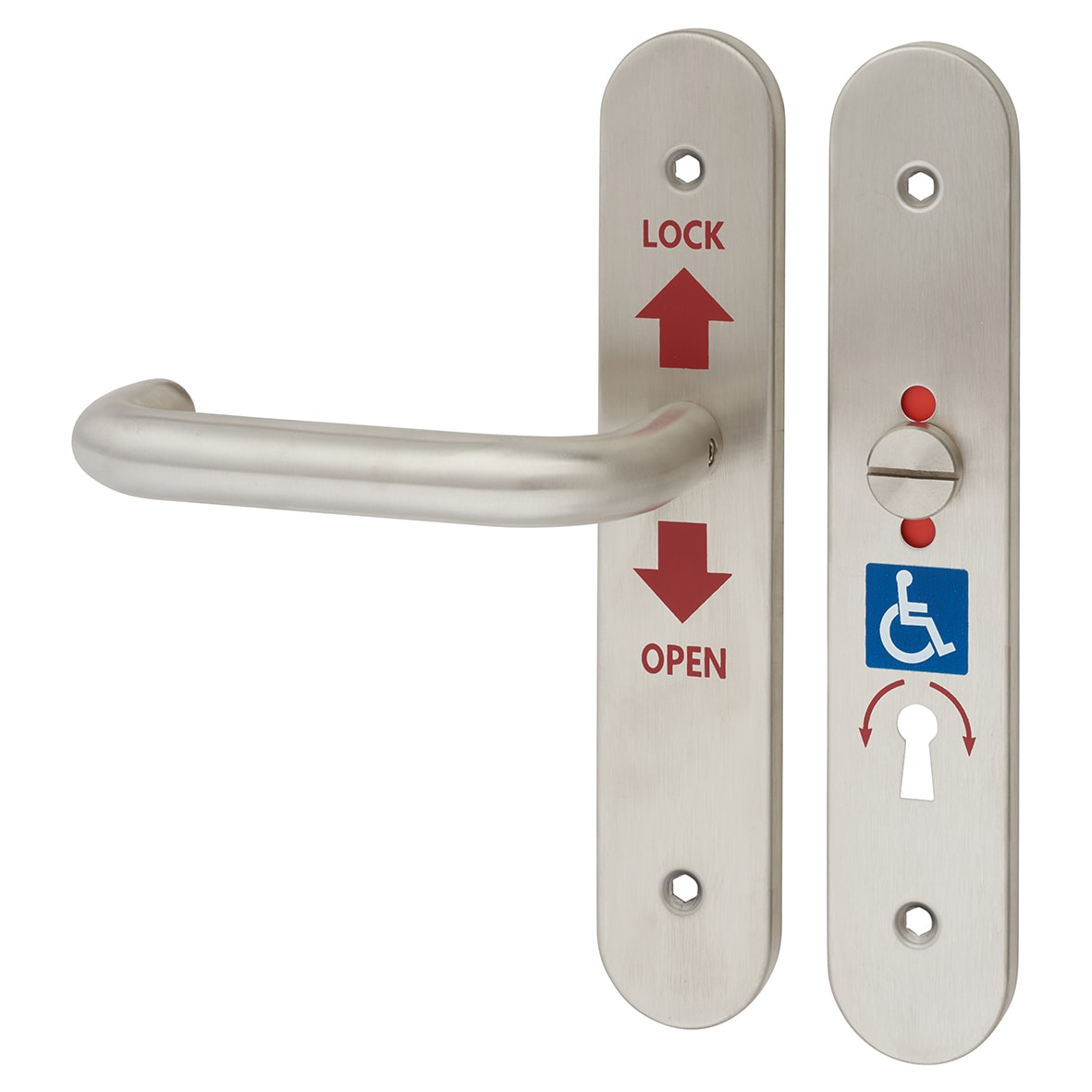

External indicator to show facilities are in use
External emergency coin release

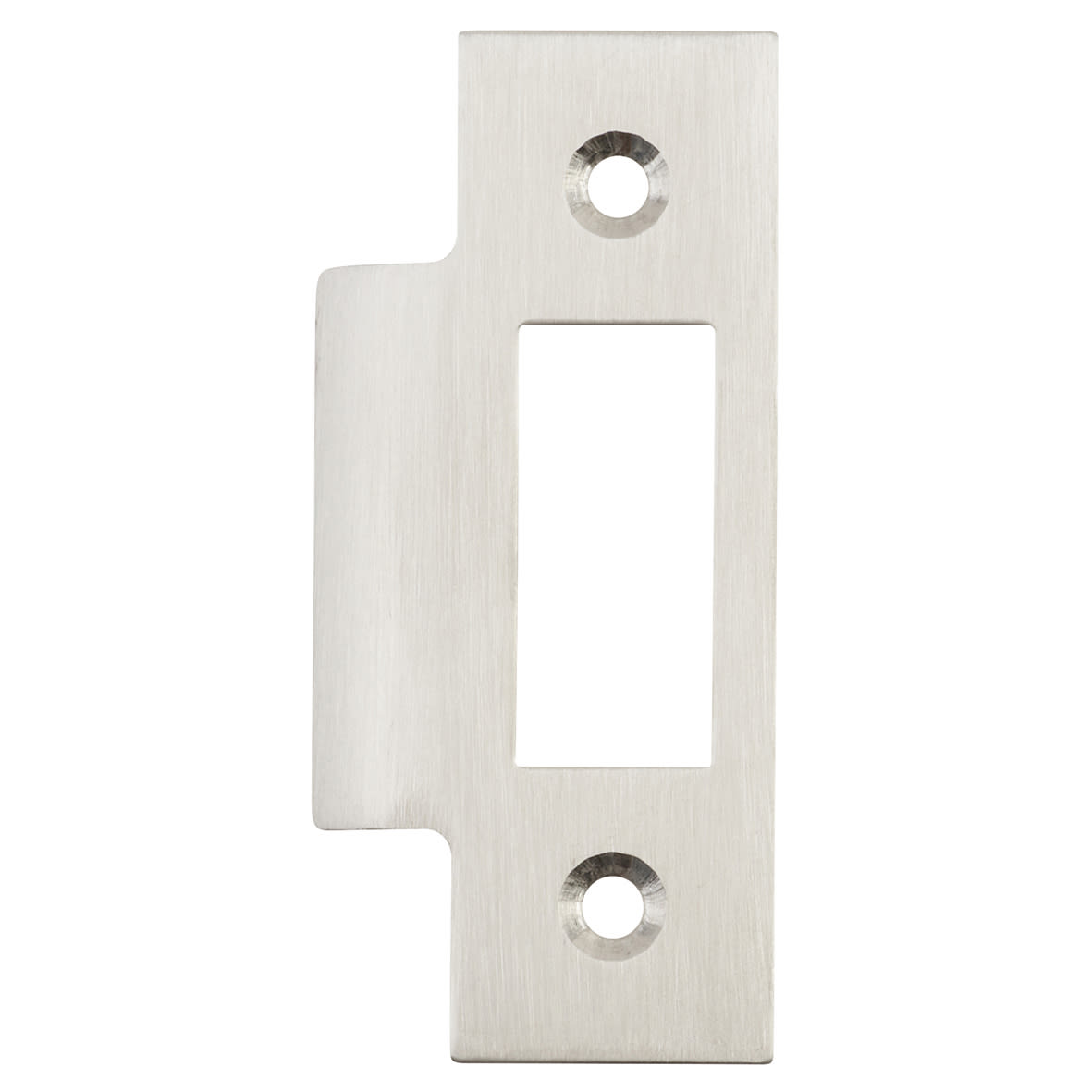

Reversible latch bolt for inward or outward opening doors

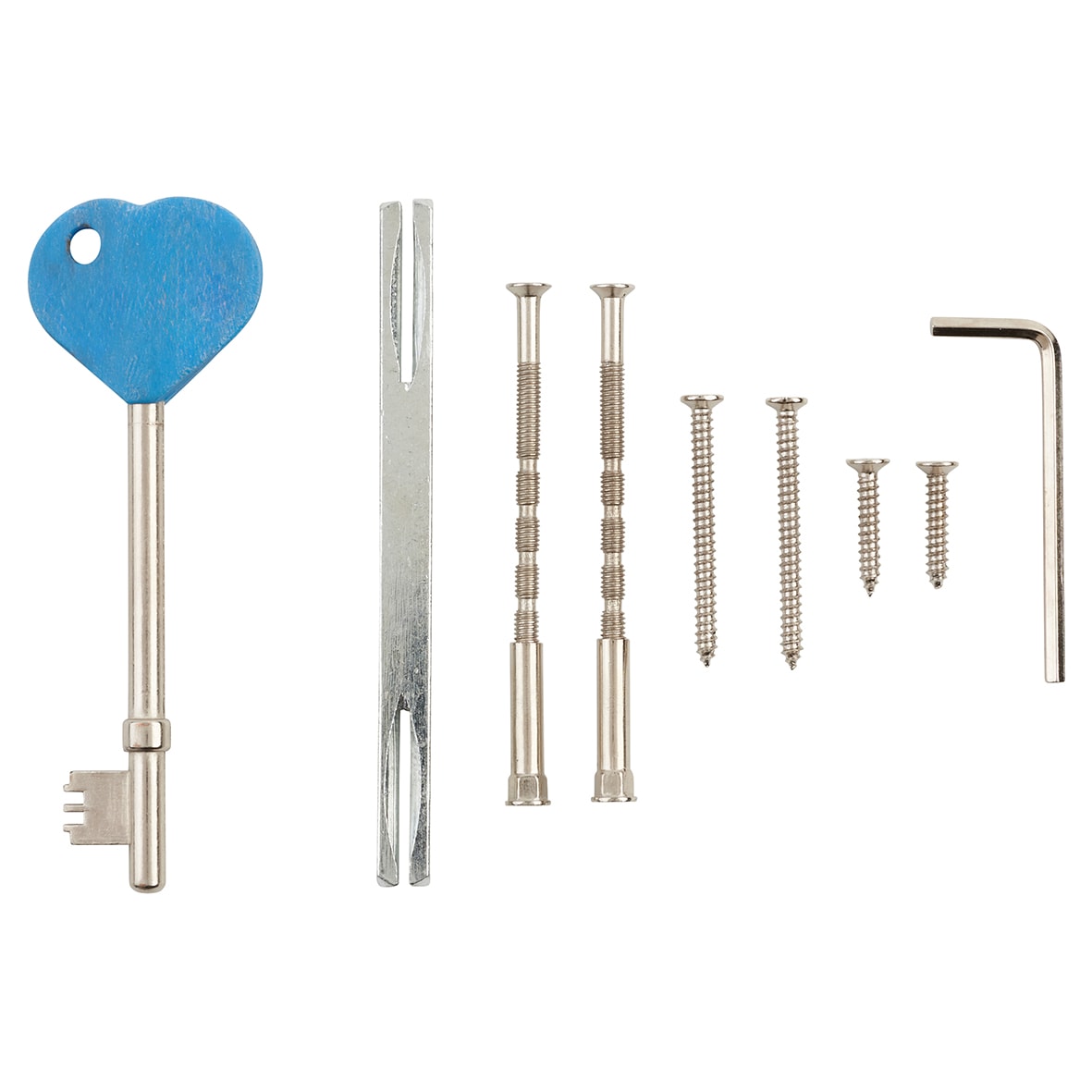

Bolt through fixings to prevent lock being removed for the outside
Lockset vinyl surround provides a colour contrast to aid those with visual impairments
