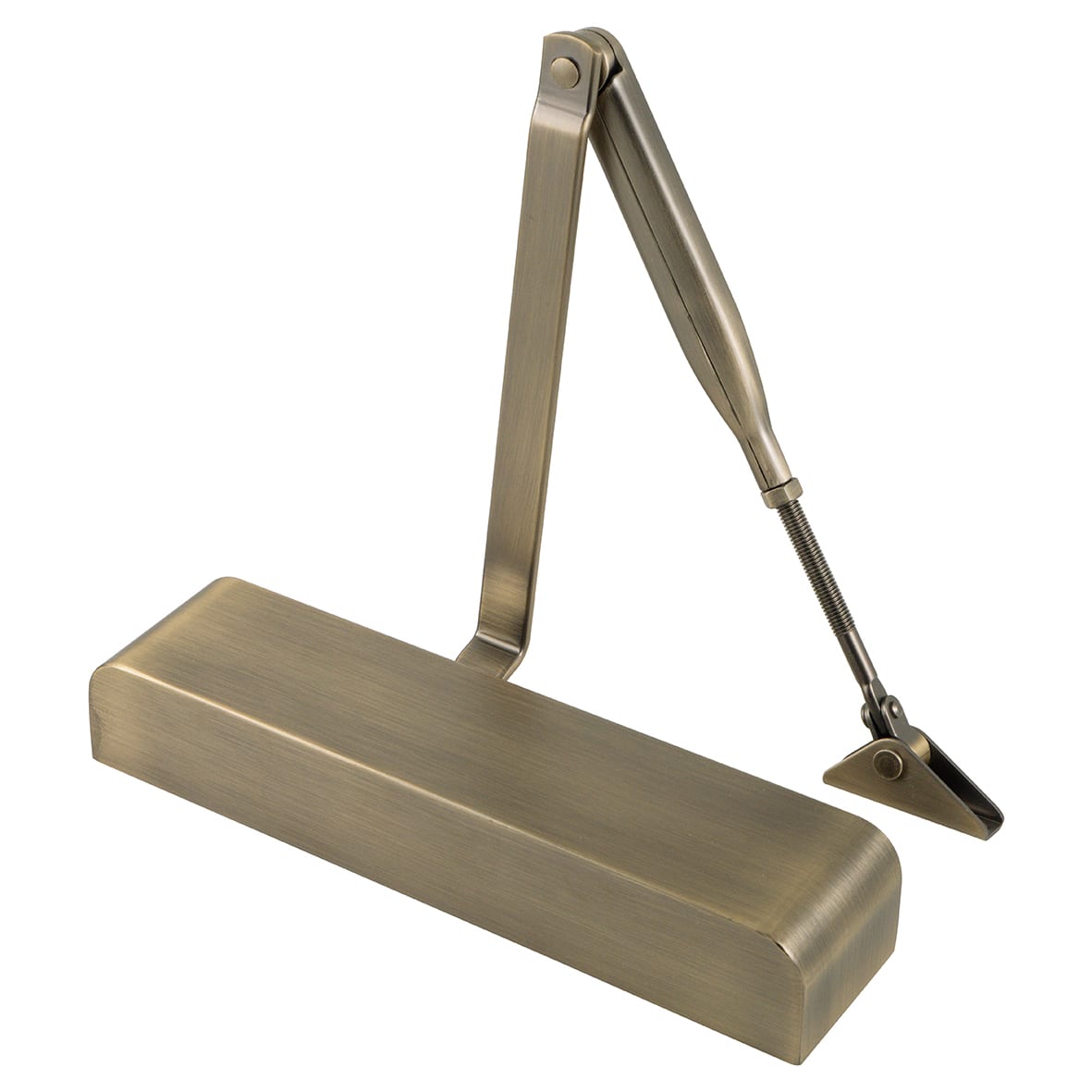

83 Series Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Antique Brass - Aluminium
Product Code: 933117P
83 Series Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Antique Brass - Aluminium
Product Code: 933117P
29 In stock
£72.00
Ex. VAT: £60.00
This product is part of a range with 9 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Reliable, fire-tested door control with adjustable power for versatile installation across commercial and residential applications
Suitable for up to 180° figure 1 opening – ideal where maximum door opening is required
Adjustable power size EN 2–4 with template adjustment – allows accurate installation and easy on-site setting to suit a range of door widths and application requirements
Fully adjustable closing speed to provide smooth, controlled door operation

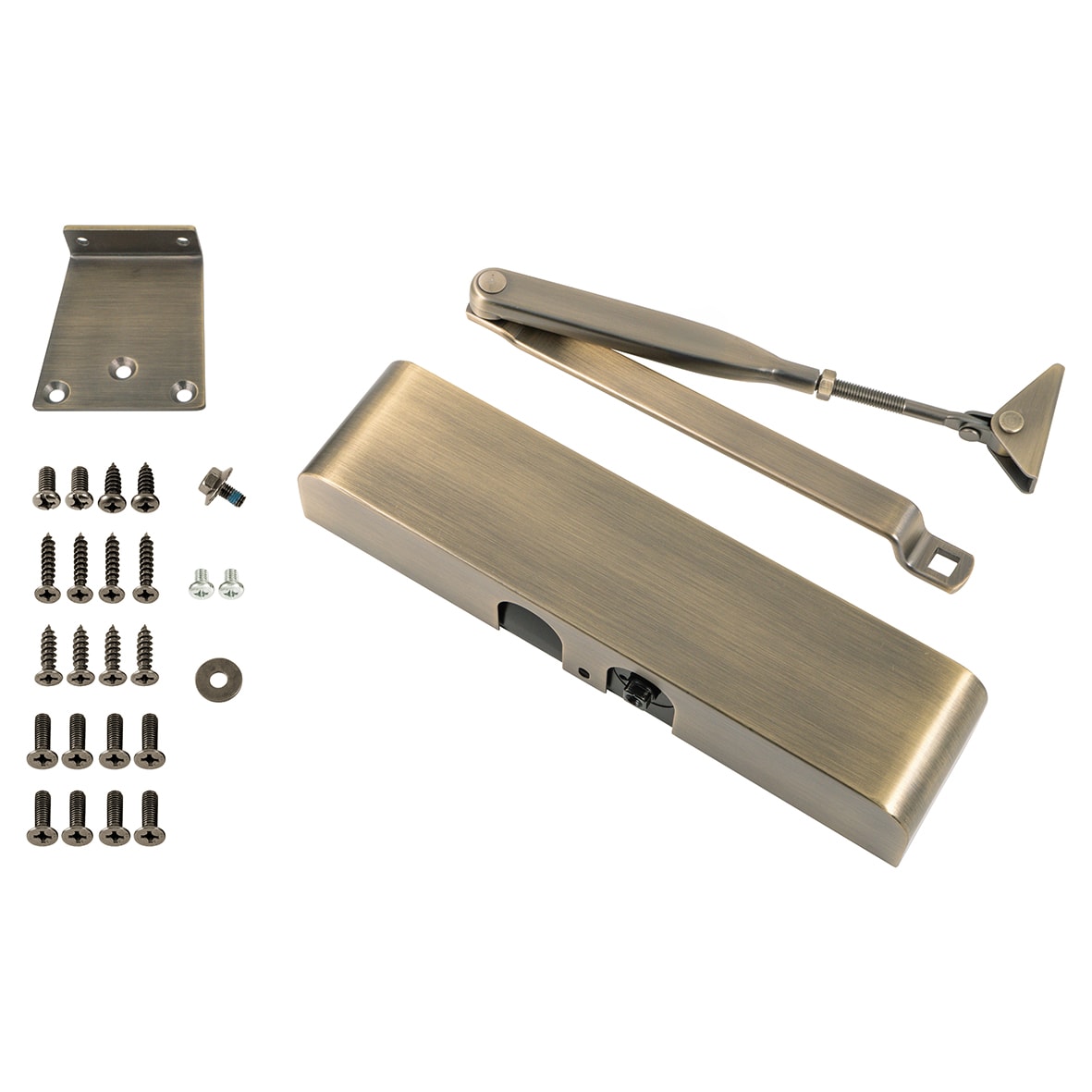

Supplied with a cover in an antique brass finish for a classic, decorative appearance
Suitable for doors up to 80kg maximum door weight
EN1154 performance tested and EN1634 fire tested – certified for reliable operation and approved for use on fire door installations
Fire rated for 30, 60, 90 and 120 minutes, offering flexibility across a range of fire door specifications
Suitable for up to 180° figure 1 opening – ideal where maximum door opening is required
Adjustable power size EN 2–4 with template adjustment – allows accurate installation and easy on-site setting to suit a range of door widths and application requirements
Fully adjustable closing speed to provide smooth, controlled door operation
Supplied with a cover in an antique brass finish for a classic, decorative appearance
Suitable for doors up to 80kg maximum door weight
EN1154 performance tested and EN1634 fire tested – certified for reliable operation and approved for use on fire door installations
Fire rated for 30, 60, 90 and 120 minutes, offering flexibility across a range of fire door specifications
Product Specifications
| Arm Finish | Antique Brass |
| Backcheck | Without Backcheck |
| Cam Action | No |
| CE Rated | CE Rated |
| Certifire | Yes |
| Duty | Medium Duty |
| Finish | Antique Brass |
| Fire Rating | 30/60/90 & 120 |
| Material | Aluminium |
| Max Door Weight (kg) | 80kg |
| Option | Fig 66 - Push/Pull Side Mounting |
| Range | 83 Series |
| Type | Closer - Overhead |
| Max Door Width (mm) | 1100mm |
| Delayed Action | Without Delayed Action |
| Power Size | EN 2-4 |
| UKCA Approved | Yes |
| Track Arm | No |
| Brand | Eclipse |
| Cover | With Cover |
| Guarantee | 10 Years |
