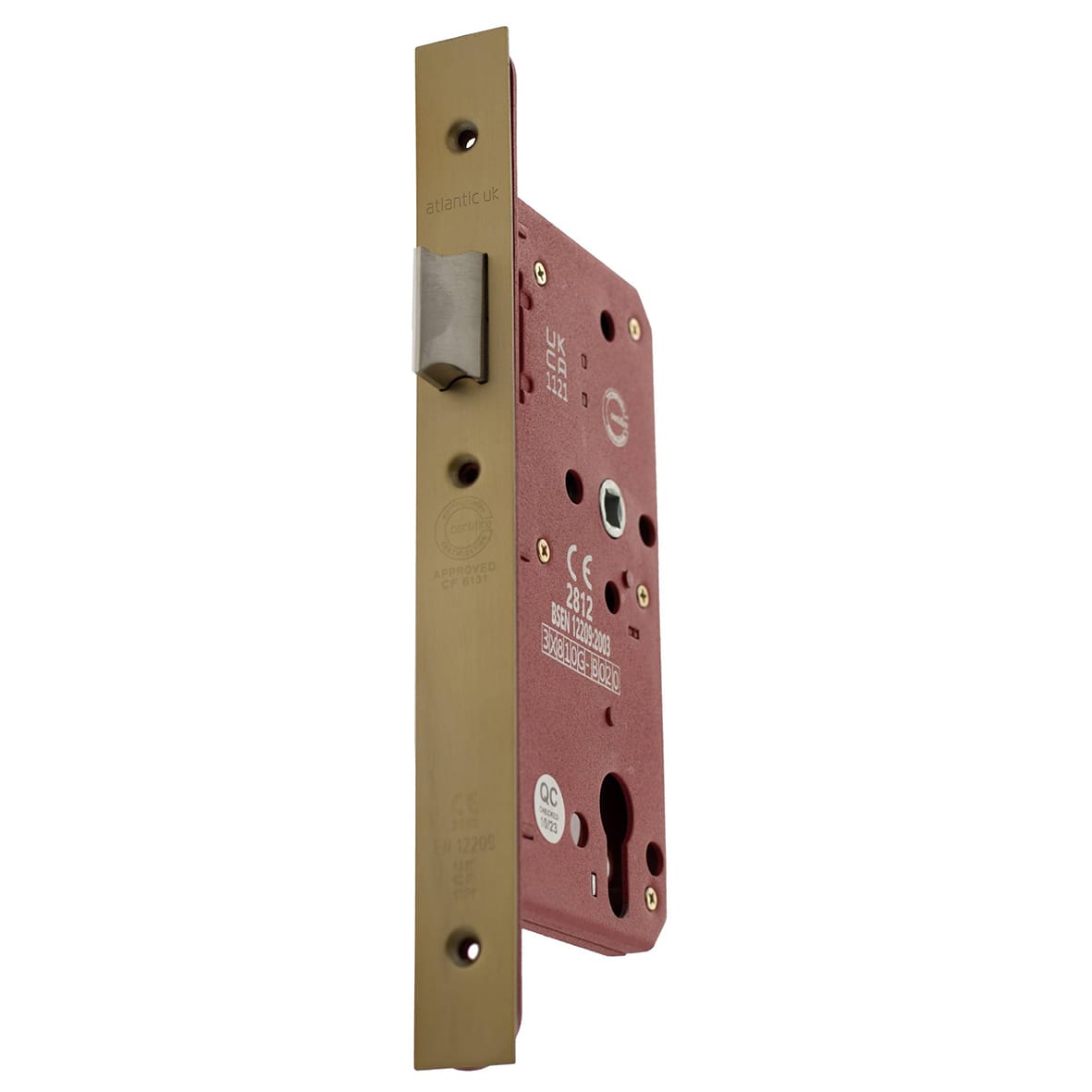

DIN Latch - 88mm Case - 60mm Backset - Square - Satin Brass - Mild Steel
Product Code: 589177P
DIN Latch - 88mm Case - 60mm Backset - Square - Satin Brass - Mild Steel
Product Code: 589177P
11 In stock
£21.14
Ex. VAT: £17.62
This product is part of a range with 8 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
DIN standard tubular latch with 60mm backset
Designed for use with DIN specification lever handles
Provides smooth and reliable latch action
Bolt through fixing
Suitable for internal doors in domestic and commercial settings
Ideal for use where DIN preparation is required
30, 60, 90 & 120 minute fire rating
NOTE: Intumescent should be used to ensure adherence to fire regulations
Designed for use with DIN specification lever handles
Provides smooth and reliable latch action
Bolt through fixing
Suitable for internal doors in domestic and commercial settings
Ideal for use where DIN preparation is required
30, 60, 90 & 120 minute fire rating
NOTE: Intumescent should be used to ensure adherence to fire regulations
Product Specifications
| Backset (mm) | 60mm |
| Bolt Through Fixing | Bolt Through Fixing |
| British Standard | Yes |
| Case Size (mm) | 88mm |
| CE Rated | CE Rated |
| Certifire | Yes |
| Equality Act Compliant | No |
| Finish | Satin Brass |
| Fire Rating | 30/60/90 & 120 |
| Material | Mild Steel |
| Pack Quantity | 1 |
| Size (mm) | 165 x 88mm |
| Suit Door Thickness (mm) | 35-55mm |
| Type | DIN Latch |
| Finish Group | Brass |
| Profile | Square |
| Keyed Alike | Not Keyed Alike |
| Standards | BSEN 1634 |
| Secured by Design | No |
| UKCA Approved | Yes |
| Brand | Atlantic |
| Guarantee | 10 Years |
