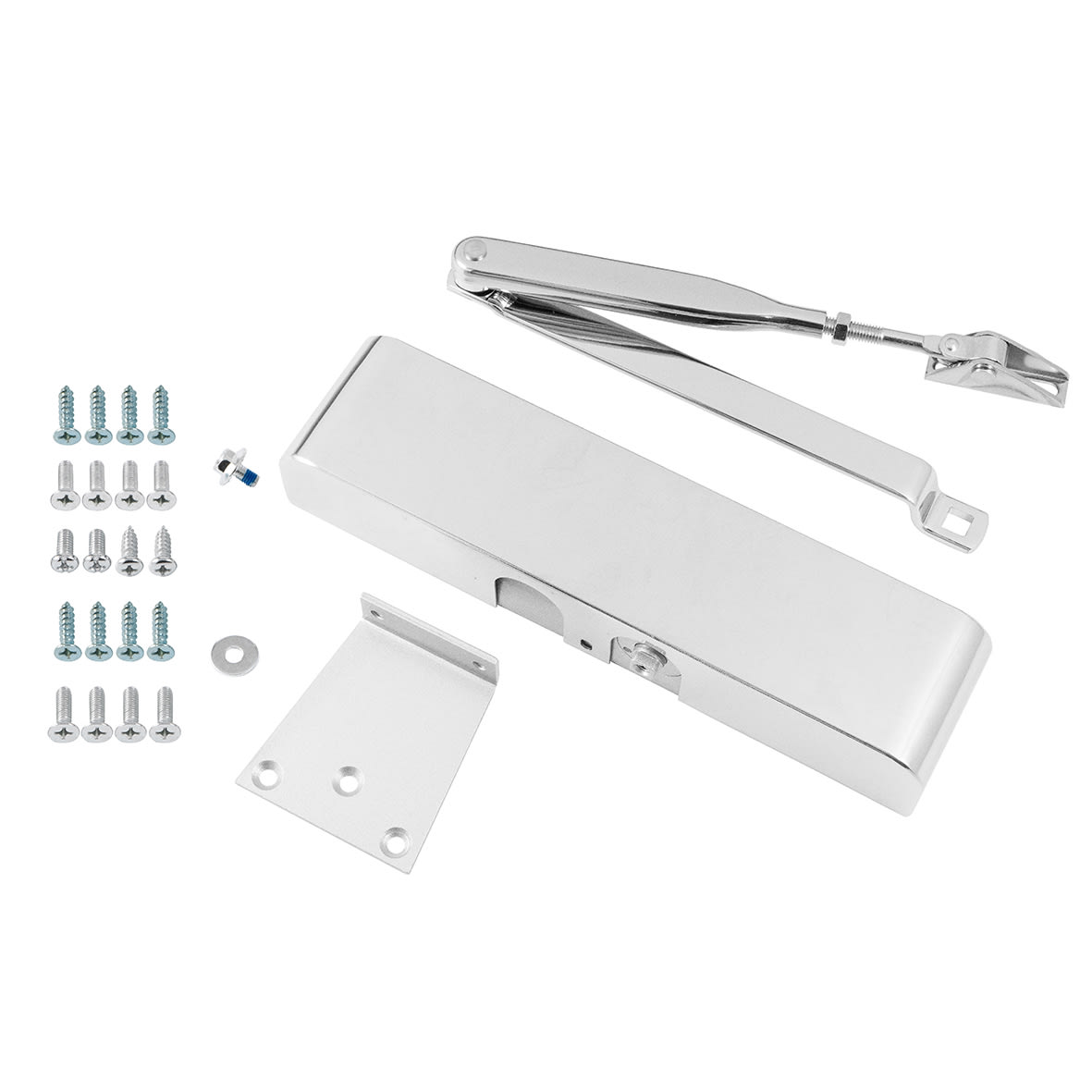

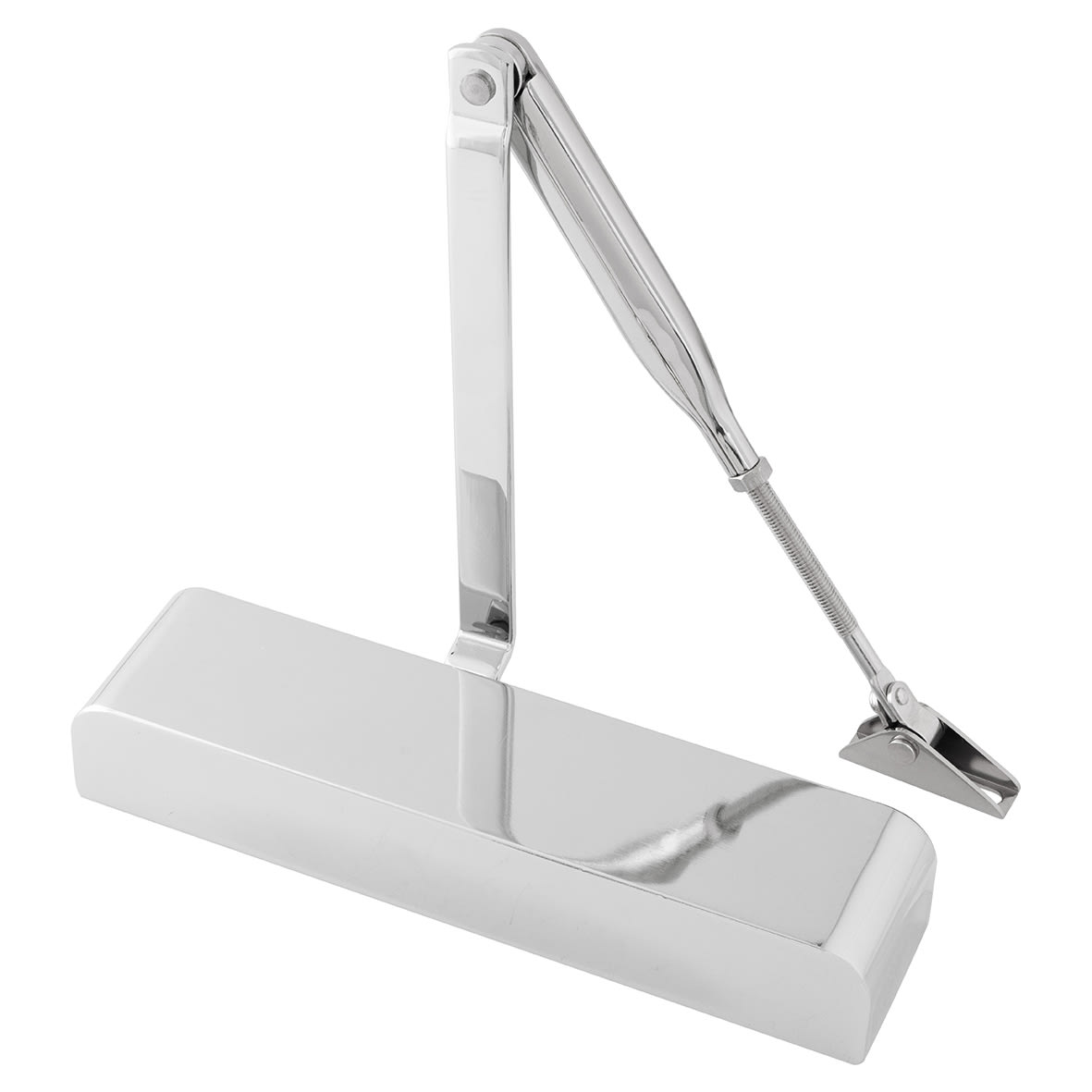

83 Series Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Polished Chrome - Aluminium

Product Code: 946058P

83 Series Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Polished Chrome - Aluminium

Product Code: 946058P
16 In stock
£43.14
Ex. VAT: £35.95
This product is part of a range with 9 options. Select an option to filter, then choose the matching variant.
Reliable, fire-tested door control with adjustable power for versatile installation across commercial and residential applications
Suitable for up to 180° figure 1 opening – ideal where maximum door opening is required
Adjustable power size EN 2–4 with template adjustment – allows accurate installation and easy on-site setting to suit a range of door widths and application requirements
Fully adjustable closing speed to provide smooth, controlled door operation
Supplied with a cover in a polished chrome finish for a bright, contemporary look
Suitable for doors up to 80kg maximum door weight
EN1154 performance tested and EN1634 fire tested – certified for reliable operation and approved for use on fire door installations
Fire rated for 30, 60, 90 and 120 minutes, offering flexibility across a range of fire door specifications

Product Specifications

Arm Finish Polished Chrome
Backcheck Without Backcheck
Cam Action No
CE Rated CE Rated
Certifire Yes
Duty Medium Duty
Finish Polished Chrome
Fire Rating 30/60/90 & 120
Material Aluminium
Max Door Weight (kg) 80kg
Option Fig 66 - Push/Pull Side Mounting
Range 83 Series
Type Closer - Overhead
Max Door Width (mm) 1100mm
Delayed Action Without Delayed Action
Power Size EN 2-4
UKCA Approved Yes
Track Arm No
Brand Eclipse
Cover With Cover
Guarantee 10 Years
