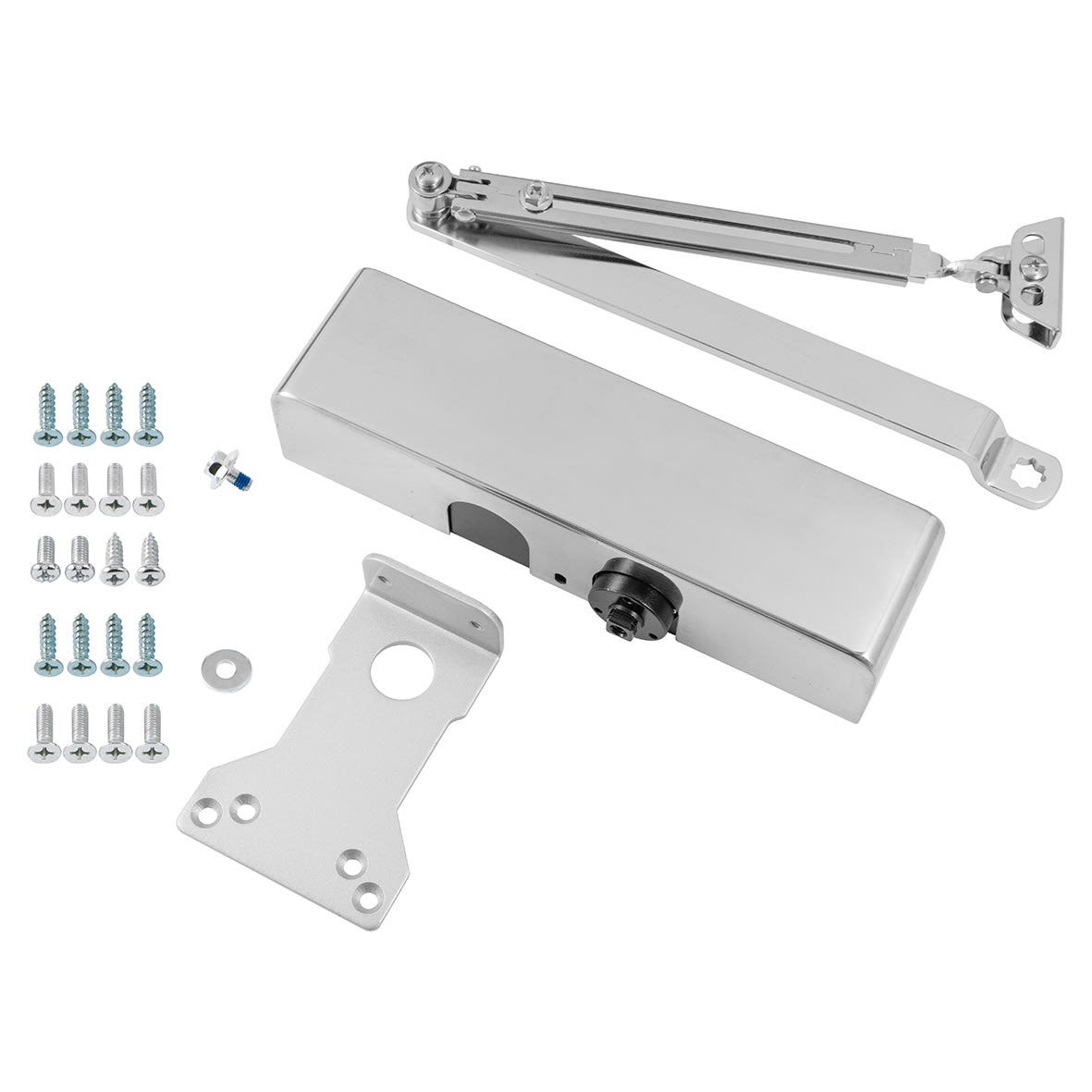

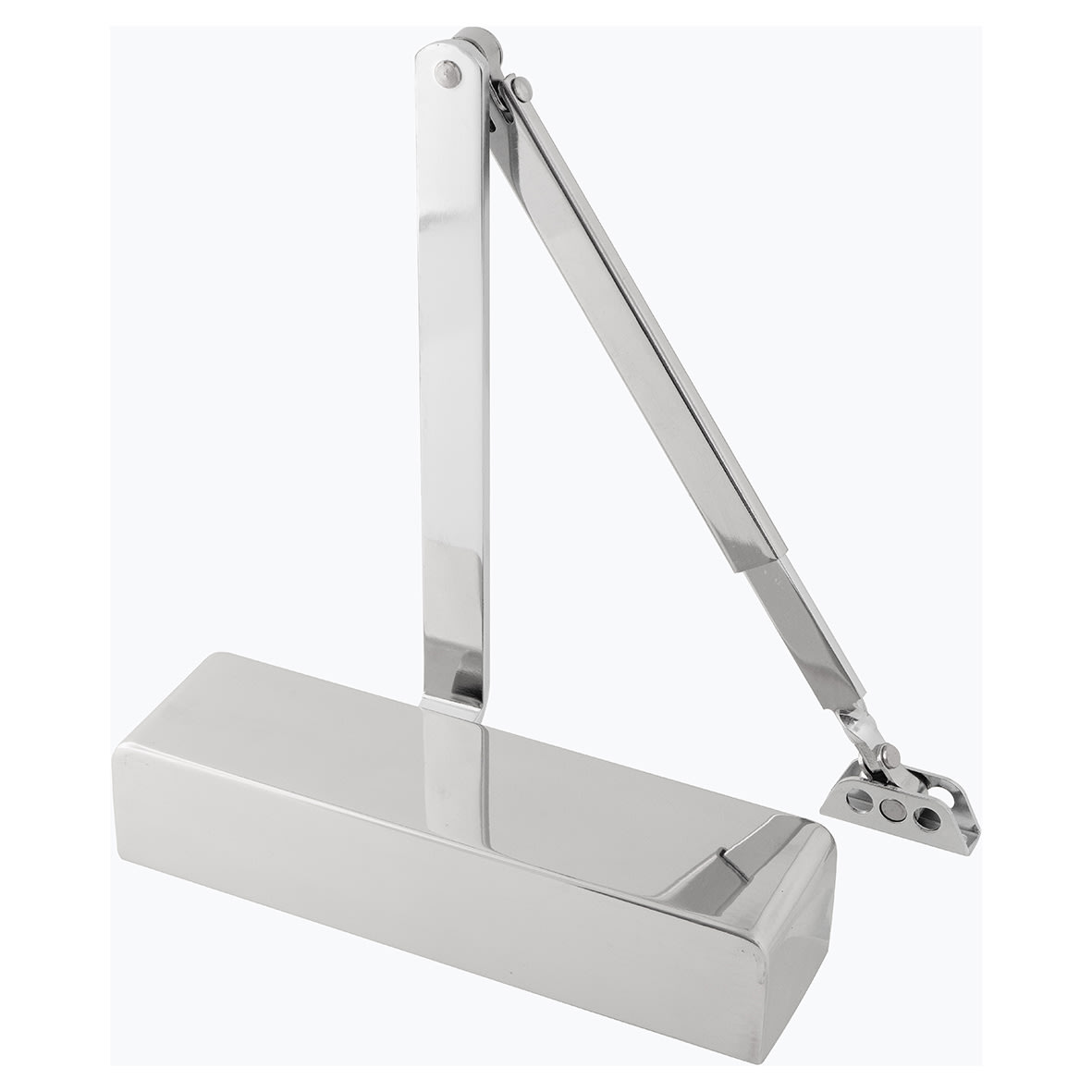

93 Series Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Polished Chrome - Aluminium
Product Code: 339719P
93 Series Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Polished Chrome - Aluminium
Product Code: 339719P
8 In stock
£51.77
Ex. VAT: £43.14
This product is part of a range with 8 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Versatile, fire-tested door control offering reliable and consistent closing performance for a wide range of commercial and residential applications
Suitable for up to 180° figure 1 opening – ideal where maximum door opening is required
Adjustable power size EN 2–4 with template adjustment – enables accurate installation and easy on-site
Adjustable backcheck to help protect doors and surrounding walls from damage caused by sudden opening
Fully adjustable closing speed to provide smooth, controlled door operation
Supplied with a cover in a polished chrome finish for a bright, contemporary look
Suitable for doors up to 80kg maximum door weight
EN1154 performance tested and EN1634 fire tested – certified for reliable operation and approved for use on fire door installations
Fire rated for 30, 60, 90 and 120 minutes, offering flexibility across a range of fire door specifications
Suitable for up to 180° figure 1 opening – ideal where maximum door opening is required
Adjustable power size EN 2–4 with template adjustment – enables accurate installation and easy on-site
Adjustable backcheck to help protect doors and surrounding walls from damage caused by sudden opening
Fully adjustable closing speed to provide smooth, controlled door operation
Supplied with a cover in a polished chrome finish for a bright, contemporary look
Suitable for doors up to 80kg maximum door weight
EN1154 performance tested and EN1634 fire tested – certified for reliable operation and approved for use on fire door installations
Fire rated for 30, 60, 90 and 120 minutes, offering flexibility across a range of fire door specifications
Product Specifications
| Arm Finish | Polished Chrome |
| Backcheck | With Backcheck |
| Cam Action | No |
| CE Rated | CE Rated |
| Certifire | Yes |
| Duty | Medium Duty |
| Finish | Polished Chrome |
| Fire Rating | 30/60/90 & 120 |
| Material | Aluminium |
| Max Door Weight (kg) | 80kg |
| Option | Fig 66 - Push/Pull Side Mounting |
| Range | 93 Series |
| Type | Closer - Overhead |
| Max Door Width (mm) | 1100mm |
| Delayed Action | Without Delayed Action |
| Power Size | EN 2-4 |
| UKCA Approved | Yes |
| Track Arm | No |
| Brand | Eclipse |
| Cover | With Cover |
| Guarantee | 10 Years |
