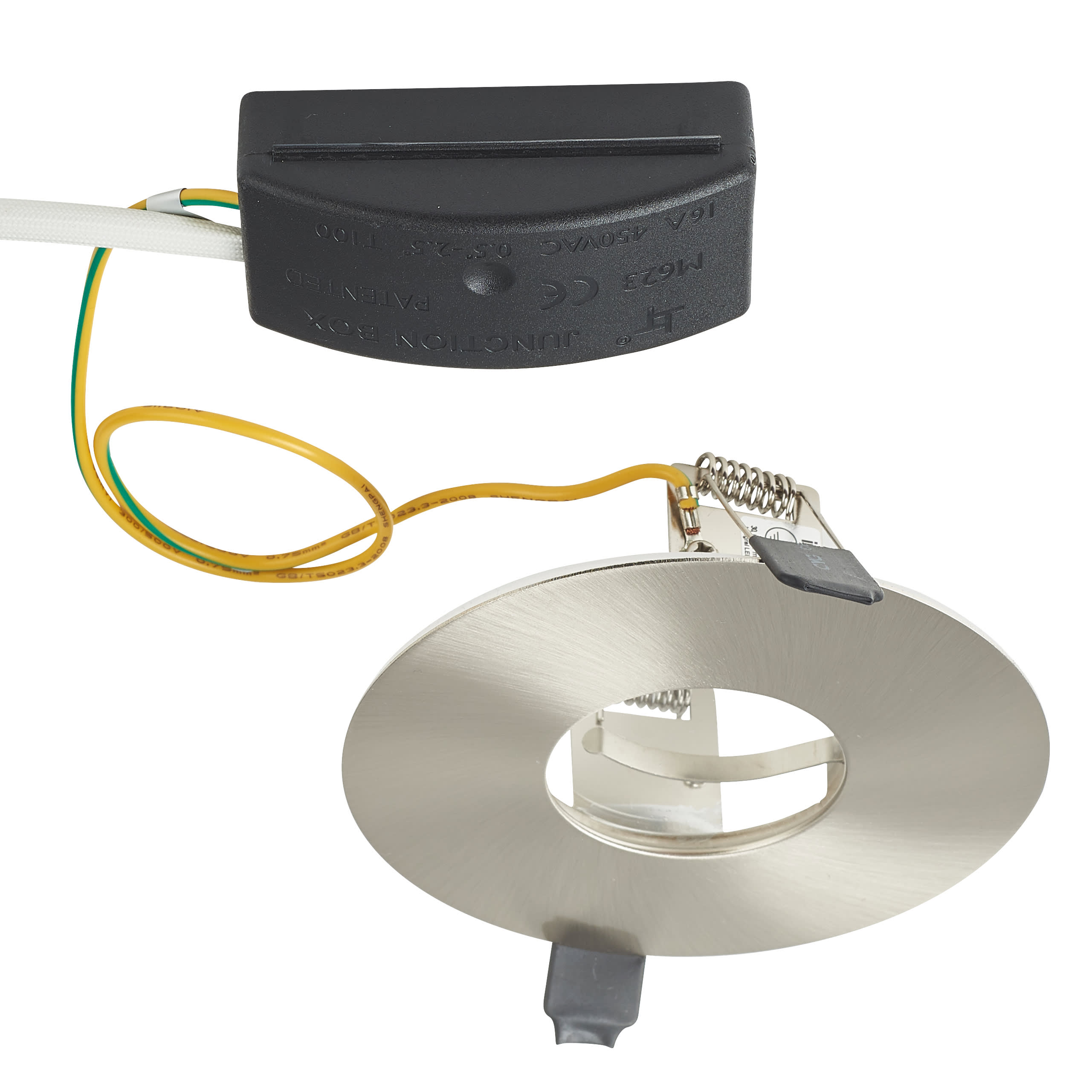

LED Evofire 50W Fire Rated LED Fixed Downlight - 70-100mm Cut-out - Satin Nickel
Product Code: 423432P
LED Evofire 50W Fire Rated LED Fixed Downlight - 70-100mm Cut-out - Satin Nickel
Product Code: 423432P
27 In stock
£7.92
Ex. VAT: £6.60
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
This Fire Rated Downlight is a safe and attractive fitting for a GU10 lamp
Unlike standard downlights, the fully open design of the Evofire does not conceal the lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance
Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of the lamps
Very tough due to steel construction, with fire-resistant glass front
Hole cut out size: 70 to 100mm
The 1mm blend-in bezel is up to 10 times thinner than typical IP65 rated downlights, has a high quality powder coating and fits almost flush with the ceiling, so the downlight looks discreet and pleasing in any setting
Fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details
IP (Ingress Protection) Rating: IP65 IP Rating (Back/Recessed side): IP20
Easy to install Loop-in/Loop-out piano-key style terminal block
Supplied with GU10 holder
Unlike standard downlights, the fully open design of the Evofire does not conceal the lamp in a large metal canister, which can trap some of the heat it generates, lowering lamp lifetime and performance
Lamps installed in an Evofire run at up to 10 degrees C cooler than a typical can-style fire rated downlight from leading LED brands - this can extend the lifetime of the lamps
Very tough due to steel construction, with fire-resistant glass front
Hole cut out size: 70 to 100mm
The 1mm blend-in bezel is up to 10 times thinner than typical IP65 rated downlights, has a high quality powder coating and fits almost flush with the ceiling, so the downlight looks discreet and pleasing in any setting
Fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details
IP (Ingress Protection) Rating: IP65 IP Rating (Back/Recessed side): IP20
Easy to install Loop-in/Loop-out piano-key style terminal block
Supplied with GU10 holder
Product Specifications
| Cap Type | GU10 |
| Depth (mm) | 38mm |
| Diameter (mm) | 110mm |
| Fire Rating | Yes |
| Fitting | Fixed |
| IP Rating | IP65 |
| Pack Quantity | 1 |
| Range | Evofire |
| Ref | ILDLFR70D016 |
| Size (mm) | 38.00 x 110mm |
| Type | Downlight |
| Bezel Colour | Satin Nickel |
| Bezel Included | Bezel Included |
| Dimmable | Not Dimmable |
| Hole Size (mm) | 70-100mm |
| Lamps Included | Lamps Not Included |
| Technology | LED |
| Driver Included | Driver Included |
| Max Wattage | 50W |
| Brand | Integral |
