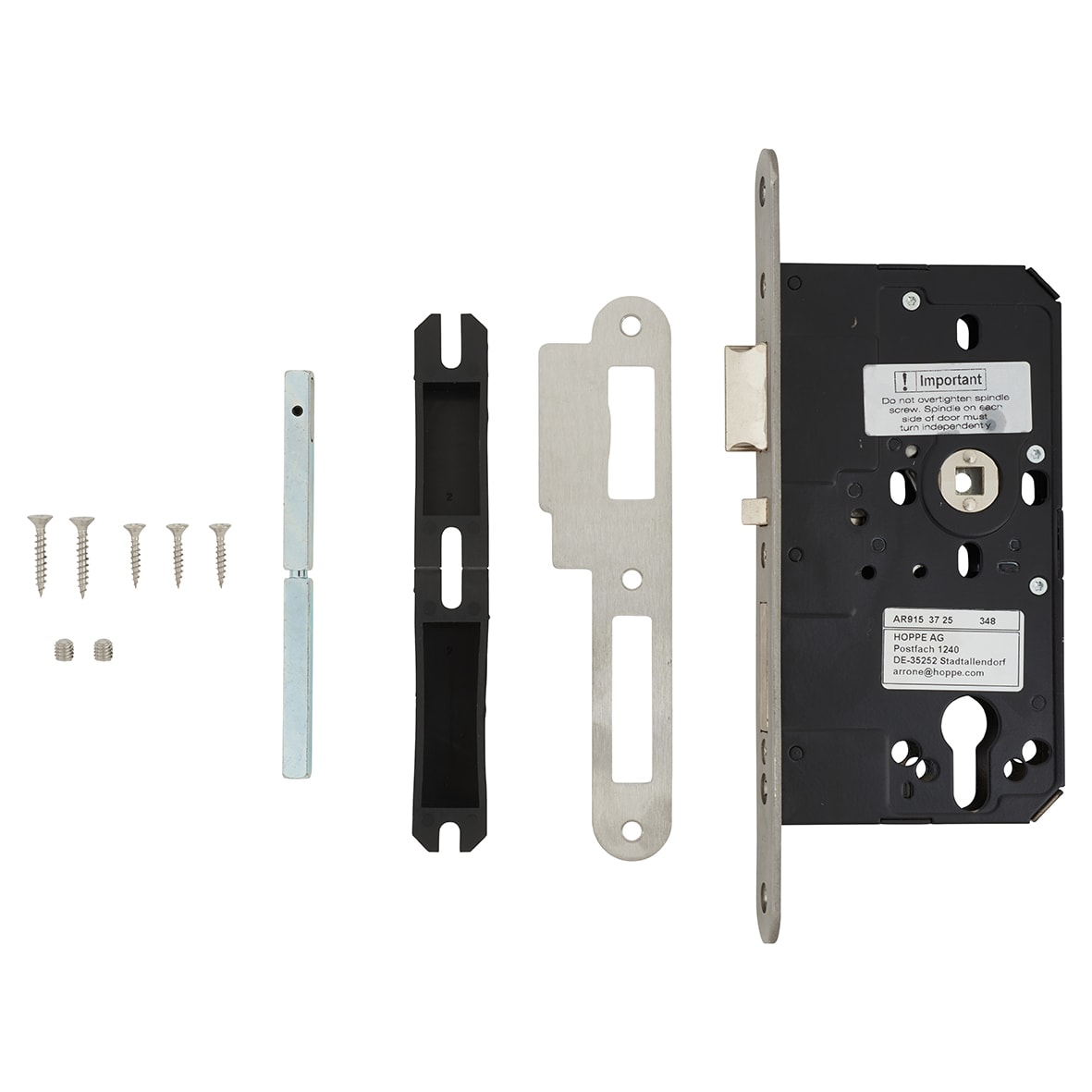

DIN Escape Sashlock - 88mm Case - 60mm Backset - Radius - Satin Stainless Steel - Mild Steel
Product Code: 641832P
DIN Escape Sashlock - 88mm Case - 60mm Backset - Radius - Satin Stainless Steel - Mild Steel
Product Code: 641832P
Out of Stock
Back in stock: 03 Sep 2026
£44.93
Ex. VAT: £37.44
This product is part of a range with 3 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Arrone AR915 DIN escape sashlock designed for commercial and public buildings; durability and fire safety
Radius profile DIN escape sashlock suitable for metal doors
8mm split follower for escape function; latch and deadbolt withdrawn by internal or deadbolt by outside key
60mm backset
78mm centres
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Reversible latch with anti thrust operation
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors

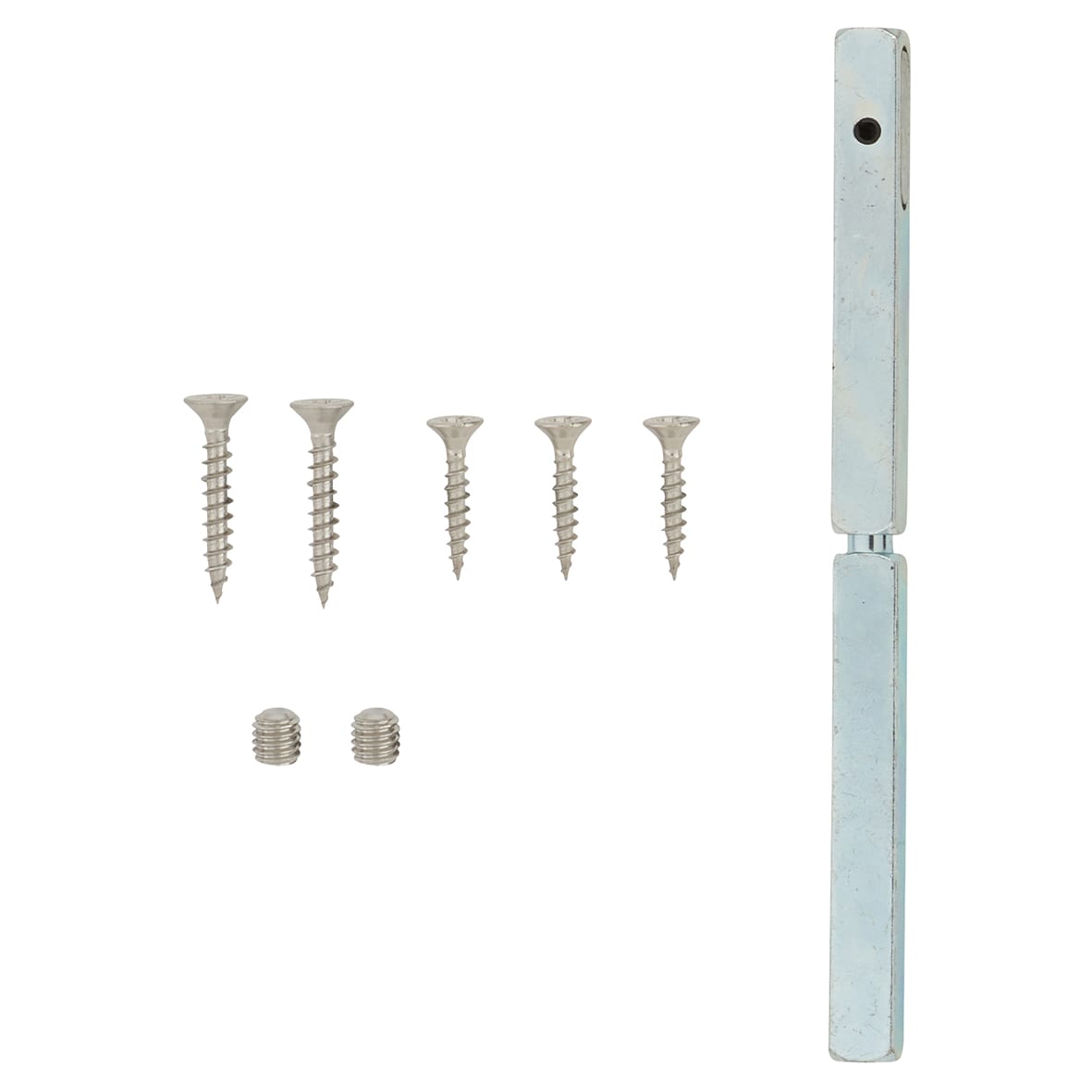

Note this lock is not supplied with the cylinder fixing screw pozidrive countersunk M5 x 90mm
Square version available
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Radius profile DIN escape sashlock suitable for metal doors
8mm split follower for escape function; latch and deadbolt withdrawn by internal or deadbolt by outside key
60mm backset
78mm centres
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Reversible latch with anti thrust operation
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors
Note this lock is not supplied with the cylinder fixing screw pozidrive countersunk M5 x 90mm
Square version available
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
Product Specifications
| Backset (mm) | 60mm |
| Bolt Through Fixing | Bolt Through Fixing |
| British Standard | Yes |
| Case Size (mm) | 88mm |
| CE Rated | CE Rated |
| Centres (mm) | 72mm |
| Certifire | Yes |
| Depth (mm) | 88mm |
| Equality Act Compliant | Equality Act Compliant |
| Finish | Satin Stainless Steel |
| Fire Rating | 30/60/90/120 & 240 |
| Height (mm) | 165mm |
| Length (mm) | 235mm |
| Material | Mild Steel |
| Option | Euro |
| Pack Quantity | 1 |
| Suit Door Thickness (mm) | 44mm |
| Type | DIN Euro Sashlock |
| Finish Group | Stainless Steel |
| Profile | Radius |
| Thickness (mm) | 16mm |
| Keyed Alike | Not Keyed Alike |
| Standards | BS EN 12209, BS EN 1634-1, BS 8300 |
| Secured by Design | No |
| UKCA Approved | Yes |
| Brand | Arrone |
| Guarantee | 10 Years |
