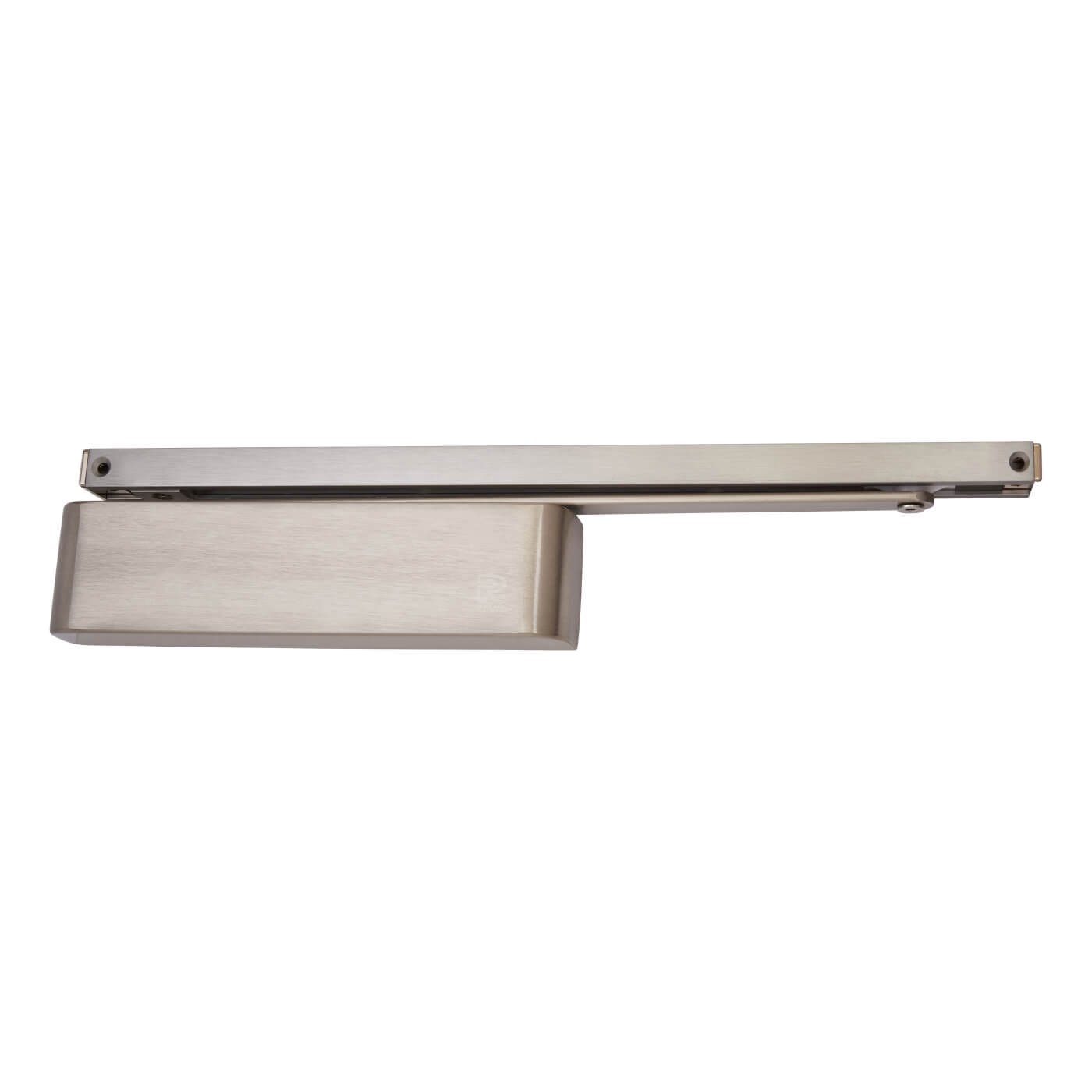

TS.11204 Cam Action Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Satin Nickel - Aluminium
Product Code: 334182P
TS.11204 Cam Action Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Satin Nickel - Aluminium
Product Code: 334182P
158 In stock
£152.64
Ex. VAT: £127.20
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £152.64 | — |
| 5+ | £148.18 | Save 3% |
- Products Description
- Technical Specifications
An adjustable power size 2-4 heavy duty cam action track arm fire door closer suitable for use in public buildings including schools, department stores and hospitals
Suitable for interior doors up to 1100mm wide or 80kg max weight
Cam action closers require a lower force to open the door, making them an ideal choice for where the Equality Act 2010 has to be considered
Track arm door closers are ideal for areas where there is little incentive of care and possible misuse because there is no protruding arm when the door is closed
The rapid decrease in opening force from the cam action meets the requirements of the Equality Act 2010 (BS8300)

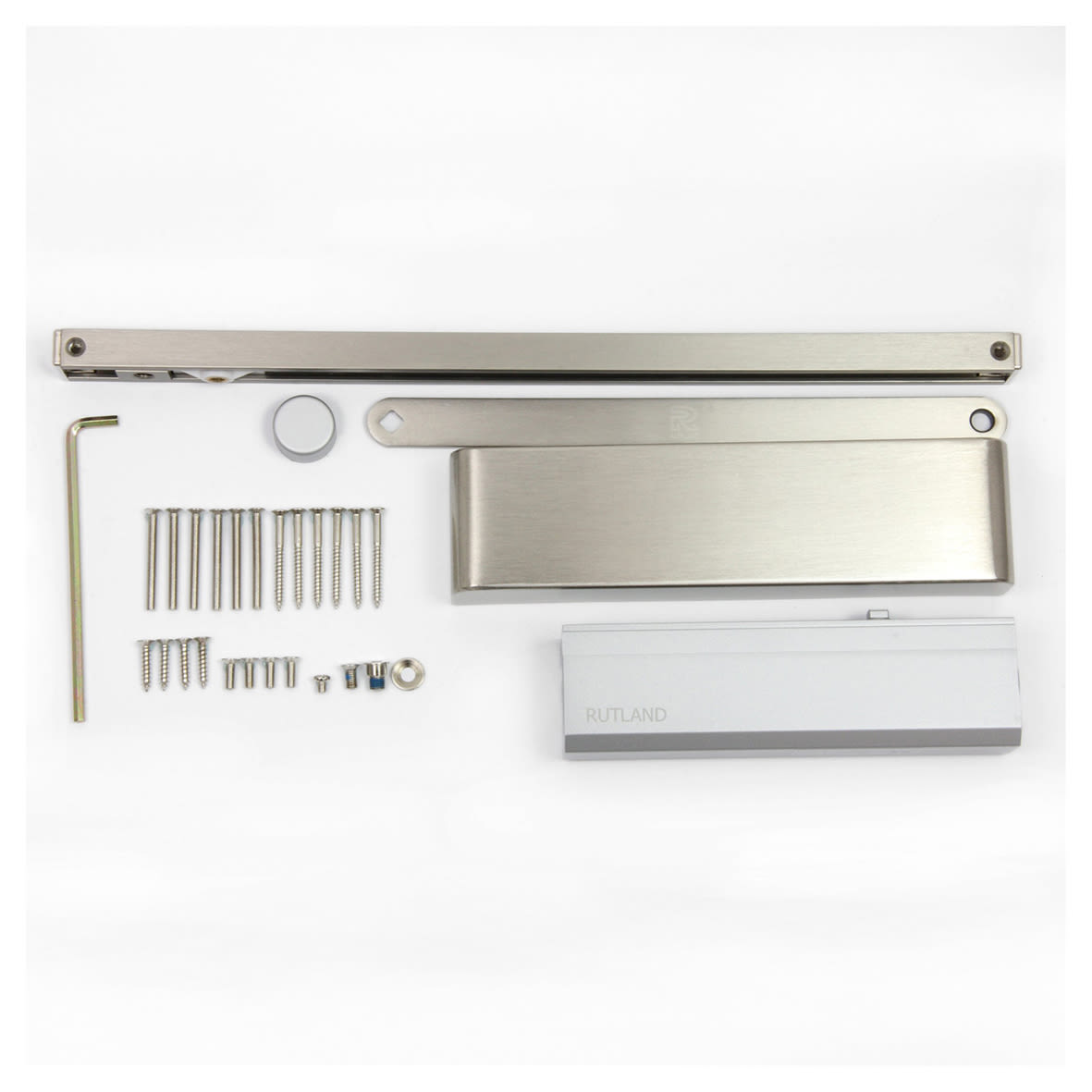

Dual handed and includes a universal fixing pack for push or pull side mounting
Closing and latch speed adjustments for a perfect closing action
Can be used on timber doorsets with a fire rating up to 120 minutes
Fire tested to EN1634-1
Certifire approved CF6006
10 year guarantee
Suitable for interior doors up to 1100mm wide or 80kg max weight
Cam action closers require a lower force to open the door, making them an ideal choice for where the Equality Act 2010 has to be considered
Track arm door closers are ideal for areas where there is little incentive of care and possible misuse because there is no protruding arm when the door is closed
The rapid decrease in opening force from the cam action meets the requirements of the Equality Act 2010 (BS8300)
Dual handed and includes a universal fixing pack for push or pull side mounting
Closing and latch speed adjustments for a perfect closing action
Can be used on timber doorsets with a fire rating up to 120 minutes
Fire tested to EN1634-1
Certifire approved CF6006
10 year guarantee
Product Specifications
| Arm Finish | Satin Nickel |
| Backcheck | Without Backcheck |
| Cam Action | Yes |
| CE Rated | CE Rated |
| Duty | Medium Duty |
| Equality Act Compliant | Equality Act Compliant |
| Finish | Satin Nickel |
| Fire Rating | 30/60 & 120 |
| Material | Aluminium |
| Max Door Weight (kg) | 80kg |
| Option | Fig 66 - Push/Pull Side Mounting |
| Pack Quantity | 1 |
| Range | TS11204 / ITS11204 / TS11205 |
| Type | Closer - Overhead |
| Hold Open Function | Without Hold Open Function |
| Max Door Width (mm) | 1100mm |
| Delayed Action | Without Delayed Action |
| Power Size | EN 2-4 |
| Secured by Design | Secured by Design |
| Track Arm | Yes |
| Brand | Rutland |
| Cover | With Cover |
| Guarantee | 10 Years |
