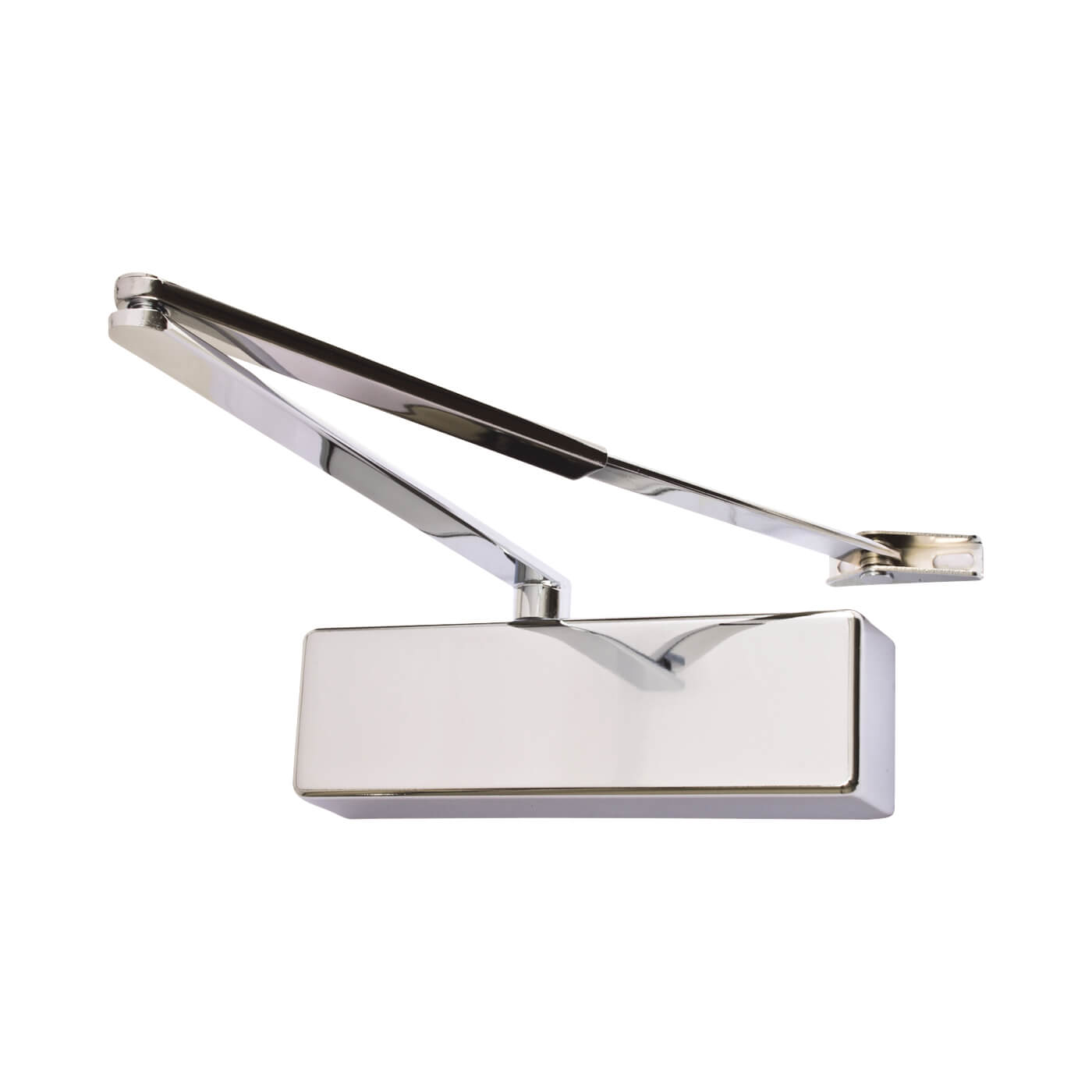

TS.3204 Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - Polished Nickel - Aluminium
Product Code: 667903P
TS.3204 Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - Polished Nickel - Aluminium
Product Code: 667903P
12 In stock
£51.84
Ex. VAT: £43.20
This product is part of a range with 5 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
A power size 3 medium duty fire door closer suitable for use in living accommodation and office corridors
Suitable for interior doors up to 1100mm wide or 80kg max weight
Dual handed and includes a universal fixing pack for push or pull side mounting
Not fire tested in push side application Fig.61
Architectural flat bar arm set
Closing and latch speed adjustments for a perfect closing action
Fire tested to EN1634 Fire Tests and UL
Can be used on timber doorsets with a fire rating up to 120 minutes
Certifire approved CF6018
10 year guarantee
Suitable for interior doors up to 1100mm wide or 80kg max weight
Dual handed and includes a universal fixing pack for push or pull side mounting
Not fire tested in push side application Fig.61
Architectural flat bar arm set
Closing and latch speed adjustments for a perfect closing action
Fire tested to EN1634 Fire Tests and UL
Can be used on timber doorsets with a fire rating up to 120 minutes
Certifire approved CF6018
10 year guarantee
Product Specifications
| Arm Finish | Polished Nickel |
| Backcheck | Without Backcheck |
| Cam Action | No |
| CE Rated | CE Rated |
| Duty | Medium Duty |
| Finish | Polished Nickel |
| Fire Rating | 30/60 & 120 |
| Material | Aluminium |
| Max Door Weight (kg) | 80kg |
| Option | Fig 66 - Push/Pull Side Mounting |
| Pack Quantity | 1 |
| Range | TS5204 / TS3204 |
| Type | Closer - Overhead |
| Hold Open Function | Without Hold Open Function |
| Max Door Width (mm) | 1100mm |
| Delayed Action | Without Delayed Action |
| Power Size | EN 3 |
| Secured by Design | Secured by Design |
| Track Arm | No |
| Brand | Rutland |
| Cover | With Cover |
| Guarantee | 10 Years |
