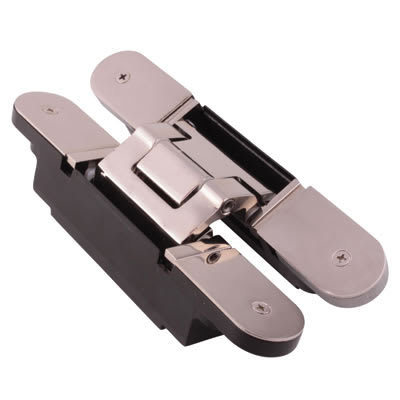

Tectus 3D Concealed Door Hinge - 155 x 21mm - Polished Nickel - Pair - Mild Steel
Product Code: 789843P
Tectus 3D Concealed Door Hinge - 155 x 21mm - Polished Nickel - Pair - Mild Steel
Product Code: 789843P
Out of Stock
£208.08
Ex. VAT: £173.40
This product is part of a range with 11 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
Completely concealed for unrebated and rebated flush doors with timber, steel and aluminium frames
Opening angle up to 180 degree and contains maintenance free bearings
Max door weight 60kg
3D Adjustable: +/- 3mm Side +/- 3mm Height +/- 1.5mm Compression
NOTE: Cannot be used with perko concealed closers
10 year guarantee
Opening angle up to 180 degree and contains maintenance free bearings
Max door weight 60kg
3D Adjustable: +/- 3mm Side +/- 3mm Height +/- 1.5mm Compression
NOTE: Cannot be used with perko concealed closers
10 year guarantee
Product Specifications
| CE Rated | CE Rated |
| Duty | Heavy Duty |
| Finish | Polished Nickel |
| Length (mm) | 155mm |
| Material | Mild Steel |
| Max Weight (kg) | 60kg |
| Pack Quantity | 2 |
| Size (mm) | 155 x 21mm |
| Type | Concealed Hinge |
| Width (mm) | 21mm |
| Finish Group | Nickel |
| Use | Interior & Exterior |
| Size Range (mm) | 6 Inch/150mm |
| Brand | Simonswerk |
| Guarantee | 10 Years |
| Video ID | 1323995 |
