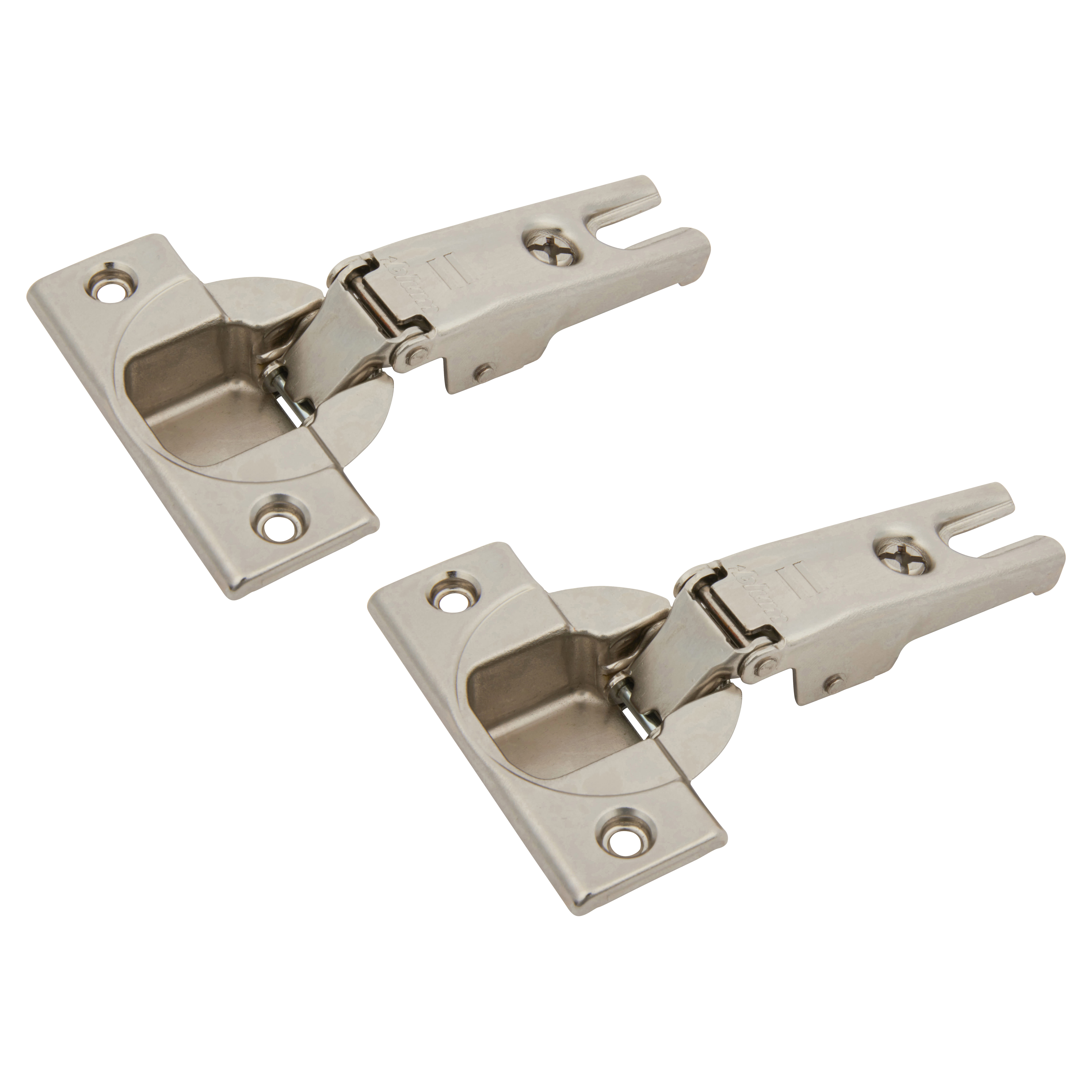

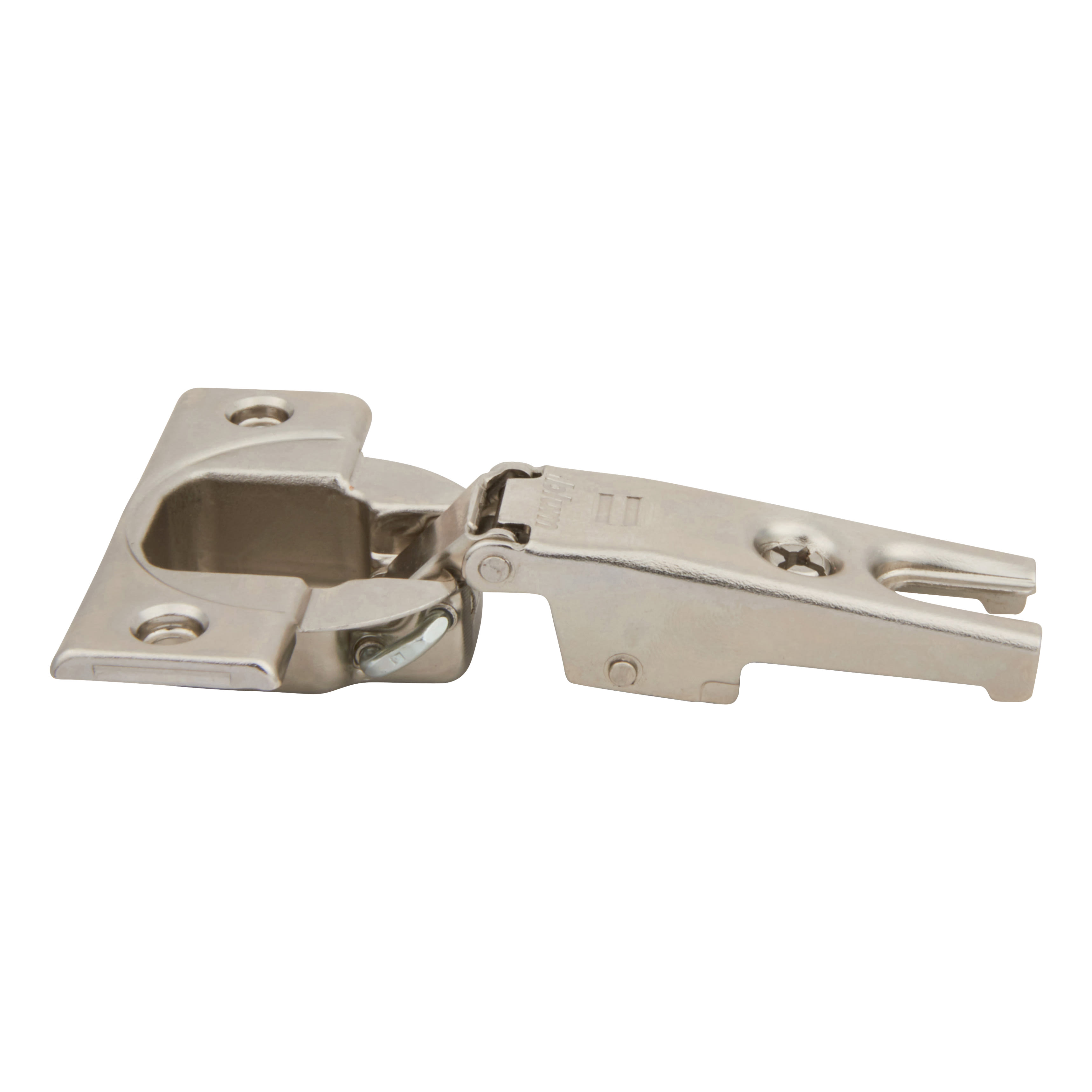

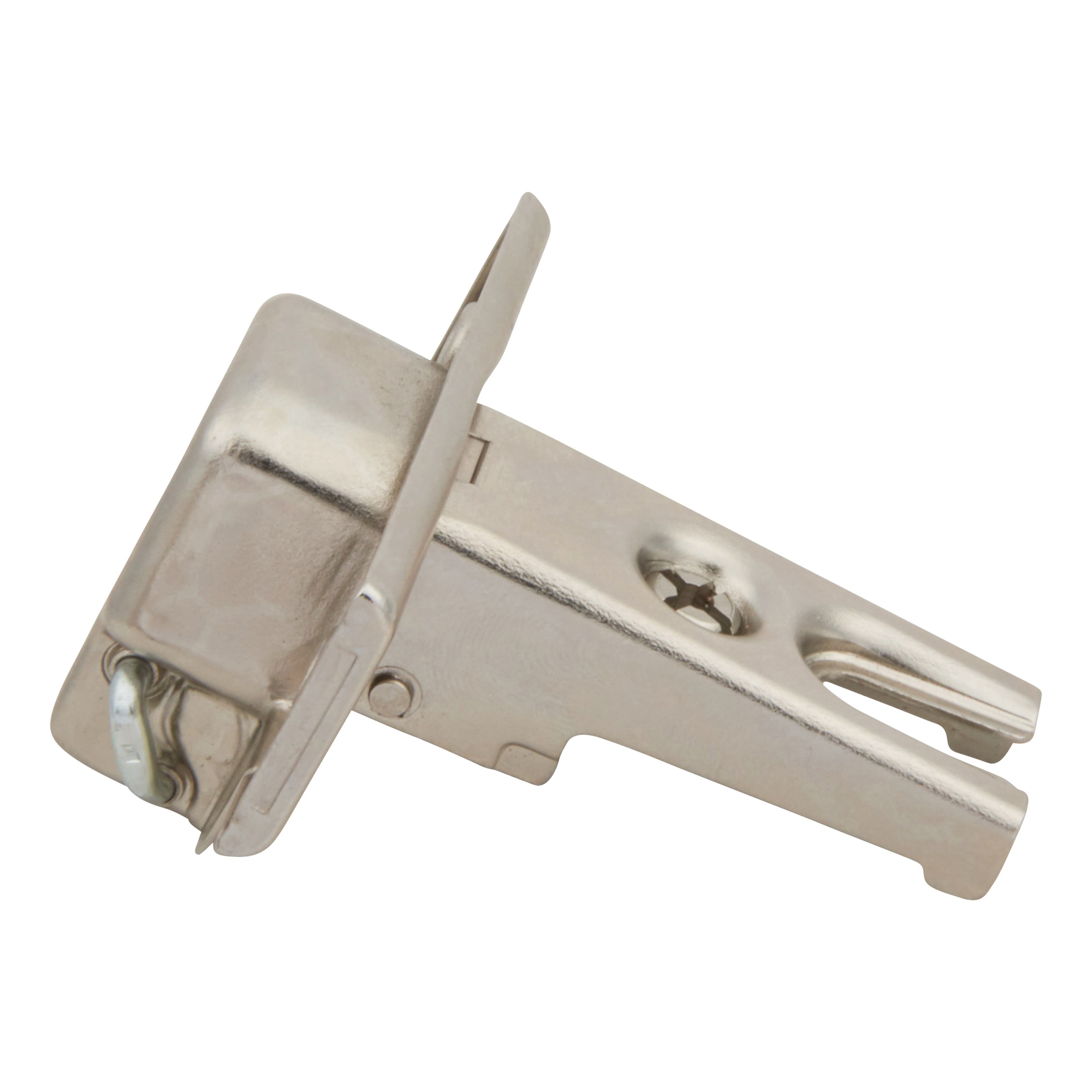

MODUL Refrigerator Facade Cabinet Hinge - 95° - Sprung - Overlay - Zinc Plated - Pair - Mild Steel
Product Code: 444631P
MODUL Refrigerator Facade Cabinet Hinge - 95° - Sprung - Overlay - Zinc Plated - Pair - Mild Steel
Product Code: 444631P
14 In stock
£10.01
Ex. VAT: £8.34
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £10.01 | — |
| 10 – 19 | £10.30 | — |
| 20+ | £9.75 | Save 3% |
- Products Description
- Technical Specifications
Blum Part Code: 91K9550
Commonly used for integrated refrigerator doors but can also be used on kitchen, bathroom, & household cabinets
Overlay - Where the cabinet door fully overlays the carcass
Sprung - pulls the door fully closed without the need for a catch
MODUL - combined slide-on and screw-fix
Diameter: 35mm
Arm cover plates & soft close mechanism to be ordered separately
Can only be combined with Blum MODUL mounting plate - code 261399P
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Commonly used for integrated refrigerator doors but can also be used on kitchen, bathroom, & household cabinets
Overlay - Where the cabinet door fully overlays the carcass
Sprung - pulls the door fully closed without the need for a catch
MODUL - combined slide-on and screw-fix
Diameter: 35mm
Arm cover plates & soft close mechanism to be ordered separately
Can only be combined with Blum MODUL mounting plate - code 261399P
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Product Specifications
| Application | Overlay |
| Depth Adjustment (mm) | -1.5mm |
| Finish | Zinc Plated |
| Fixing Method | Slide On |
| Material | Mild Steel |
| Option | Hinges Only |
| Pack Quantity | 2 |
| Range | MODUL |
| Suit Door Thickness (mm) | 16-32mm |
| Type | Concealed Kitchen Cabinet Hinge |
| Sprung | Sprung |
| Opening Angle | 95° |
| Brand | Blum |
| Guarantee | Lifetime Years |
