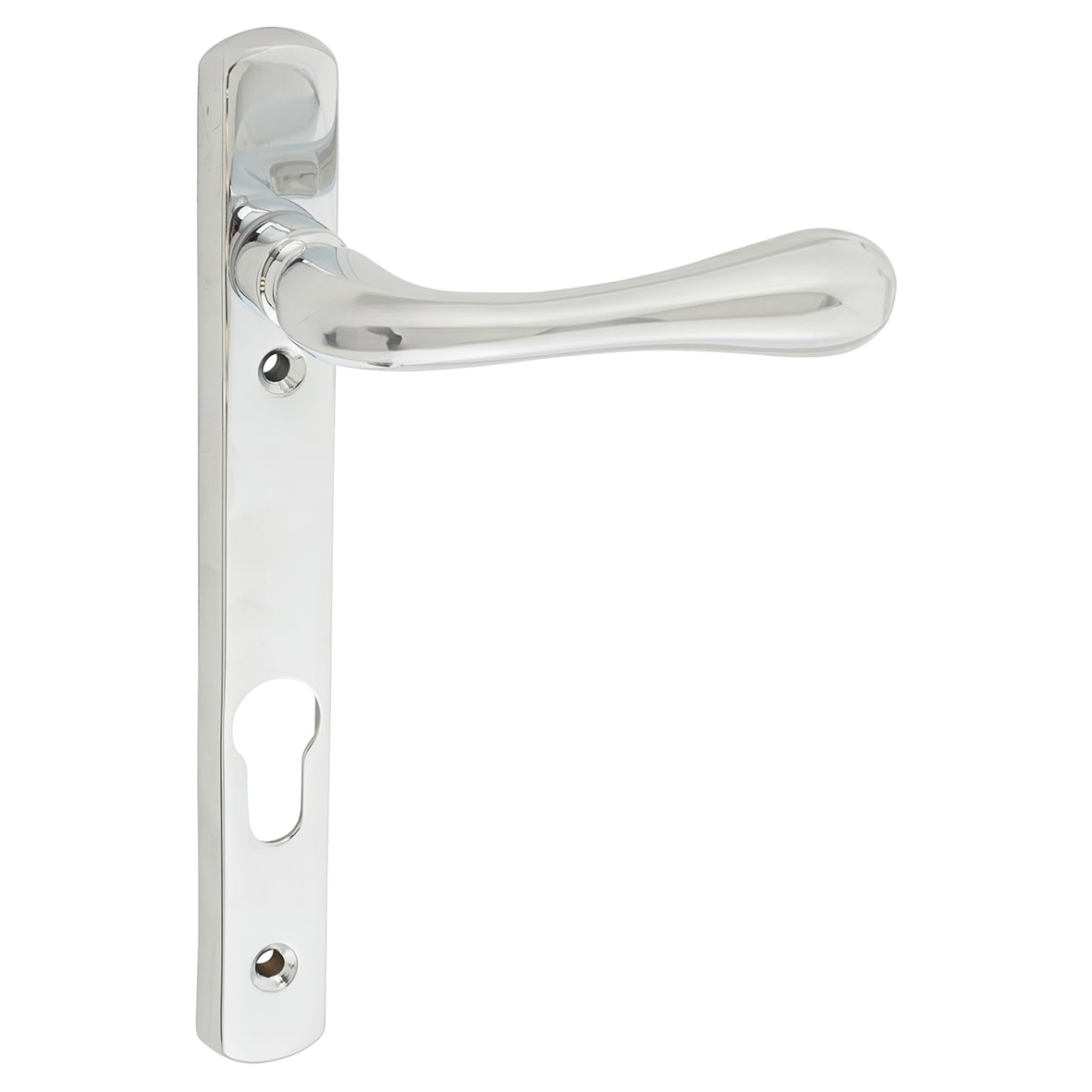

Polished Chrome uPVC Narrow Multipoint Door Handles - 92mm c/c - Astro Range - Solid Brass
Product Code: 993453P
Polished Chrome uPVC Narrow Multipoint Door Handles - 92mm c/c - Astro Range - Solid Brass
Product Code: 993453P
4 In stock
£81.36
Ex. VAT: £67.80
This product is part of a range with 2 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
A narrow plate euro profile handle designed for use with multipoint locks
Features a smooth round bar lever which expands to a rotund end making this handle very easy to grasp
Handle is unsprung - allows you to lift up to engage the locking bolts
Levers are fixed to the backplates and are fully reversible for left or right handing
Suitable for doors 35-50mm thick
Backplate size: 208 x 26 x 10mm
Centres: 92mm
Bolt centres: 124mm
Handle length: 105mm
Manufactured from solid brass for strength and durability
Features a smooth round bar lever which expands to a rotund end making this handle very easy to grasp
Handle is unsprung - allows you to lift up to engage the locking bolts
Levers are fixed to the backplates and are fully reversible for left or right handing
Suitable for doors 35-50mm thick
Backplate size: 208 x 26 x 10mm
Centres: 92mm
Bolt centres: 124mm
Handle length: 105mm
Manufactured from solid brass for strength and durability
Product Specifications
| Application | uPVC & Timber |
| Bolt Centres (mm) | 124mm |
| Bolt Through Fixing | With Bolt Through Fixing |
| British Standard | No |
| Centres (mm) | 92mm |
| Equality Act Compliant | No |
| Finish | Polished Chrome |
| Handle Type | Straight |
| Length (mm) | 208mm |
| Material | Solid Brass |
| Pack Quantity | 2 |
| Projection (mm) | 74mm |
| Range | Astro |
| Suit Door Thickness (mm) | 35-50mm |
| Type | Lever/Lever on Backplate |
| Width (mm) | 26mm |
| Finish Group | Chrome |
| Hand | Reversible |
| Use | Interior & Exterior |
| Sprung | Unsprung |
| PAS 24 | Not PAS 24 Compliant |
| Brand | Carlisle Brass |
| Guarantee | 10 Years |
