Heavy Duty Face Fixed U Joist Hanger - 75mm Width - 212.5mm Height - Mild Steel
Product Code: 778401P
Heavy Duty Face Fixed U Joist Hanger - 75mm Width - 212.5mm Height - Mild Steel
Product Code: 778401P
301 In stock
£4.46
Ex. VAT: £3.72
This product is part of a range with 12 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £4.46 | — |
| 10 – 49 | £4.60 | — |
| 50+ | £4.35 | Save 3% |
- Products Description
- Technical Specifications

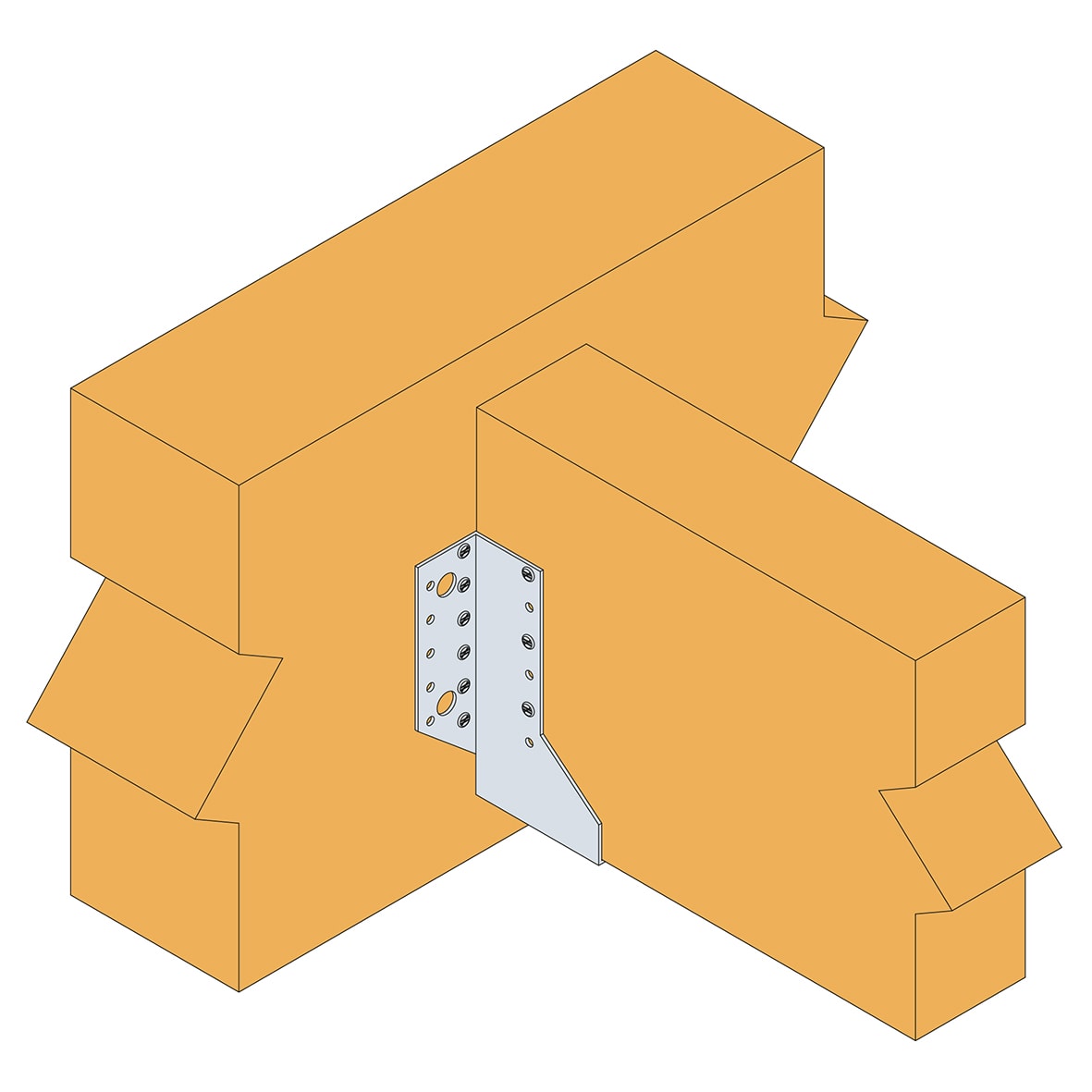

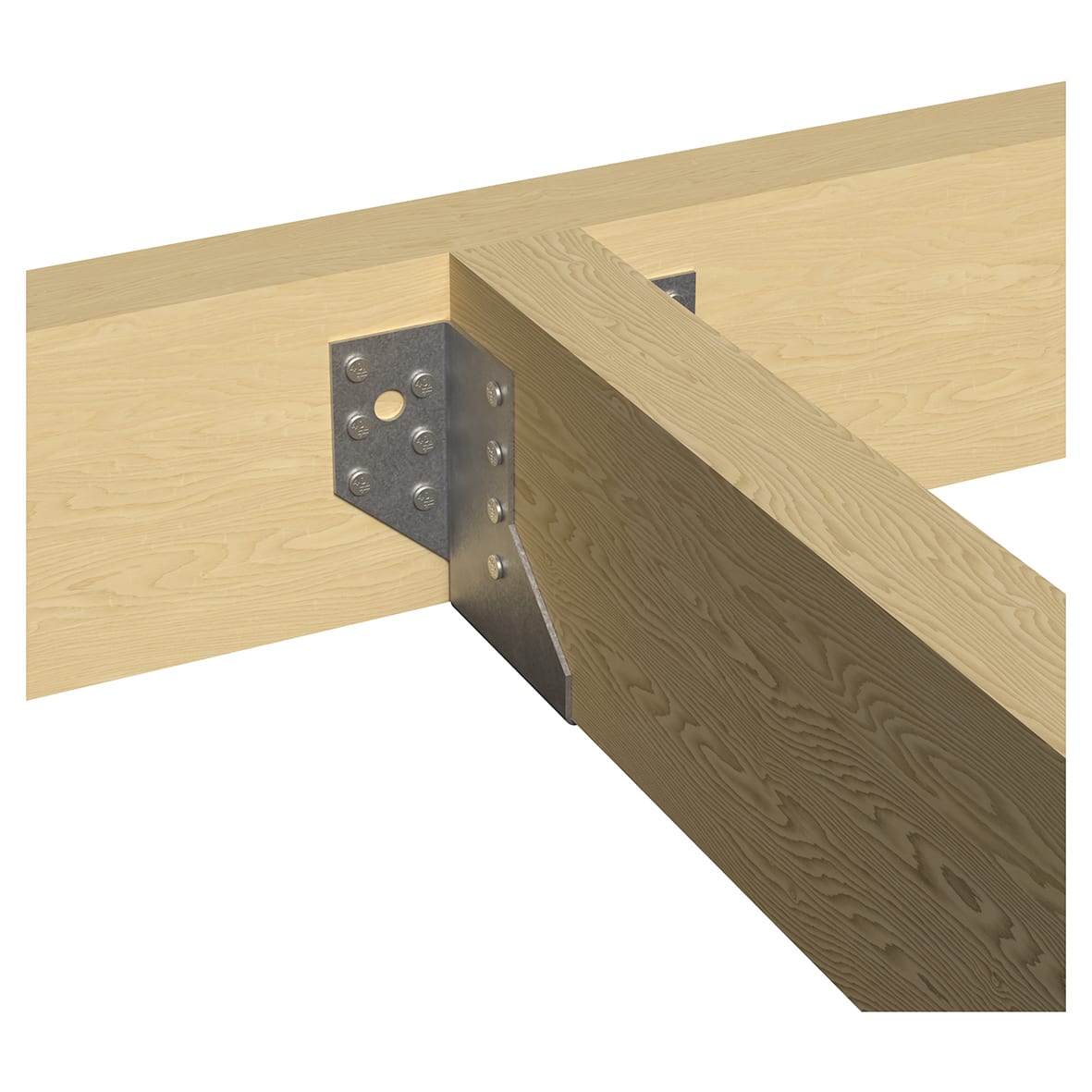

Heavy-duty face fixed 'U' joist hangers (part code SAE500/75/2) designed for applications requiring additional strength
Quick and simple installation - hangers are nailed using square twist nails but have bolt holes for 12mm fasteners into the face

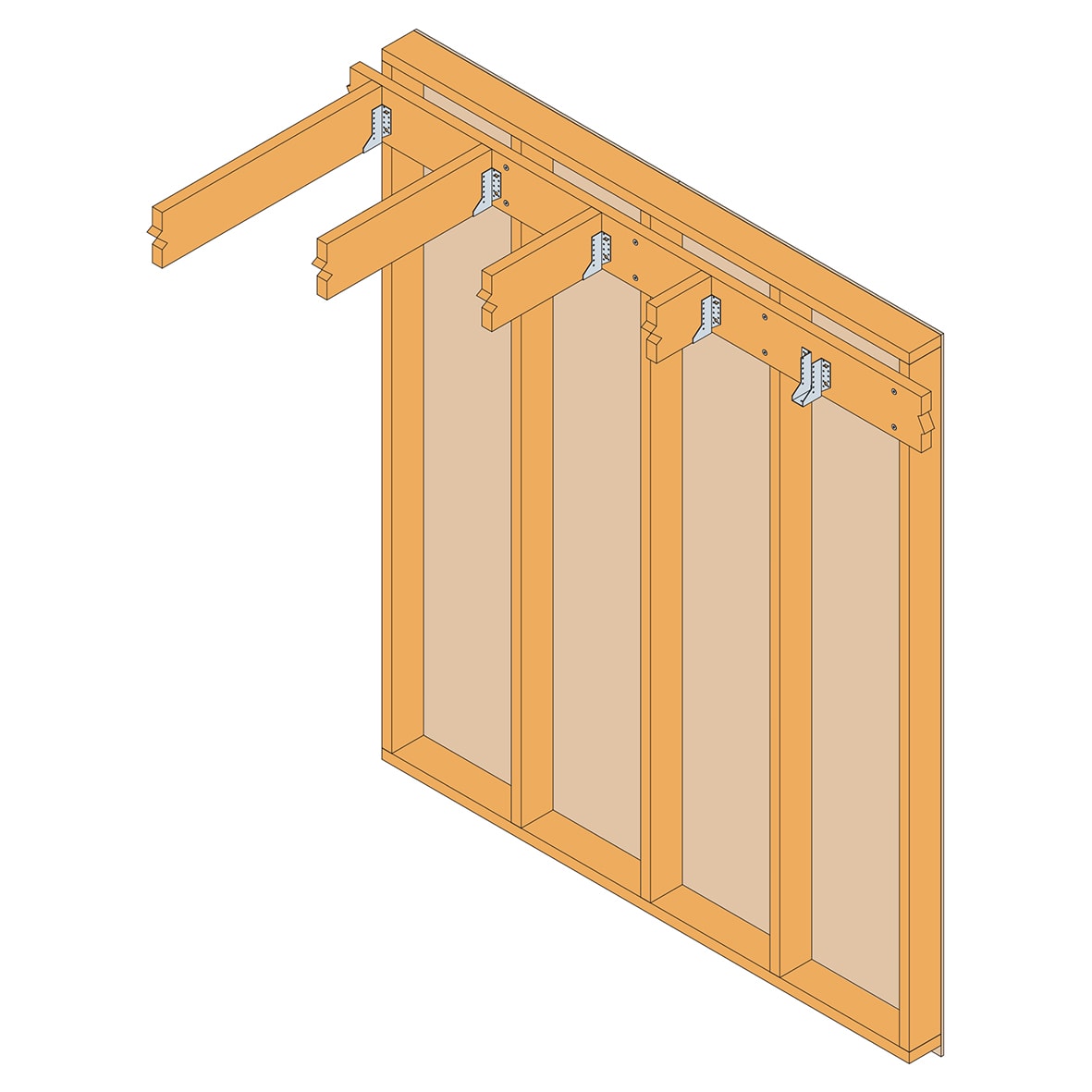

For use with solid sawn timber joists, steel and purlins
Timber bolted capacity to be determined according to the relevant standards
The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member
Made from pre-galvanised mild steel
Quick and simple installation - hangers are nailed using square twist nails but have bolt holes for 12mm fasteners into the face
For use with solid sawn timber joists, steel and purlins
Timber bolted capacity to be determined according to the relevant standards
The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member
Made from pre-galvanised mild steel
Product Specifications
| CE Rated | CE Rated |
| Duty | Heavy Duty |
| Finish | Galvanised |
| Height (mm) | 212.5mm |
| Material | Mild Steel |
| Option | Face Fixed U |
| Pack Quantity | 1 |
| Size (mm) | 212.5 x 75 x 2mm |
| Type | Joist Hanger |
| Width (mm) | 75mm |
| Thickness (mm) | 2mm |
| Brand | Simpson Strong Tie |
| Guarantee | 5 Years |
