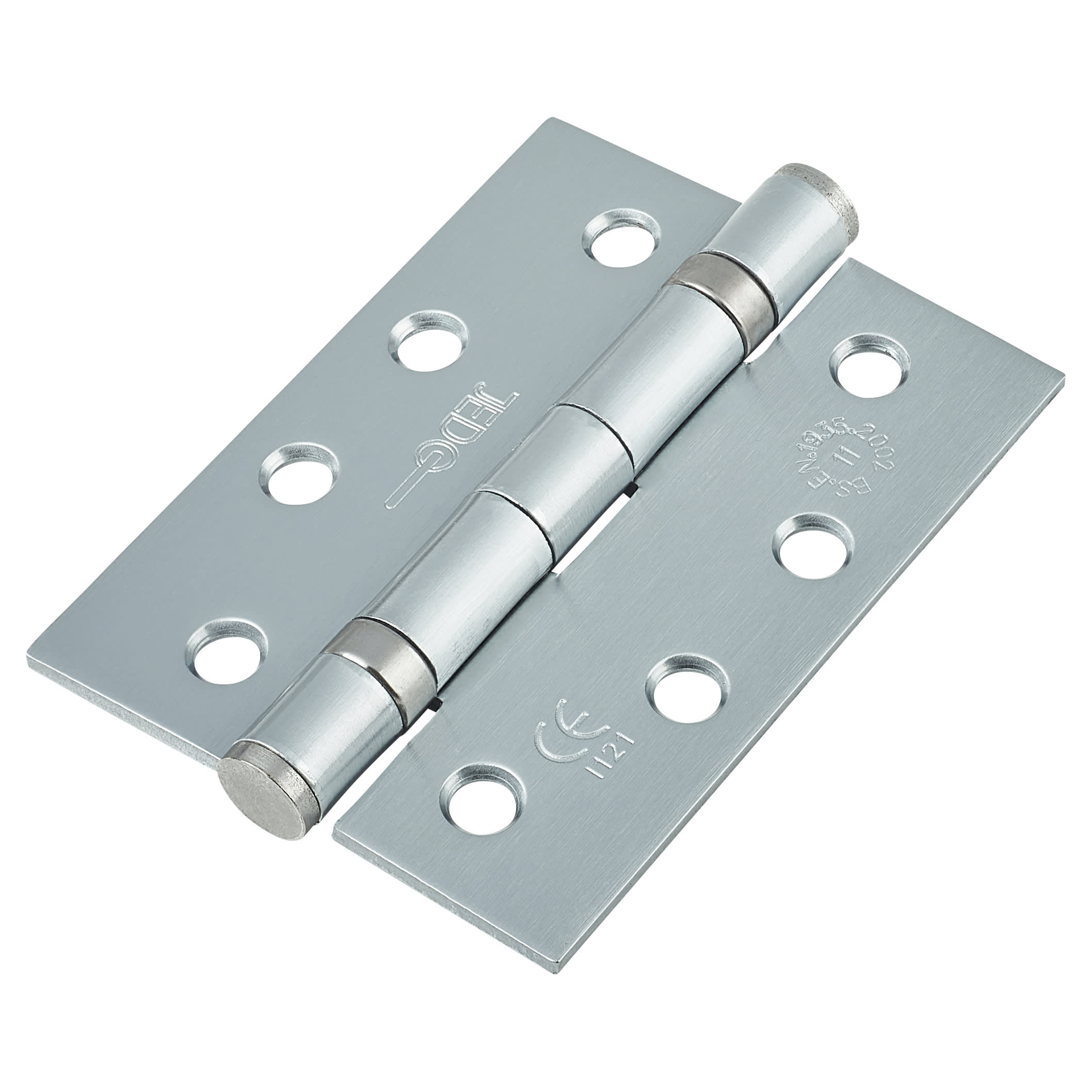

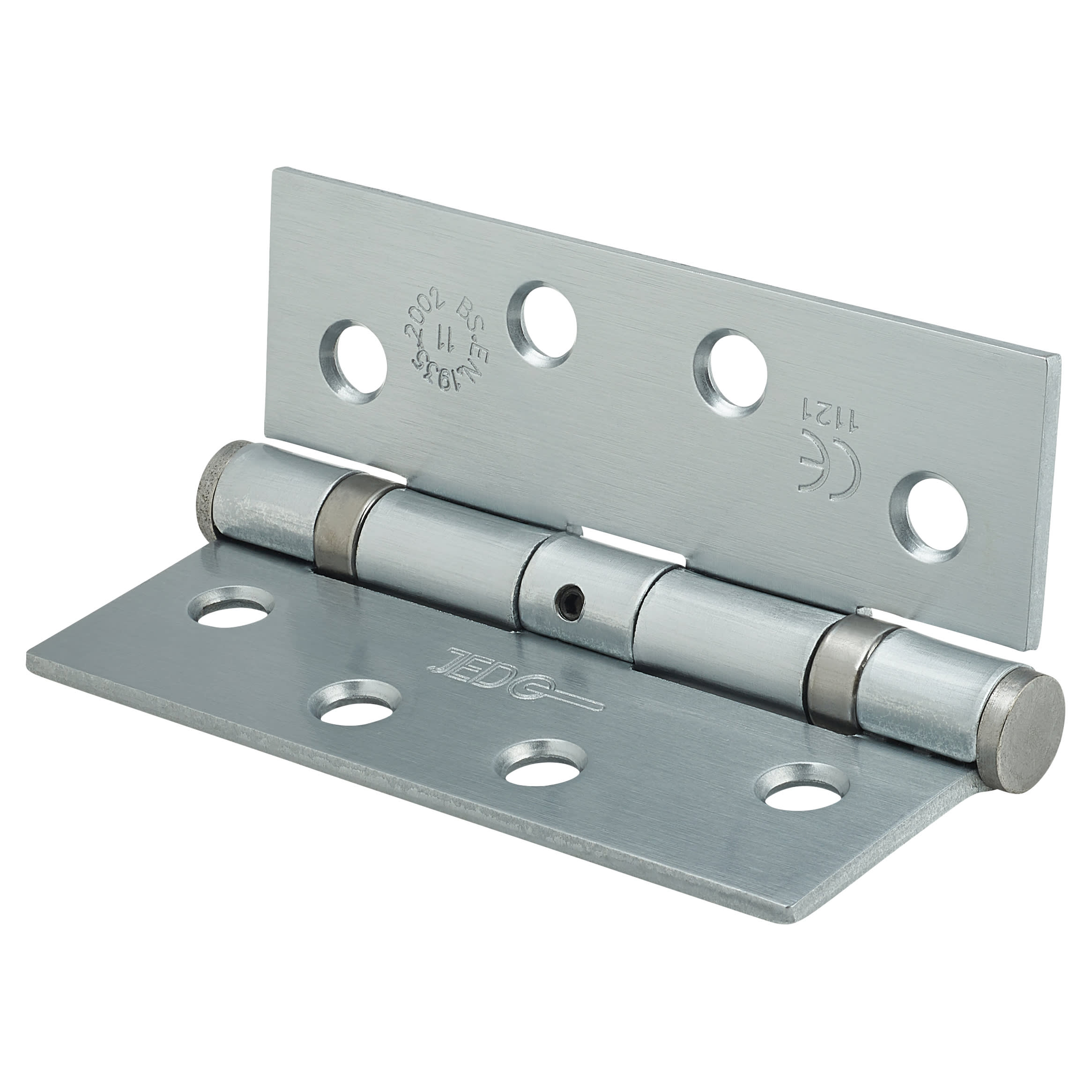

Twin Ball Bearing Grade 11 Butt Fire Door Hinge - 102 x 76 x 2.7mm - Satin Chrome - Pair - Mild Steel
Product Code: 496493P
Twin Ball Bearing Grade 11 Butt Fire Door Hinge - 102 x 76 x 2.7mm - Satin Chrome - Pair - Mild Steel
Product Code: 496493P
22,993 In stock
£4.39
Ex. VAT: £3.66
This product is part of a range with 5 options. Select an option to filter, then choose the matching variant.
- Products Description
- Technical Specifications
A budget steel fire door hinge with twin ball bearings for interior fire doors up to 80kg weight
As with all fire door hinges, hang doors on 3 hinges and use intumescent pads to meet the exact requirements for the fire door rating
Size 102 x 76 x 2.7mm
Suitable for doors up to 80kg
Light duty - for low use public areas
Suitable for interior doors
NOTE: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
For interior use
30 minute fire rating
BS EN Grade 11
All our fire door hinges are CE marked
Note: for heavier doors, exterior doors and doors prone to damp such as kitchens and bathrooms, we recommend using solid stainless steel hinges
As with all fire door hinges, hang doors on 3 hinges and use intumescent pads to meet the exact requirements for the fire door rating
Size 102 x 76 x 2.7mm
Suitable for doors up to 80kg
Light duty - for low use public areas
Suitable for interior doors
NOTE: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
For interior use
30 minute fire rating
BS EN Grade 11
All our fire door hinges are CE marked
Note: for heavier doors, exterior doors and doors prone to damp such as kitchens and bathrooms, we recommend using solid stainless steel hinges
Product Specifications
| British Standard | Yes |
| BSEN Grade | 11 |
| CE Rated | CE Rated |
| Corners | Square |
| Duty | Medium Duty |
| Finish | Satin Chrome |
| Fire Rating | 30 |
| Length (mm) | 102mm |
| Material | Mild Steel |
| Max Door Weight (kg) | 80kg |
| Option | Ball Bearing |
| Pack Quantity | 2 |
| Size (mm) | 102 x 76 x 2.7mm |
| Type | Butt Hinge |
| Finish Group | Chrome |
| Use | Interior |
| Size Range (mm) | 4 Inch/100mm |
| Brand | Jedo |
