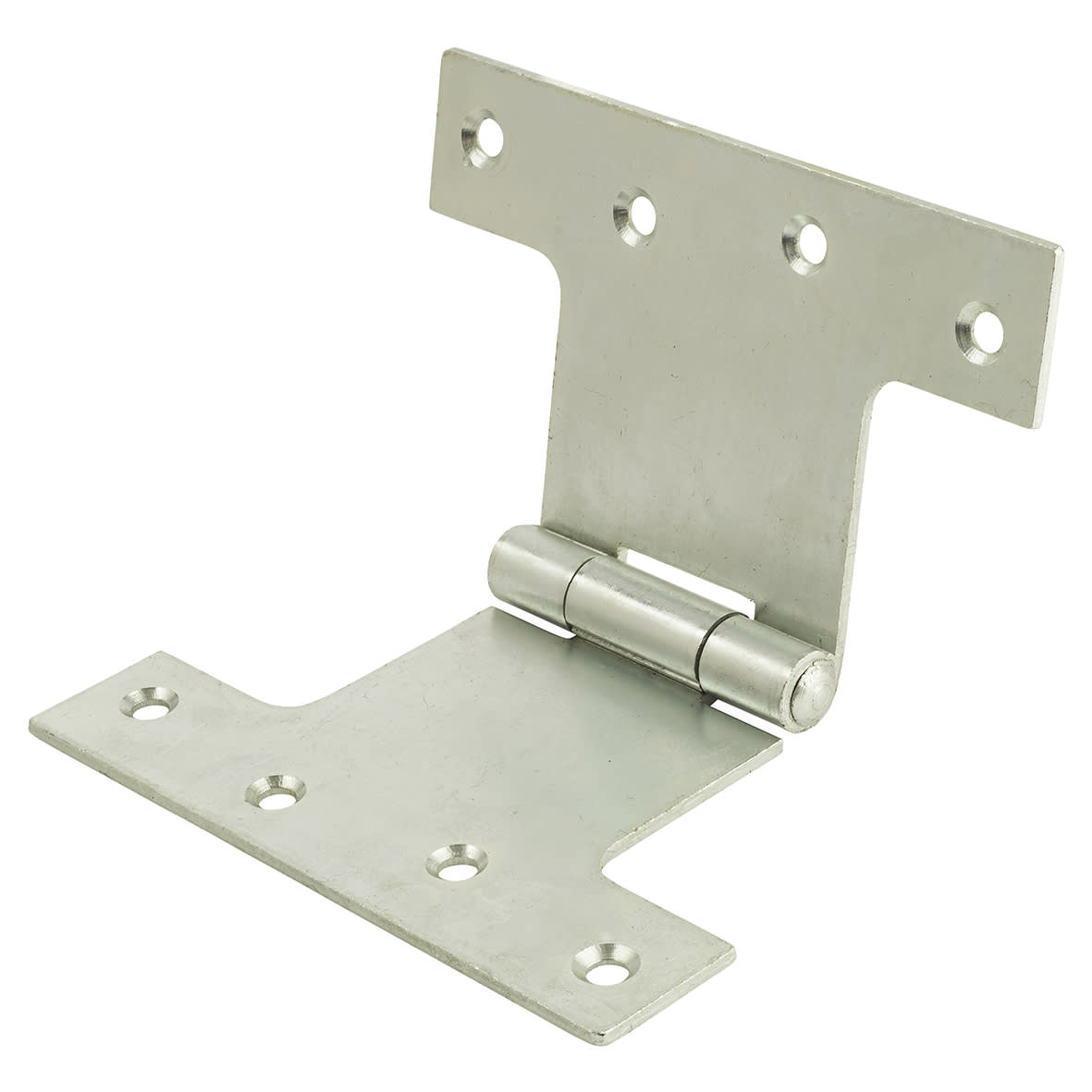

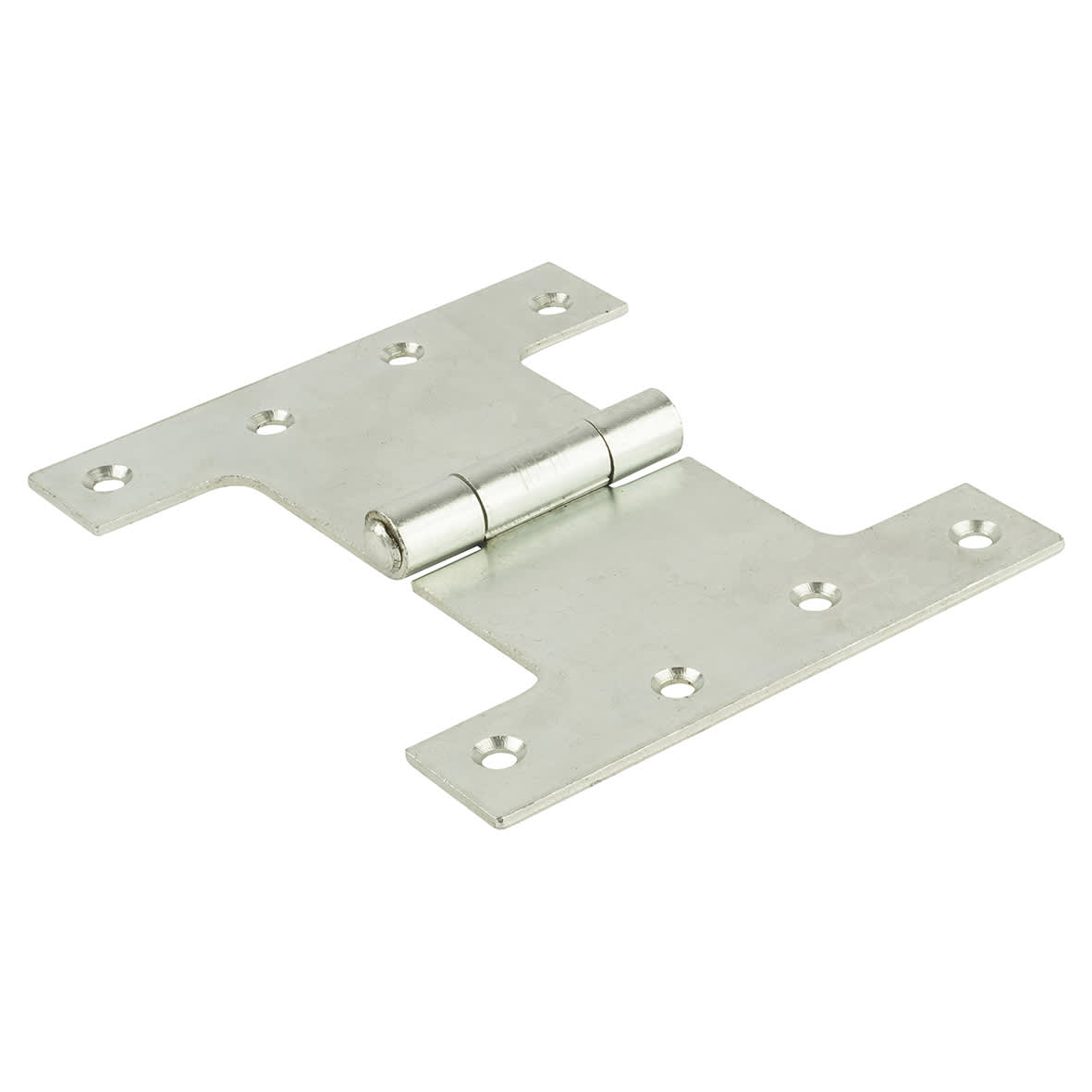

Parliament Hinge - 100 x 76 x 116mm - Zinc Plated - Pair - Mild Steel
Product Code: 173141P
Parliament Hinge - 100 x 76 x 116mm - Zinc Plated - Pair - Mild Steel
Product Code: 173141P
Out of Stock
Back in stock: 03 Jan 2027
£16.20
Ex. VAT: £13.50
This product is part of a range with 14 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 4 | £16.20 | — |
| 5 – 9 | £18.52 | — |
| 10+ | £17.55 | — |
- Products Description
- Technical Specifications
Projects doors clear of architraves, window boards or down pipes
Light Duty - for low use lightweight doors on domestic projects
Zinc plated steel
Suitable for doors up to 24kg
Measurements are leaf height x inside clearance x fully open width
Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doors
For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection
Light Duty - for low use lightweight doors on domestic projects
Zinc plated steel
Suitable for doors up to 24kg
Measurements are leaf height x inside clearance x fully open width
Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doors
For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection
Product Specifications
| Duty | Light Duty |
| Finish | Zinc Plated |
| Material | Mild Steel |
| Max Weight (kg) | 24kg |
| Pack Quantity | 2 |
| Size (mm) | 100 x 76 x 116mm |
| Type | Parliament Hinge |
| Finish Group | Zinc |
| Use | Interior |
| Max Projection (mm) | 76mm |
| Size Range (mm) | 4 Inch/100mm |
| Brand | Unbranded |
