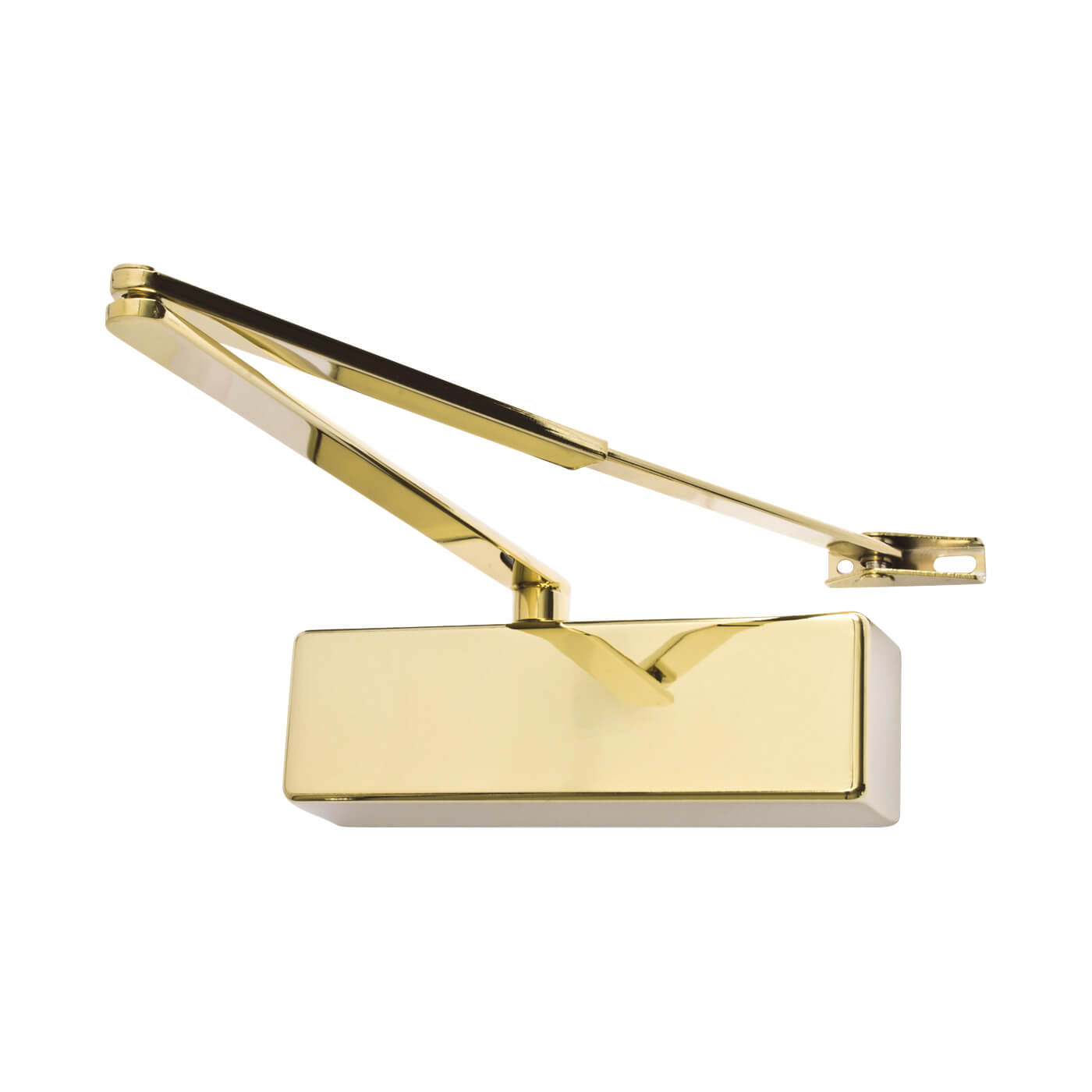

TS.3204 Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - PVD Polished Brass 676754P

TS.3204 Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - PVD Polished Brass - Aluminium

Product Code: 676754P

TS.3204 Overhead Fire Door Closer - Power Size 3 - Push/Pull Mounting - PVD Polished Brass - Aluminium

Product Code: 676754P
Browse more Overhead Door Closers
312 In stock
£48.96
Ex. VAT: £40.80
This product is part of a range with 5 options. Select an option to filter, then choose the matching variant.
  • Products Description
  • Technical Specifications
A power size 3 medium duty fire door closer suitable for use in living accommodation and office corridors
Suitable for interior doors up to 1100mm wide or 80kg max weight
Dual handed and includes a universal fixing pack for push or pull side mounting
Not fire tested in push side application Fig.61
Architectural flat bar arm set
Closing and latch speed adjustments for a perfect closing action
Fire tested to EN1634 Fire Tests and UL
Can be used on timber doorsets with a fire rating up to 120 minutes
Certifire approved CF6018
10 year guarantee

Product Specifications

Arm Finish Polished Brass
Backcheck Without Backcheck
Cam Action No
CE Rated CE Rated
Duty Medium Duty
Finish PVD Polished Brass
Fire Rating 30/60 & 120
Material Aluminium
Max Door Weight (kg) 80kg
Option Fig 66 - Push/Pull Side Mounting
Pack Quantity 1
Range TS5204 / TS3204
Type Closer - Overhead
Hold Open Function Without Hold Open Function
Max Door Width (mm) 1100mm
Delayed Action Without Delayed Action
Power Size EN 3
Secured by Design Secured by Design
Track Arm No
Brand Rutland
Cover With Cover
Guarantee 10 Years
