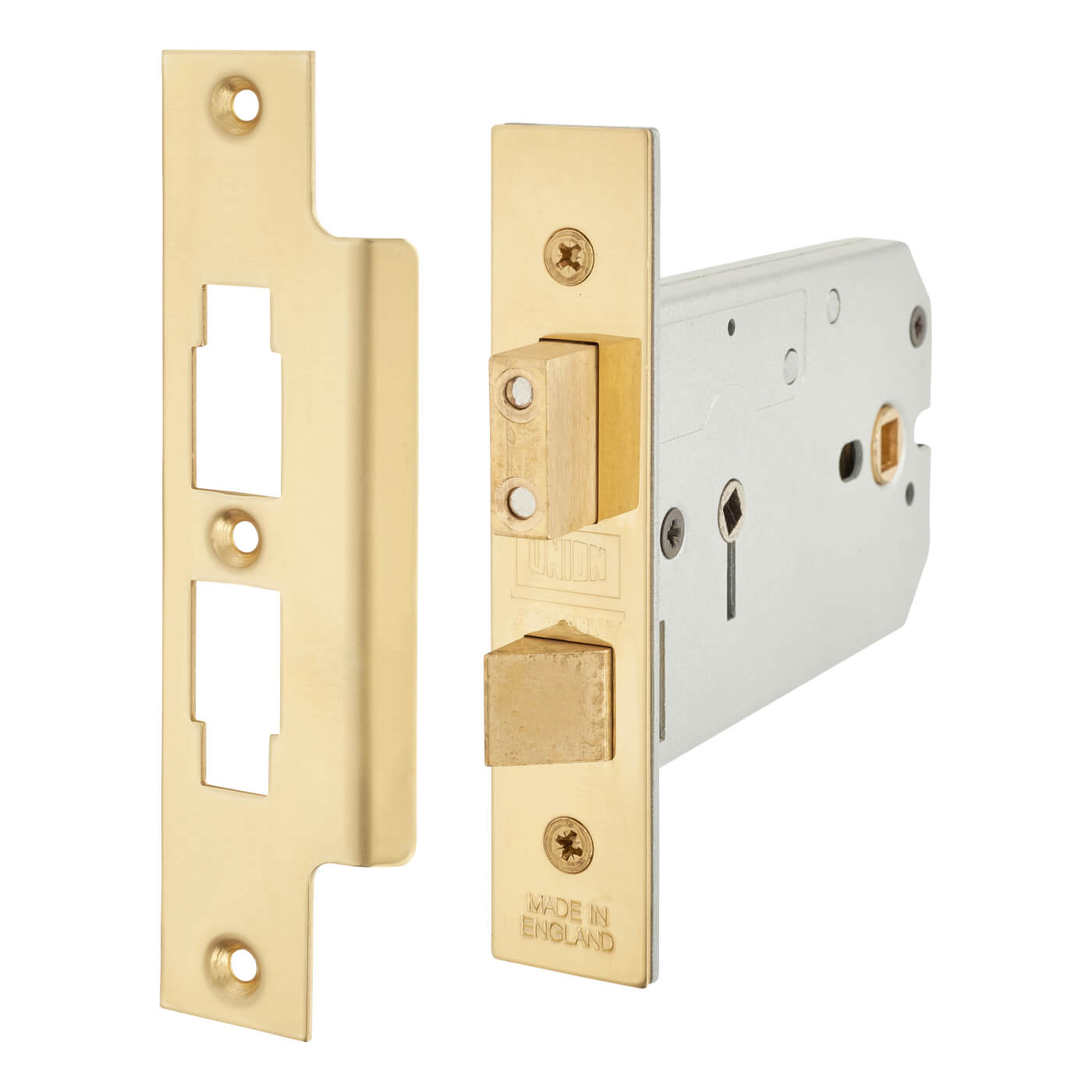

2026 Horizontal Bolt Through Bathroom Lock - 124mm Case - 38-101.5mm Backset - Polished Brass - Solid Brass
Product Code: 760264P
2026 Horizontal Bolt Through Bathroom Lock - 124mm Case - 38-101.5mm Backset - Polished Brass - Solid Brass
Product Code: 760264P
9 In stock
£84.38
Ex. VAT: £70.32
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £84.38 | — |
| 10+ | £86.85 | — |
- Products Description
- Technical Specifications
The Union Architectural range features a cleverly designed double spring mechanism - the first spring powers the spring bolt when the door is closed
The second spring only applies its force to the spindle and consequently the door furniture
The big benefit of this second spring action is that it makes the latch well suited to modern round bar furniture, avoiding the droop you see when an economy has been made in the specification of the latch
Bolt through fixing
Backset to keyway 38mm
Backset to follower 101.5mm
NOTE: Intumescent should be used to ensure adherence to fire regulations
The second spring only applies its force to the spindle and consequently the door furniture
The big benefit of this second spring action is that it makes the latch well suited to modern round bar furniture, avoiding the droop you see when an economy has been made in the specification of the latch
Bolt through fixing
Backset to keyway 38mm
Backset to follower 101.5mm
NOTE: Intumescent should be used to ensure adherence to fire regulations
Product Specifications
| Anti Bump | Not Anti Bump |
| Anti Pick | No |
| Backset (mm) | 38mm |
| Bolt Through Fixing | Bolt Through Fixing |
| British Standard | Yes |
| Case Size (mm) | 124mm |
| CE Rated | No |
| Centres (mm) | 63.5mm |
| Certifire | No |
| Finish | Polished Brass |
| Fire Rating | 30 & 60 |
| Material | Solid Brass |
| Option | Standard |
| Pack Quantity | 1 |
| Size (mm) | 124 x 70mm |
| Type | Horizontal Bathroom Lock |
| Anti Drill | No |
| Finish Group | Brass |
| Profile | Square |
| Keyed Alike | Not Keyed Alike |
| Standards | BS EN 1634-1 |
| Anti Pull | No |
| Secured by Design | No |
| UKCA Approved | No |
| Brand | Union |
