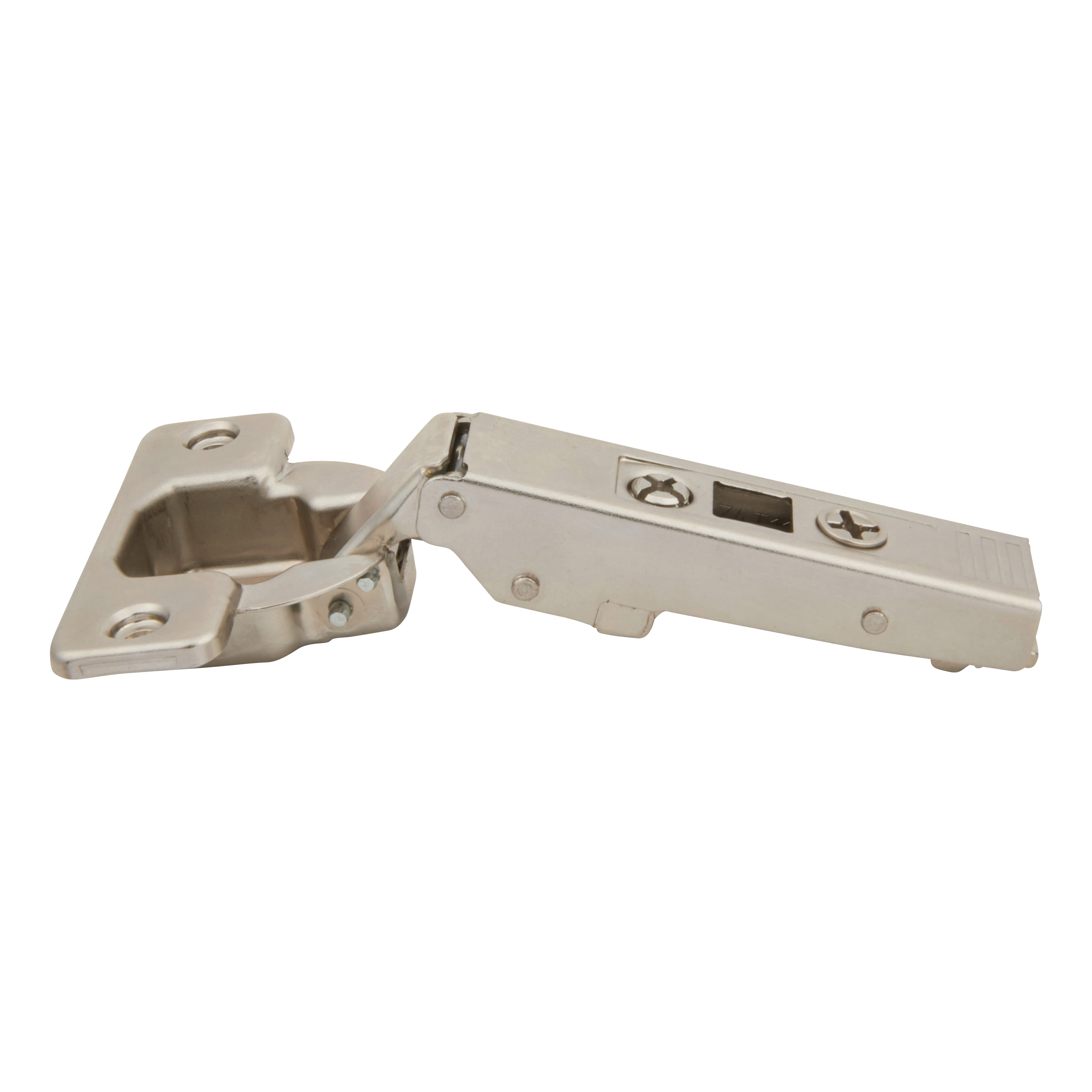

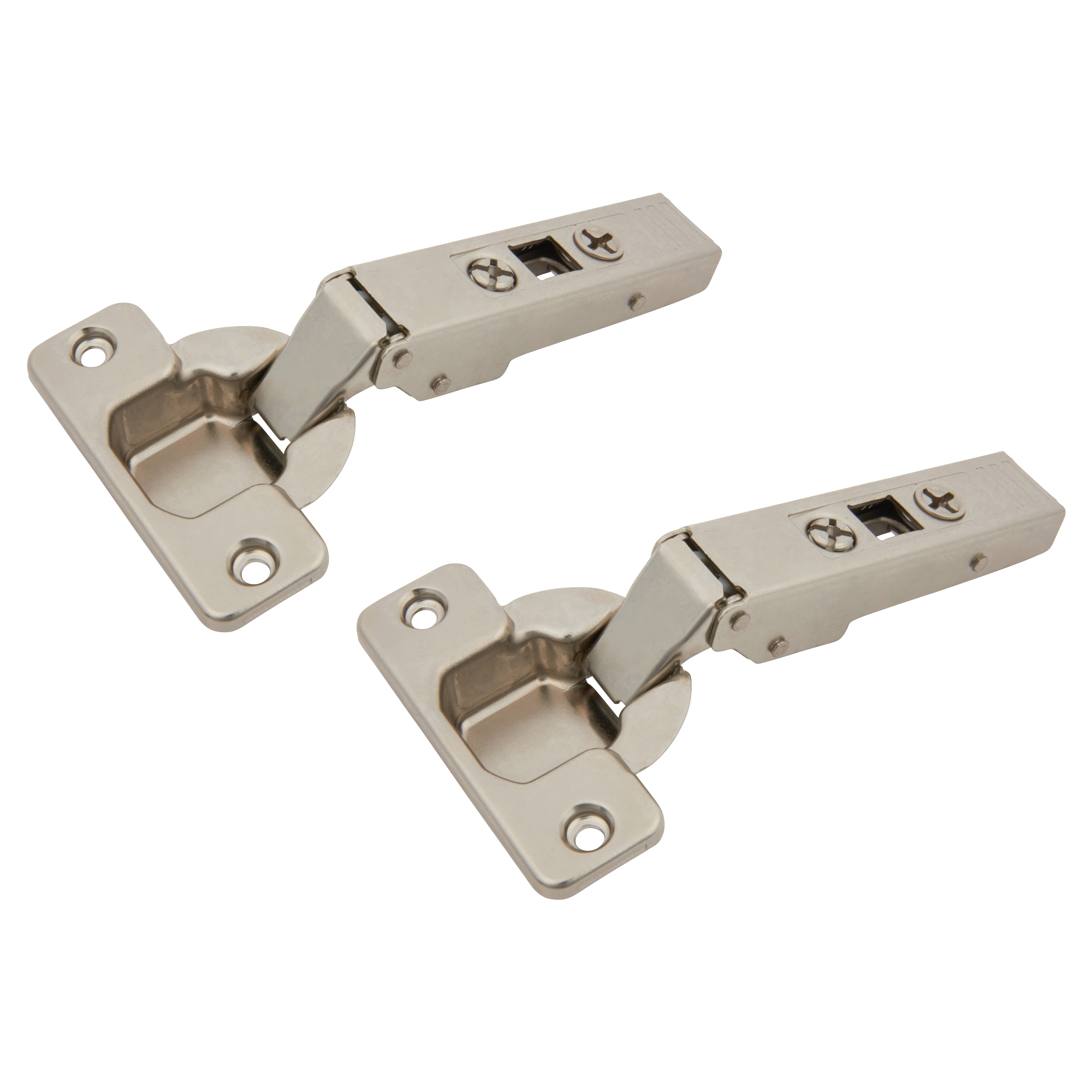

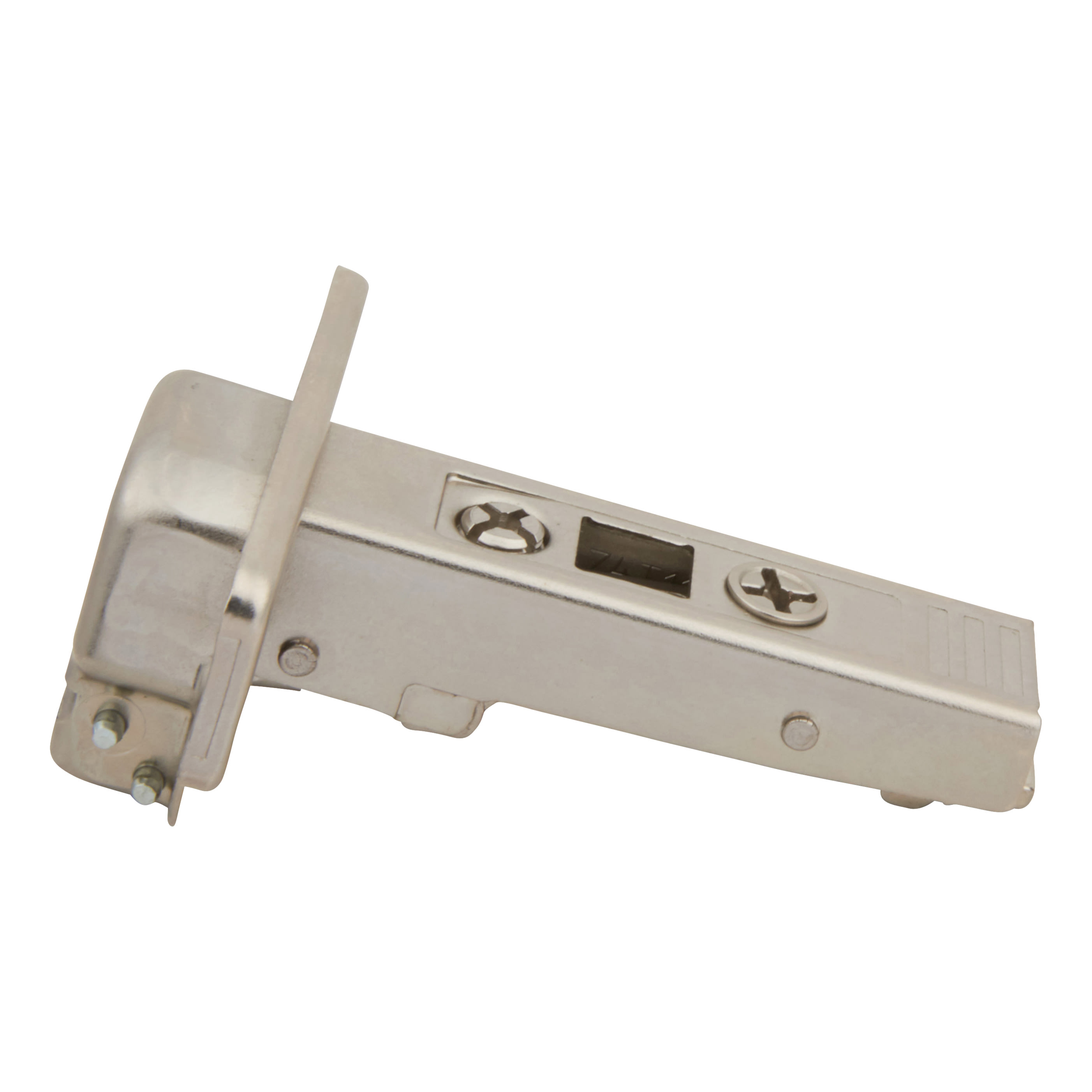

CLIP Top Cabinet Hinge - 107° - Sprung - Overlay - Zinc Plated - Pair - Mild Steel
Product Code: 289974P
CLIP Top Cabinet Hinge - 107° - Sprung - Overlay - Zinc Plated - Pair - Mild Steel
Product Code: 289974P
13 In stock
£7.20
Ex. VAT: £6.00
This product is part of a range with 4 options. Select an option to filter, then choose the matching variant.
| Quantity | Unit Price (inc. VAT) | You Save |
|---|---|---|
| 1 – 9 | £7.20 | — |
| 10 – 19 | £7.41 | — |
| 20+ | £7.02 | Save 3% |
- Products Description
- Technical Specifications
Blum Part Code: 75T1550
Ideal for use on kitchen, bathroom, & household cabinets
Overlay - Where the cabinet door fully overlays the carcass
Sprung - pulls the door fully closed without the need for a catch
CLIP Top - Is a concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed
Diameter: 35mm
Arm cover plates & soft close mechanism to be ordered separately
Mounting plates must be ordered separately to suit your application
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Ideal for use on kitchen, bathroom, & household cabinets
Overlay - Where the cabinet door fully overlays the carcass
Sprung - pulls the door fully closed without the need for a catch
CLIP Top - Is a concealed hinges for cabinet doors, meaning they cannot be seen when the door is closed
Diameter: 35mm
Arm cover plates & soft close mechanism to be ordered separately
Mounting plates must be ordered separately to suit your application
Screws not supplied - fix using 3.5mm & 4mm diameter woodscrews
Lifetime guarantee
Product Specifications
| Application | Overlay |
| Depth Adjustment (mm) | -1.5mm |
| Finish | Zinc Plated |
| Fixing Method | Clip On |
| Material | Mild Steel |
| Option | Hinges Only |
| Pack Quantity | 2 |
| Range | CLIP top |
| Suit Door Thickness (mm) | 15-24mm |
| Type | Concealed Kitchen Cabinet Hinge |
| Soft Close | No |
| Sprung | Sprung |
| Opening Angle | 107° |
| Brand | Blum |
| Guarantee | Lifetime Years |
