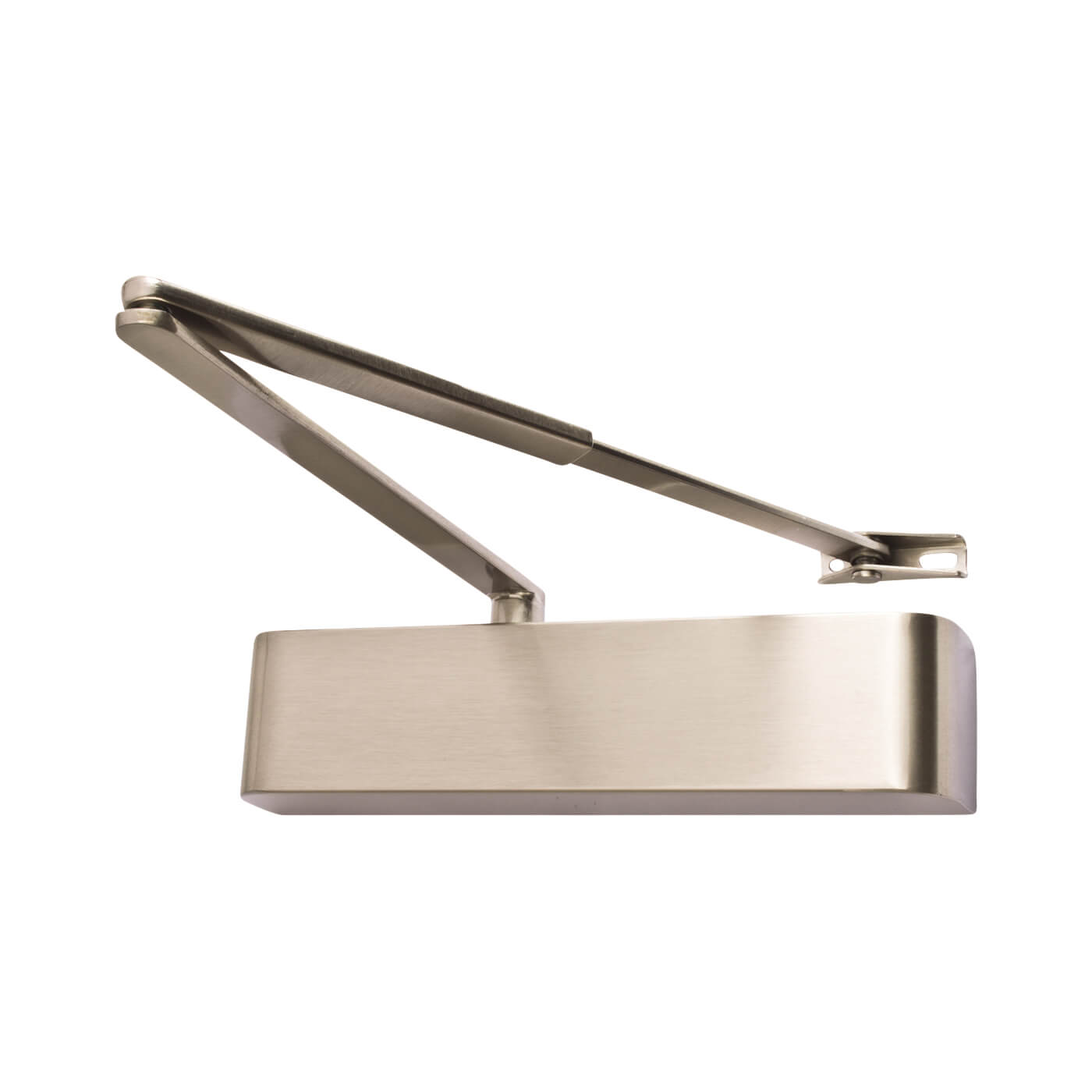

TS.5204 Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Satin Nickel 152494P

TS.5204 Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Satin Nickel - Aluminium

Product Code: 152494P

TS.5204 Overhead Fire Door Closer - Power Size 2-4 - Push/Pull Mounting - Satin Nickel - Aluminium

Product Code: 152494P
Browse more Overhead Door Closers
165 In stock
£64.80
Ex. VAT: £54.00
This product is part of a range with 5 options. Select an option to filter, then choose the matching variant.
  • Products Description
  • Technical Specifications
A power size 2-4 medium duty fire door closer ideal for high usage interior doors up to 1100mm or 80kg max
Backcheck as standard - ideal for high traffic doors as it offers resistance when the door is opened with excessive force, preventing damage to doors

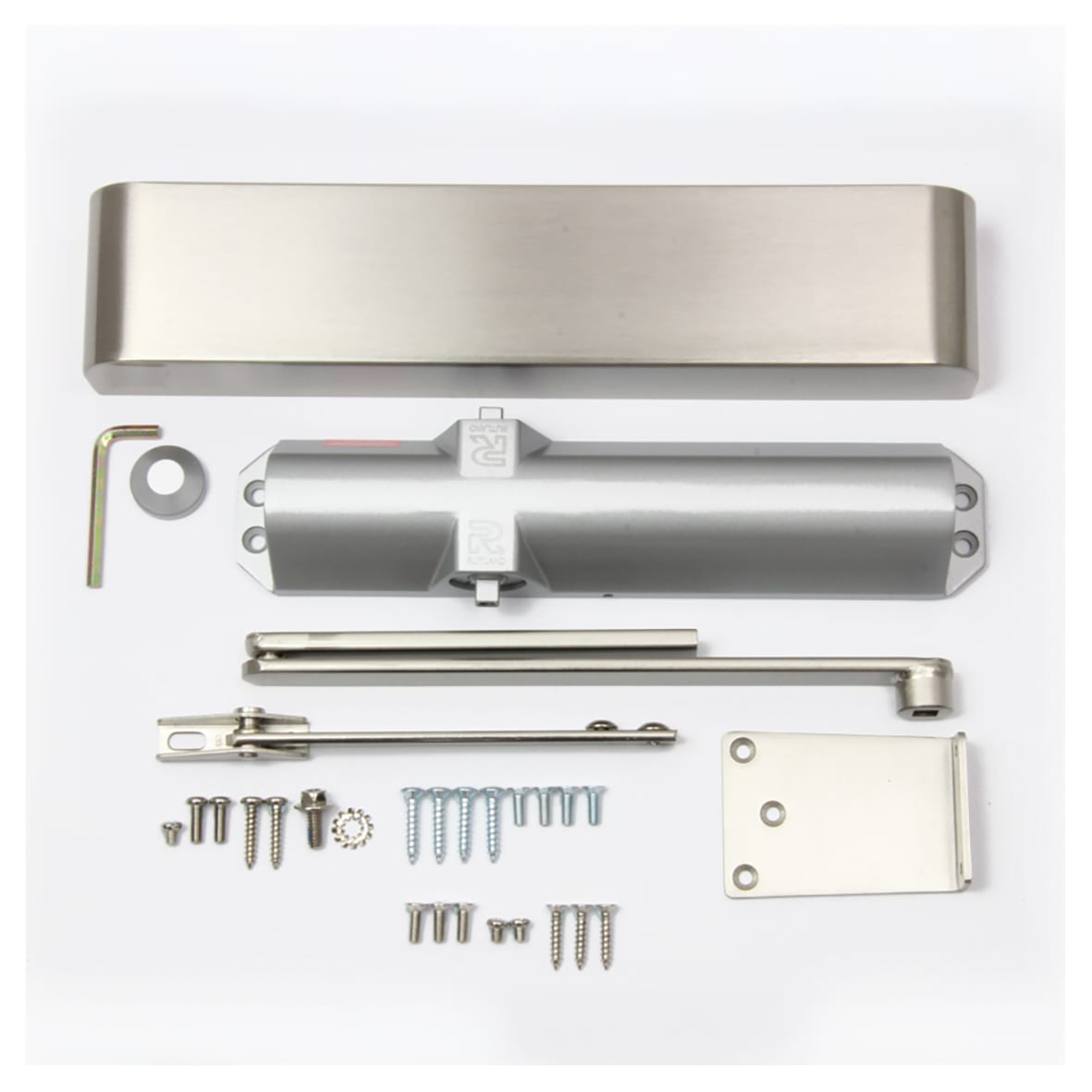

Dual handed and universal fixing pack for push or pull side mounting
Closing and latch speed adjustments for a perfect closing action
Can be used on timber doorsets with a fire rating up to 120 minutes
Only fire tested for use in standard Fig.1 application
Tested to BS EN1154 and BS EN 1634-1.
Certifire approved CF6018
10 year guarantee

Product Specifications

Arm Finish Satin Nickel
Backcheck With Backcheck
Cam Action No
Duty Medium Duty
Finish Satin Nickel
Fire Rating 30/60 & 120
Material Aluminium
Max Door Weight (kg) 80kg
Option Fig 66 - Push/Pull Side Mounting
Pack Quantity 1
Range TS5204 / TS3204
Type Closer - Overhead
Hold Open Function Without Hold Open Function
Max Door Width (mm) 1100mm
Delayed Action Without Delayed Action
Power Size EN 2-4
Secured by Design Secured by Design
UKCA Approved Yes
Track Arm No
Brand Rutland
Cover With Cover
Guarantee 10 Years
