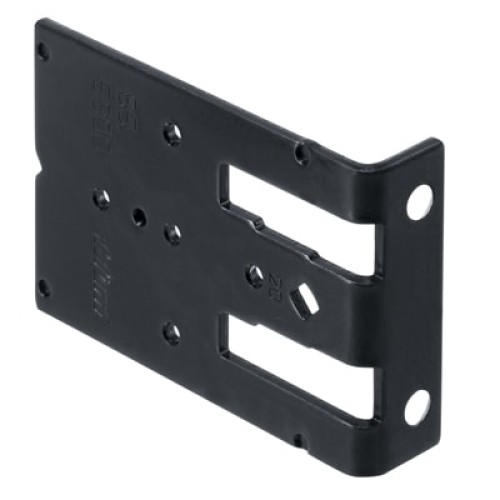

Blum Cabinet Mounting Plate Drilling Jig

For pre-drilling the fixing positions for mounting templates
Suitable for mounting plates to be used with CLIP Top, CLIP & modul hinges
Suitable for inline plates with 20mm set back or cruciform mounting plates with 37mm
Can be used to drill for BLUMOTION/TIP-ON adaptor plates
Handheld
Not suitable for die-cast horizontal plates (22mm)
Not used for marking or placing the 35mm hole required

Specifications

Option: Mounting Plate Jig
Type: Jig
Video ID: 8685411
Range: CLIP top BLUMOTION
Material: Mild Steel
Pack Quantity: 1

Overview

• Blum Cabinet Mounting Plate Drilling Jig
• For pre-drilling the fixing positions for mounting templates
• Suitable for mounting plates to be used with CLIP Top, CLIP & modul hinges
• Suitable for inline plates with 20mm set back or cruciform mounting plates with 37mm
• Can be used to drill for BLUMOTION/TIP-ON adaptor plates
• Handheld
• Not suitable for die-cast horizontal plates (22mm)
• Not used for marking or placing the 35mm hole required
