ECLISSE Single Fire Pocket Door Kit - FD30 - 100mm Finished Wall Thickness - 610 x 1981mm Door Size
- Brand: ECLISSE
- Product Code: 914718P
- Availability: In Stock
£863.88
inc. VAT
$32a
Specifications
Door Panel Size W x H (mm): 610 x 1981
Finished Wall Thickness (mm): 100
Fire Rating: 30
Max Door Weight (kg): 80
Max Passage Size W x H (mm): 563 x 1951
No of Doors: 1
Option: Single Pocket Door Kit
Overall Dimensions W x H (mm): 1279 x 2056
Suit Door Thickness (mm): 44
Type: Single Pocket Door Kit
Video ID: 1000523
Material: Galvanised Steel
Pack Quantity: 1
Overview
• ECLISSE Single Fire Pocket Door Kit - FD30 - 100mm Finished Wall Thickness - 610 x 1981mm Door Size

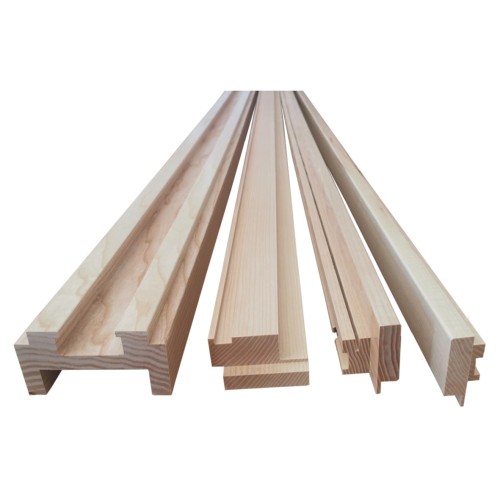

• The FD30 fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
• Fully tested and approved by International Fire Consultants PAR/10057/01 Revision F
• Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
• Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate.
• Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours
• Requires 15 x 4mm Intumescent strips, supplied with jambs

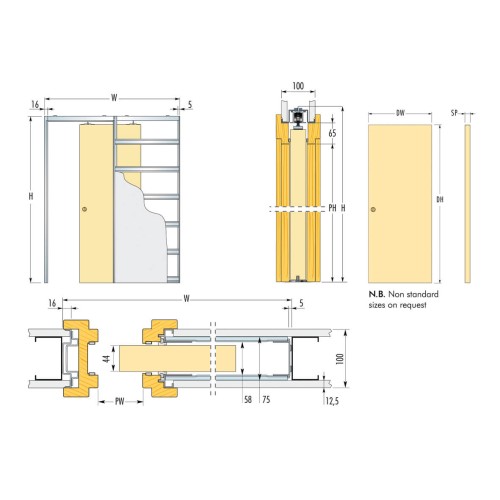

• Frame is 75mm and requires one layer of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 100mm
• Runners are tested to 100,000 cycles, approximately 25 years on average use
• Kit includes: Pocket door frame with maintenance free track and runners and a fire rated jamb/architrave with white intumescent strips
• Max door panel weight: Up to 100Kg (unless fitting the ECLISSE self-closing device for single pocket doors then the maximum door weight is 40kg).
• Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
• To be installed at finished floor level
• 15 year guarantee
