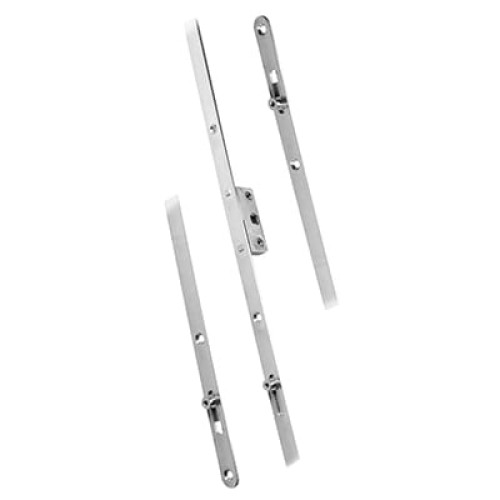

Inline Espagnolette uPVC Multipoint Window Lock - 1000mm Length - 22mm Backset - 8mm Cam

16mm steel faceplate
7mm spindle drive
16mm cam travel
Zinc die cast gearbox
Supplied without keeps
Suitable for timber and uPVC
3 point mushroom cam

Specifications

Application: uPVC & Timber
Backset (mm): 22
Bottom Bolt 2 (mm): 150
Bottom Bolt 3 (mm): 293mm
Cam (mm): 8
Faceplate (mm): 16
Keeps Included: No
Locking Points: 3
Secured by Design: No
Spindle: 7mm
Top Bolt 1 (mm): 443
Type: Inline Espagnolette
Length (mm): 1000
Bottom Bolt 1 (mm): 443
Material: Zinc
Pack Quantity: 1

Overview

• Inline Espagnolette uPVC Multipoint Window Lock - 1000mm Length - 22mm Backset - 8mm Cam
• 16mm steel faceplate
• 7mm spindle drive
• 16mm cam travel
• Zinc die cast gearbox
• Supplied without keeps
• Suitable for timber and uPVC
• 3 point mushroom cam
