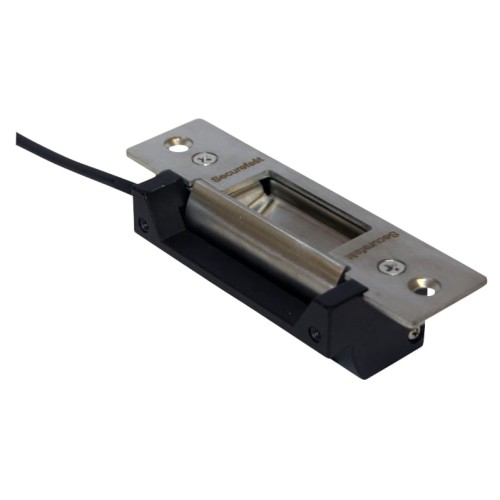

Deedlock ANSI Electric Strike Door Release - Fail Locked/Fail Unlocked - 12/24v AC/DC - Unmonitored

Each electric release is supplied as fail secure operation but can easily be changed to fail safe by the simple removal of a screw
1000lbs Holding Force (4448N / 434kgf)
Use code 441786 for suitable intumescent pack
Fire rated for use on 60 min timber doors
(Report with GE Door Manufacturer)
Performance tested to EN14846
CE marked and EMC tested
Easy installation
12/24V AC / DC on site settable
AC Fail Secure only selectable
DC Fail Safe/Fail Secure selectable
Long and short faceplates are included
Easy replacement for most leading brand
ANSI electric releases
Supplied with 250mm of cable

Specifications

Depth (mm): 32.5
Holding Force (kg): 453
Length (mm): 124
Option: Unmonitored
Supply Voltage (VAC)/VDC: 12/24
Type: Electric Strike Mortice Released
Width (mm): 32
Material: 304 Stainless Steel
Pack Quantity: 1

Overview

• Deedlock ANSI Electric Strike Door Release - Fail Locked/Fail Unlocked - 12/24v AC/DC - Unmonitored
• Each electric release is supplied as fail secure operation but can easily be changed to fail safe by the simple removal of a screw
• 1000lbs Holding Force (4448N / 434kgf)
• Use code 441786 for suitable intumescent pack
• Fire rated for use on 60 min timber doors
• (Report with GE Door Manufacturer)
• Performance tested to EN14846
• CE marked and EMC tested
• Easy installation
• 12/24V AC / DC on site settable
• AC Fail Secure only selectable
• DC Fail Safe/Fail Secure selectable
• Long and short faceplates are included
• Easy replacement for most leading brand
• ANSI electric releases
• Supplied with 250mm of cable
