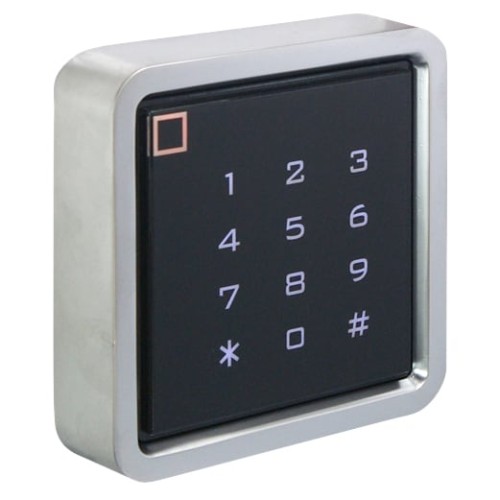

Deedlock APX14 Access Control Door Entry Keypad - 85 x 85 x 20mm

With satin chrome housing design and ease of installation the APX-14 entry keypad is ideal for internal and external applications
Supports 4 digit PIN code & fob
Capacity up to 2000 users
Touch keypad
IP65 rating - waterproof
Backlit keypad for use in low light conditions
Adjustable lock relay 1-99 seconds
Wiegand output for networked system
Lock output 3A max
12V DC power inputs

Specifications

Depth (mm): 20
Length (mm): 85
Size (mm): 85 x 85 x 20
Supply Voltage (VDC): 12
Type: Door Entry Kit
Width (mm): 85
Material: Zinc
Pack Quantity: 1
Option: Door Entry Keypad

Overview

• Deedlock APX14 Access Control Door Entry Keypad - 85 x 85 x 20mm
• With satin chrome housing design and ease of installation the APX-14 entry keypad is ideal for internal and external applications
• Supports 4 digit PIN code & fob
• Capacity up to 2000 users
• Touch keypad
• IP65 rating - waterproof
• Backlit keypad for use in low light conditions
• Adjustable lock relay 1-99 seconds
• Wiegand output for networked system
• Lock output 3A max
• 12V DC power inputs
