Exel Twin Ball Bearing Grade 13 Butt Fire Door Hinge - 100 x 75 x 3mm - 201 Sat Stainless - Pair

Fire door hinge suitable for fire doors up to 160kg
60 minute fire rating
BS EN Grade 13
Grade 201 stainless steel
Heavy duty - for high use fire doors in public buildings
For interior use
All our fire door hinges are CE marked
NOTE: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size

Specifications

BSEN Grade: 13
British Standard: Yes
CE Rated: Yes
Corners: Square
Duty: Heavy
Finish: Satin Stainless Steel
Finish Group: Stainless Steel
Fire Rating: 60
Max Door Weight (kg): 160
Size Range (mm): 4 Inch/100mm

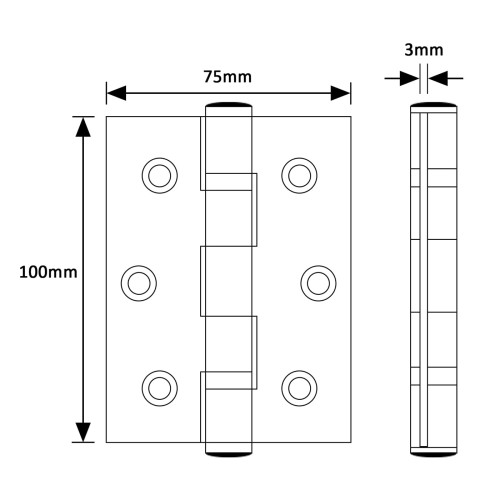

Size (mm): 100 x 75 x 3
Steel Rating: 201
Type: Butt Hinge
Use: Interior
UKCA Approved: Yes
Pack Quantity: 2
Material: 201 Stainless Steel
Option: Ball Bearing
Length (mm): 100
