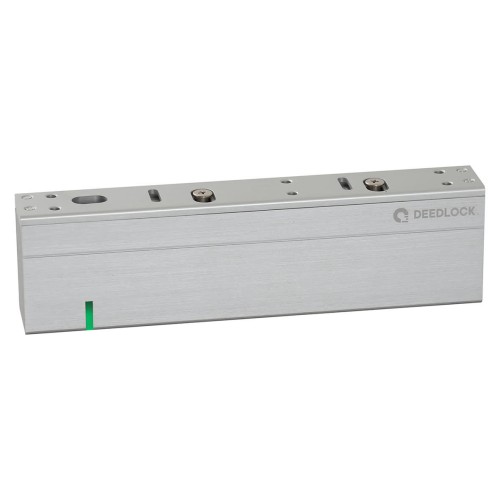

Deedlock Slimline Electromagnetic Single Door Lock - 280kg Holding Force - 12/24v DC - Unmonitored

Slimline maglock that's suitable for internal single doors, inward or outward opening
Lower profile design makes this ideal for doors with narrow frames
Unmonitored - no external sensors to confirm whether magnet is locked or unlocked
For medium usage traffic applications such as small offices or shops
Pull weight up to 250kg
CE Marked
Low maintenance with no moving parts
Safety bolts prevent the magnet from detaching from the bracket itself
Supplied with a kick off pin in the armature plate to overcome any residual magnetism when the power to the magnet is turned off
Suitable for inward or outward opening doors - choose L bracket for outward opening, and Z and L bracket for inward opening
Certified to TS010 - Grade 2 - Minimum Holding Force 2000 N (450 lbf) (204 kgf)
Size: 250 x 50 x 27mm

Specifications

Depth (mm): 27
Holding Force (kg): 280
Length (mm): 250
Material: Aluminium
Option: Lock - Single Doors Unmonitored
Pack Quantity: 1
Size (mm): 250 x 50 x 27
Supply Voltage (VDC): 12/24
Type: Electromagnetic Lock
Width (mm): 50

Overview

• Deedlock Slimline Electromagnetic Single Door Lock - 280kg Holding Force - 12/24v DC - Unmonitored
• Slimline maglock that's suitable for internal single doors, inward or outward opening
• Lower profile design makes this ideal for doors with narrow frames
• Unmonitored - no external sensors to confirm whether magnet is locked or unlocked
• For medium usage traffic applications such as small offices or shops
• Pull weight up to 250kg
• CE Marked
• Low maintenance with no moving parts
• Safety bolts prevent the magnet from detaching from the bracket itself
• Supplied with a kick off pin in the armature plate to overcome any residual magnetism when the power to the magnet is turned off
• Suitable for inward or outward opening doors - choose L bracket for outward opening, and Z and L bracket for inward opening
• Certified to TS010 - Grade 2 - Minimum Holding Force 2000 N (450 lbf) (204 kgf)
• Size: 250 x 50 x 27mm
