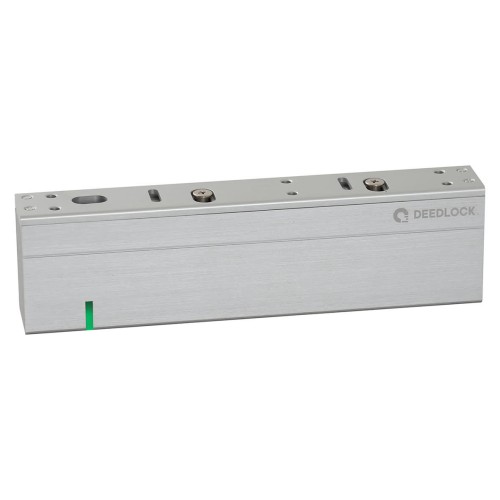

Deedlock Standard Electromagnetic Single Door Lock - 500kg Holding Force - 12/24v DC - Monitored

Electromagnetic lock that offers a high level of security on interior or entrance single doors
Ideal for secure areas or perimeter doors on offices or public buildings
Monitored - can be connected to a light or sounder to let you know when the door is open or closed
Holding force up to 500kg - ideal for heavier doors
Safety bolts prevent the magnet from detaching from the bracket itself
CE Marked
Low maintenance with no moving parts
Dual voltage 12/24V DC (selectable on site)
Supplied with a kick off pin in the armature plate to overcome any residual magnetism when the power to the magnet is turned off
Suitable for double doors, inward or outward opening - choose L bracket for outward opening, and Z and L bracket for inward opening
Certified to TS010 - Grade 3 - Minimum Holding Force 3000N (675lbf) (306 kgf)
Size: 265 x 73 x 41mm

Specifications

Depth (mm): 41
Holding Force (kg): 500
Length (mm): 265
Material: Aluminium
Option: Lock - Single Doors Monitored
Pack Quantity: 1
Size (mm): 265 x 73 x 41
Supply Voltage (VDC): 12/24
Type: Electromagnetic Lock
Width (mm): 73

Overview

• Deedlock Standard Electromagnetic Single Door Lock - 500kg Holding Force - 12/24v DC - Monitored
• Electromagnetic lock that offers a high level of security on interior or entrance single doors
• Ideal for secure areas or perimeter doors on offices or public buildings
• Monitored - can be connected to a light or sounder to let you know when the door is open or closed
• Holding force up to 500kg - ideal for heavier doors
• Safety bolts prevent the magnet from detaching from the bracket itself
• CE Marked
• Low maintenance with no moving parts
• Dual voltage 12/24V DC (selectable on site)
• Supplied with a kick off pin in the armature plate to overcome any residual magnetism when the power to the magnet is turned off
• Suitable for double doors, inward or outward opening - choose L bracket for outward opening, and Z and L bracket for inward opening
• Certified to TS010 - Grade 3 - Minimum Holding Force 3000N (675lbf) (306 kgf)
• Size: 265 x 73 x 41mm
